Electrical Diagrams

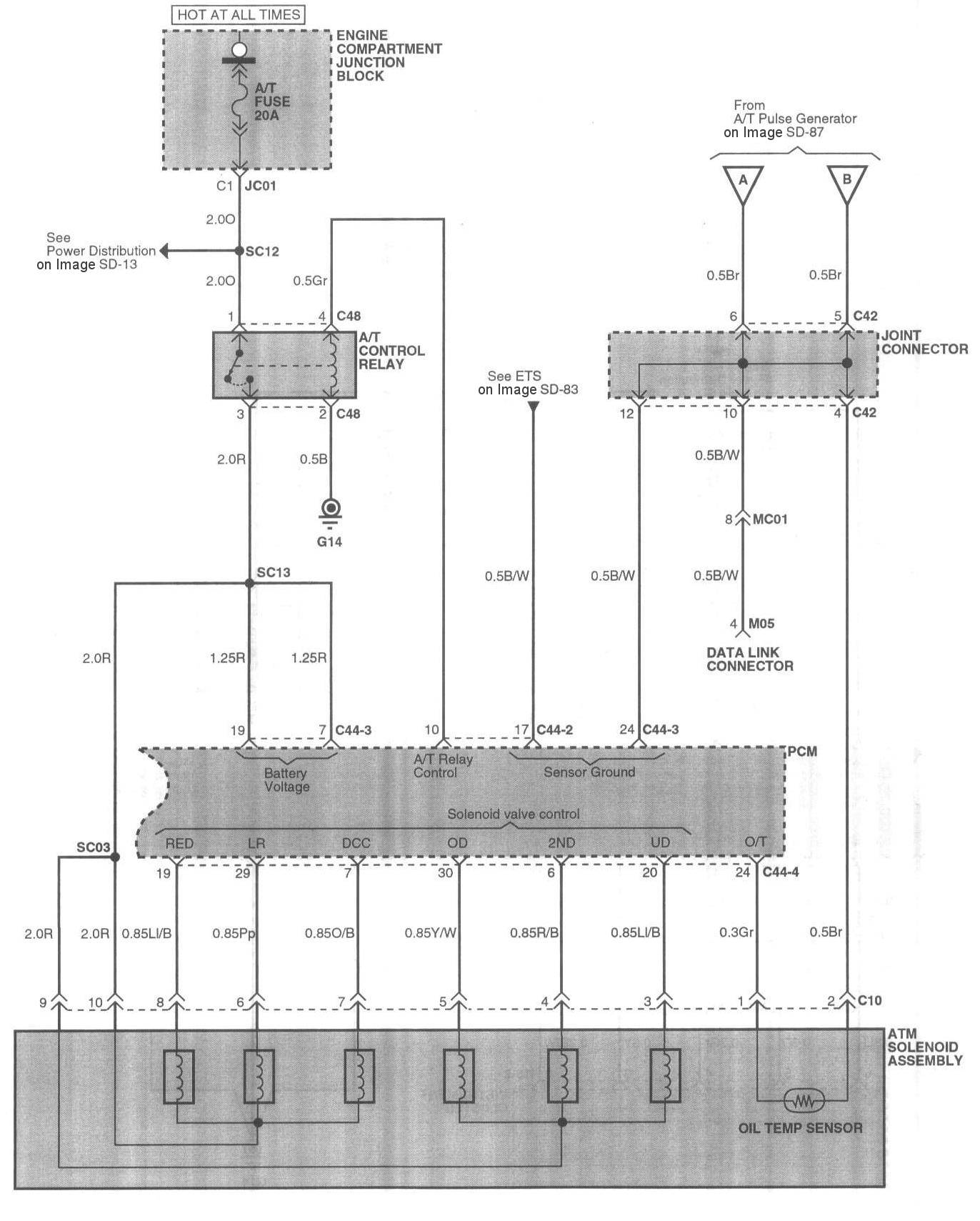

Image SD-86 Automatic Transaxle Control System (1):

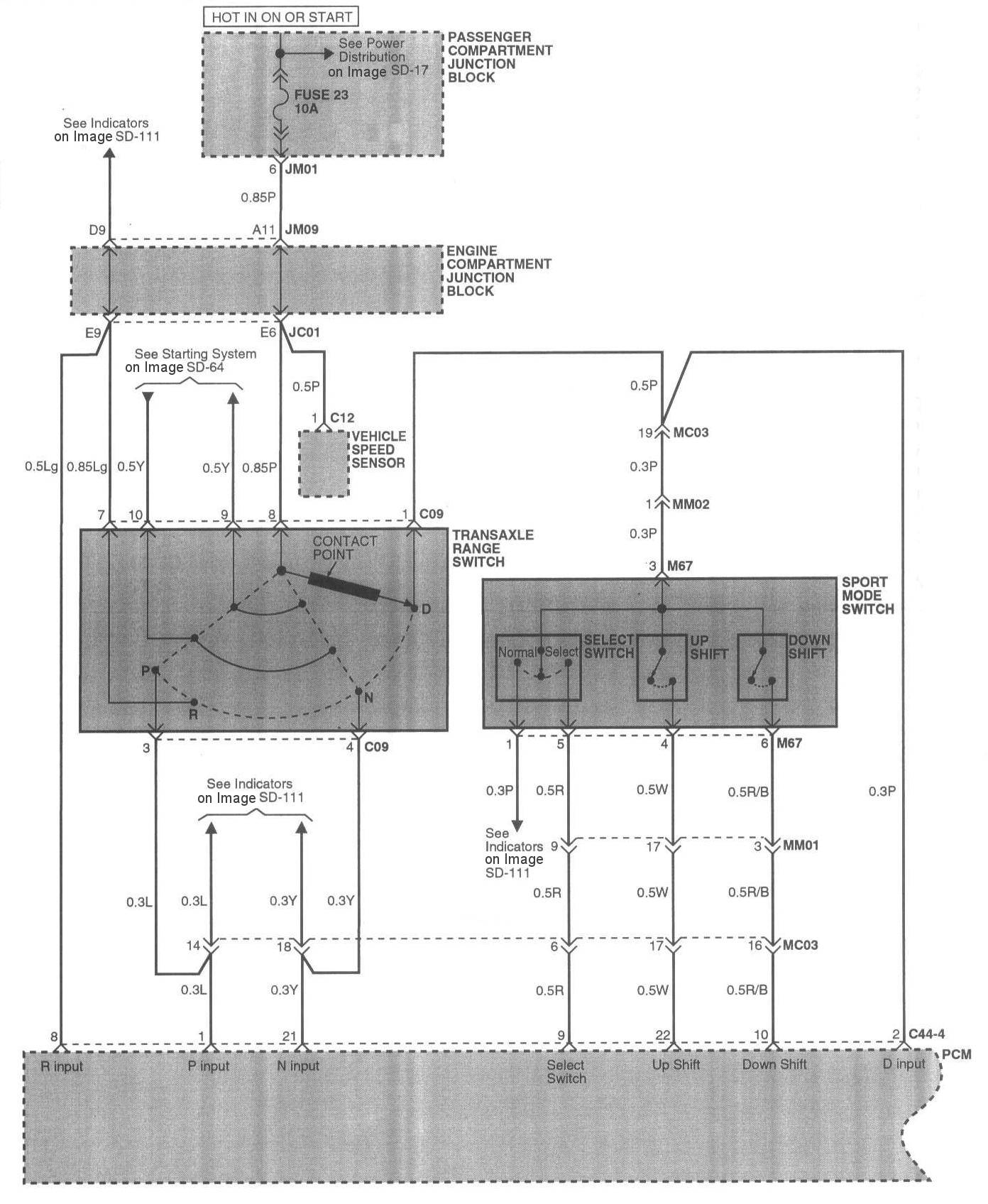

Image SD-87 Automatic Transaxle Control System (2):

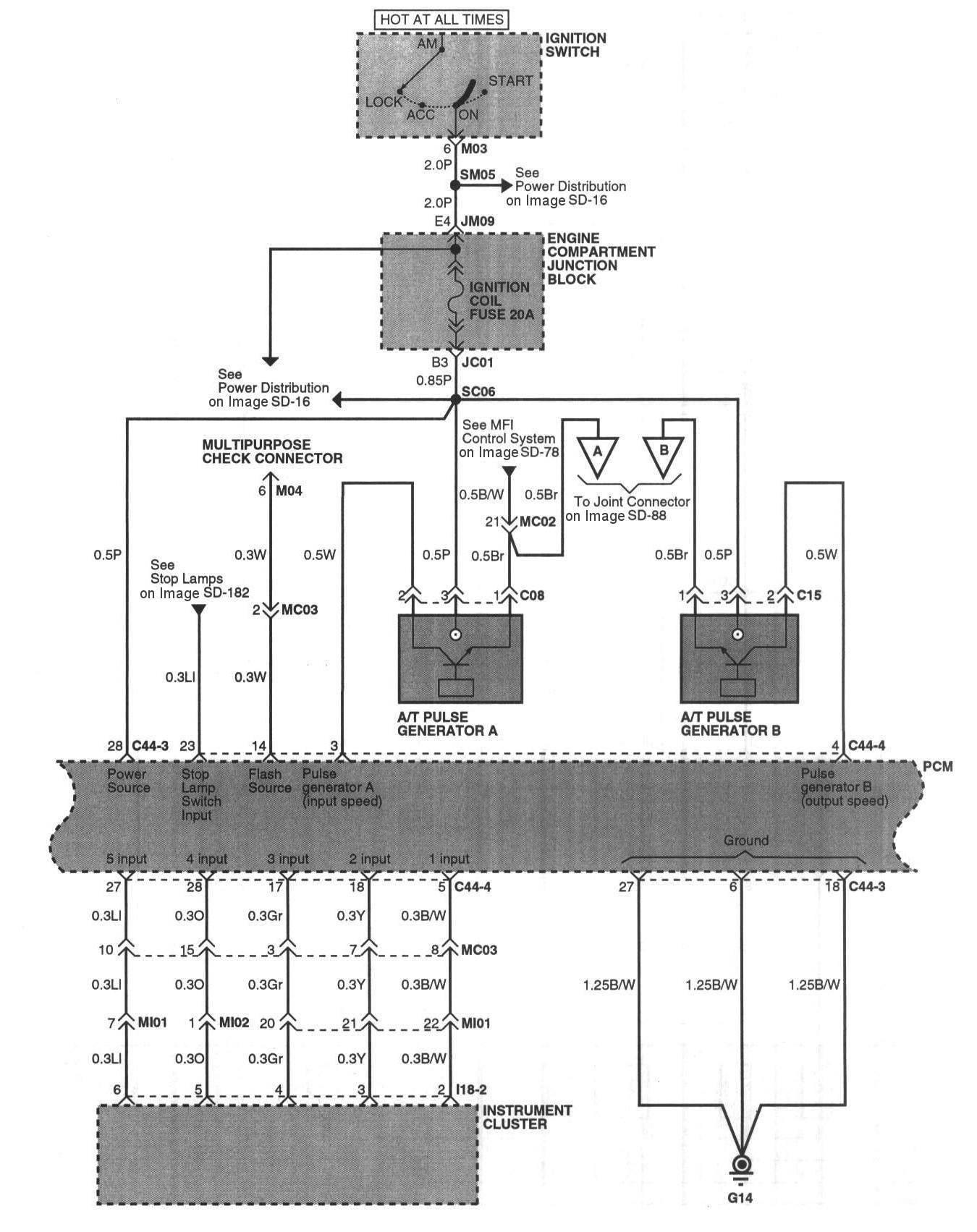

Image SD-88 Automatic Transaxle Control System (3):
