Connector Locations

D12 Left Joint Connector, D13 Right Joint Connector, D17 Left Front Power Window Motor, D18 Right Front Power Window Motor:

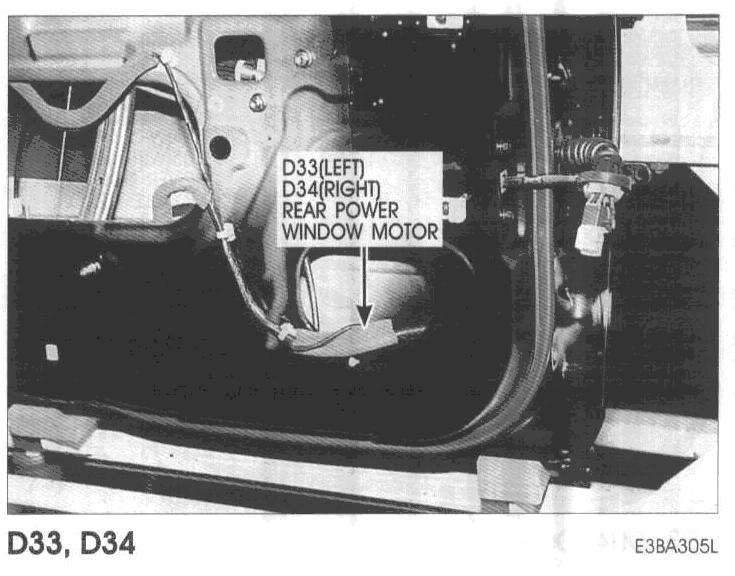

D33 Left Rear Power Window Motor, D34 Right Rear Power Window Switch:
