Scantool Diagnostics

Driver Door Module
B1602XX CAN LINE ERROR - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

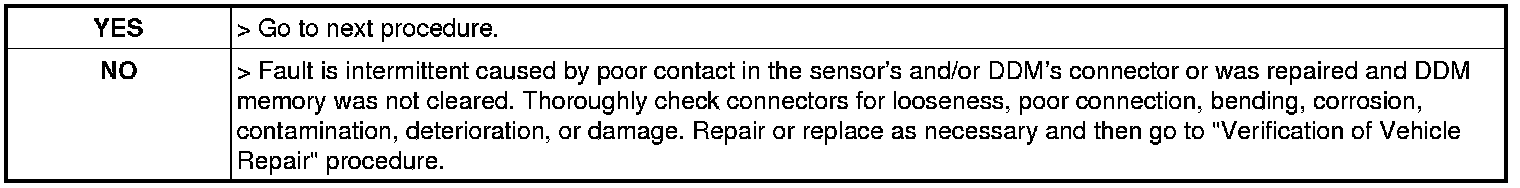

5. Is the same DTC occurred again ?
