System Diagram





4WAS SYSTEM


System Diagram

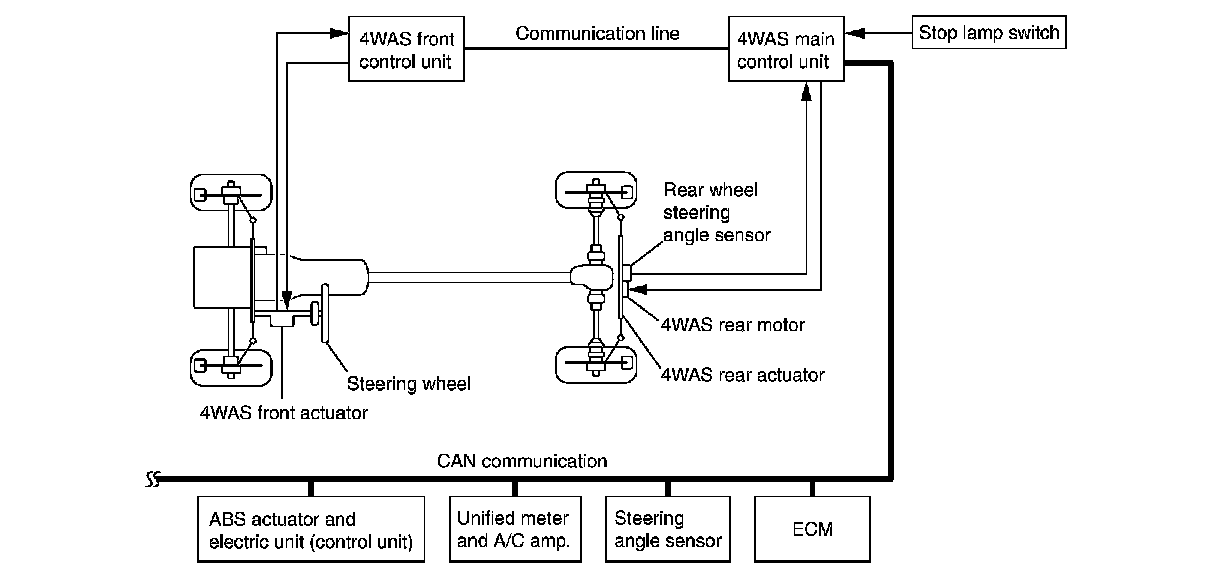

CONTROL DIAGRAM

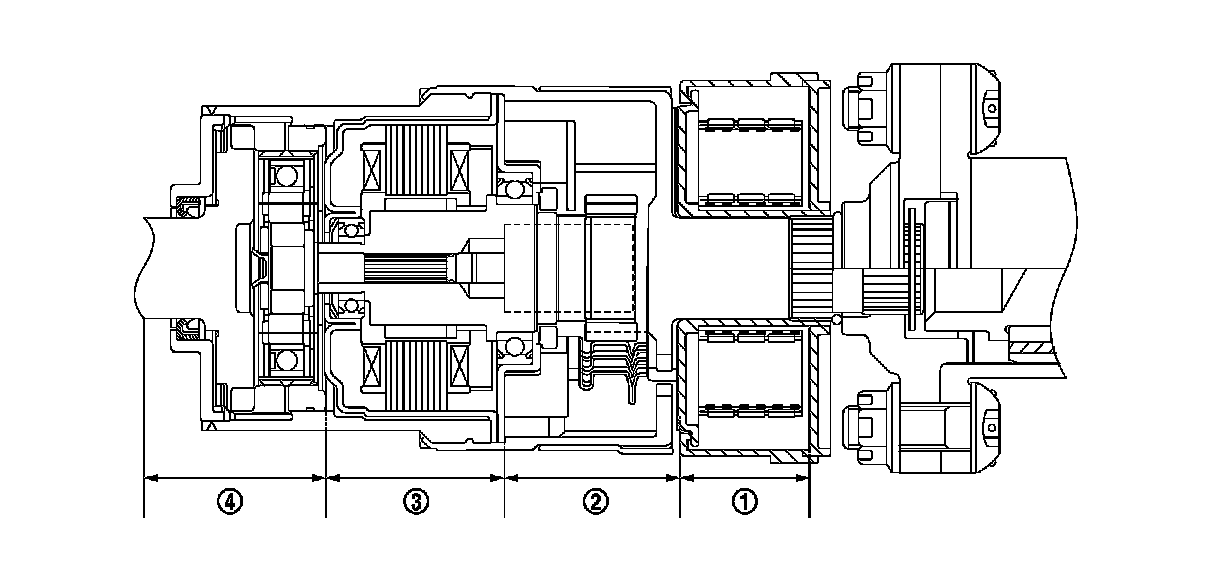

CROSS-SECTIONAL VIEW

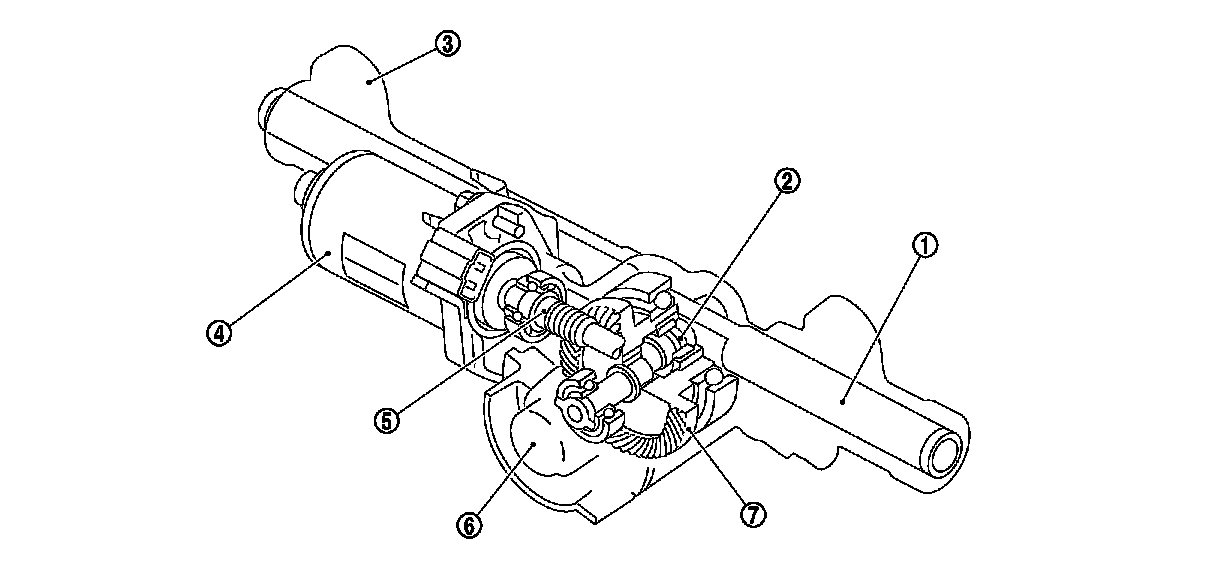

4WAS Front Actuator










4WAS Rear Actuator
