DOOR LOCK


REAR DOOR LOCK : Removal and Installation


REMOVAL
1. Remove the rear door finisher. Removal and Installation.

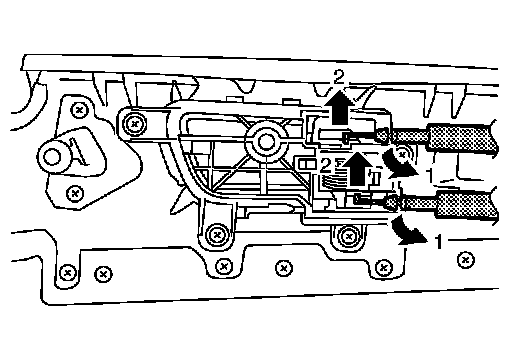

2. Disconnect the inside handle knob cable and lock knob cable from the back side of the rear door finisher.
3. Remove the rear door glass. Removal and Installation.

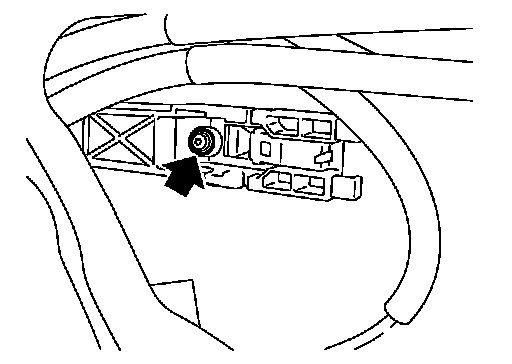

4. Remove door side grommet, and remove outside handle escutcheon TORX bolt from grommet hole.

CAUTION:





Never forcibly remove the TORX bolt.





5. While pulling the outside handle, remove outside handle escutcheon.

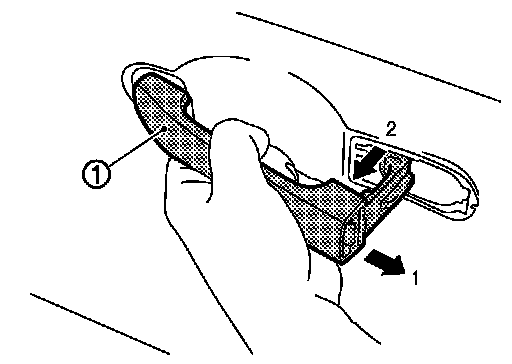

6. Slide outside handle (1) toward rear of vehicle and pull to remove outside handle.





7. Remove the front gasket and rear gasket.
8. Remove the TORX bolt, remove the door lock assembly.





9. Remove the TORX bolt, and remove the outside handle bracket.





10. While pulling outside handle, slide toward rear of vehicle to remove outside handle.
11. Disconnect the door lock actuator connector and remove the door lock assembly.





12. Reach in to separate outside handle cable connection.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
To install each rod, rotate the rod holder until a click is felt.
