Home >> Infiniti >> 2011 >> G37x Sedan AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> TEL Adapter Unit Bose Audio

TEL Adapter Unit Bose Audio

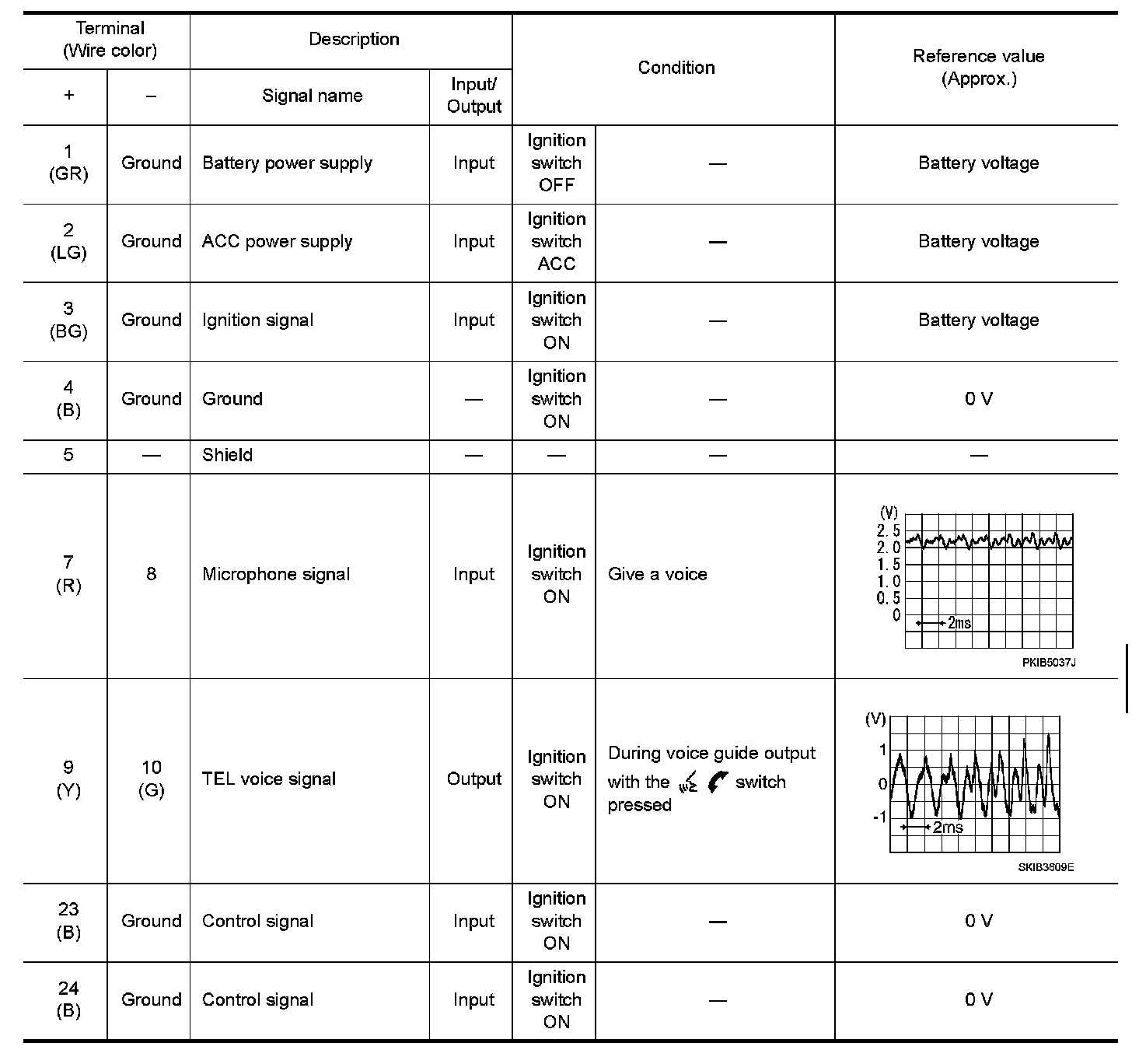

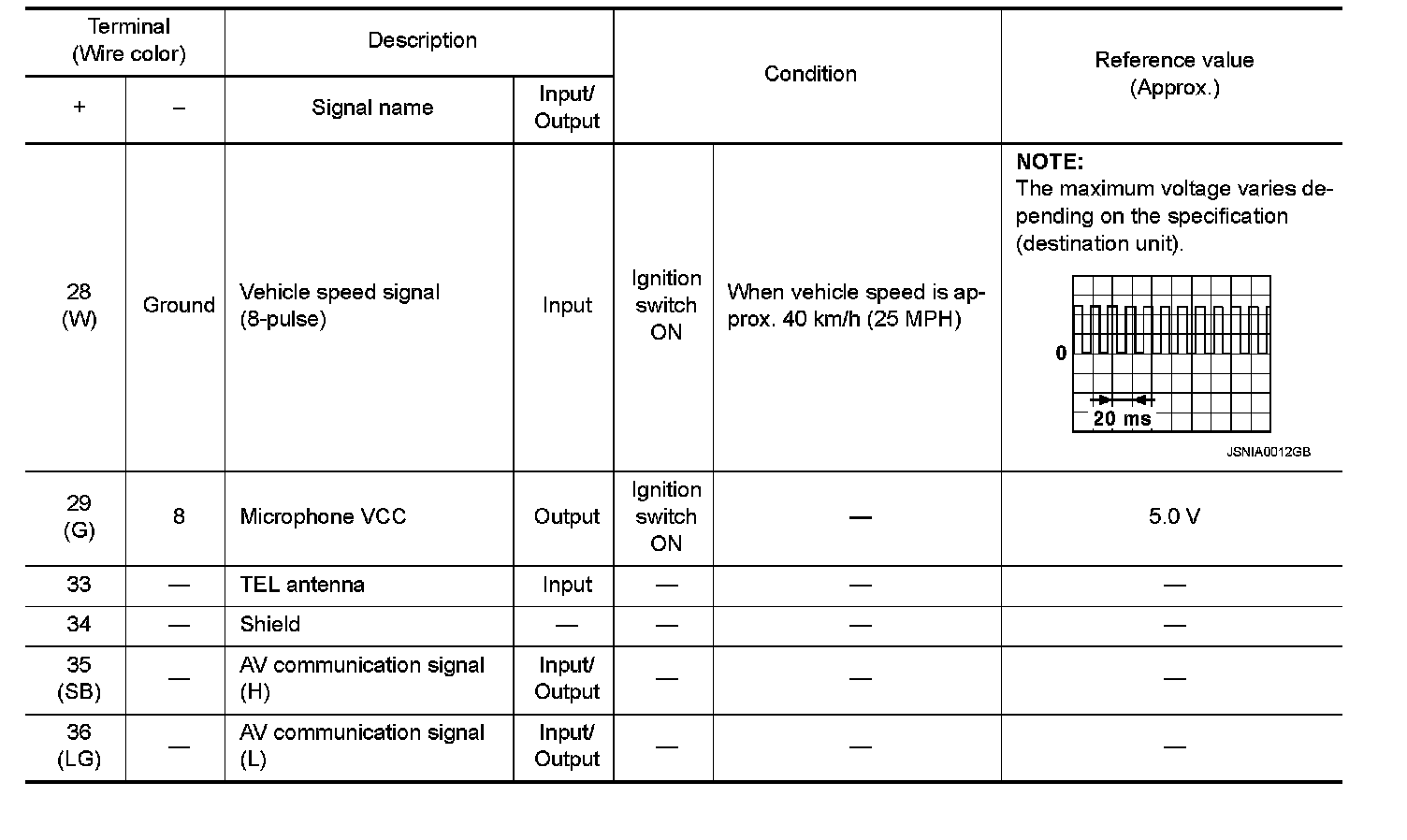

TEL ADAPTER UNIT


Reference Value


PHYSICAL VALUES
