Diesel Data
: Automotive Repair
Home
>>
Infiniti
>>
2012
>>
M56 V8-5.6L (VK56VD)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution Module
Power Distribution Module
IPDM E/R

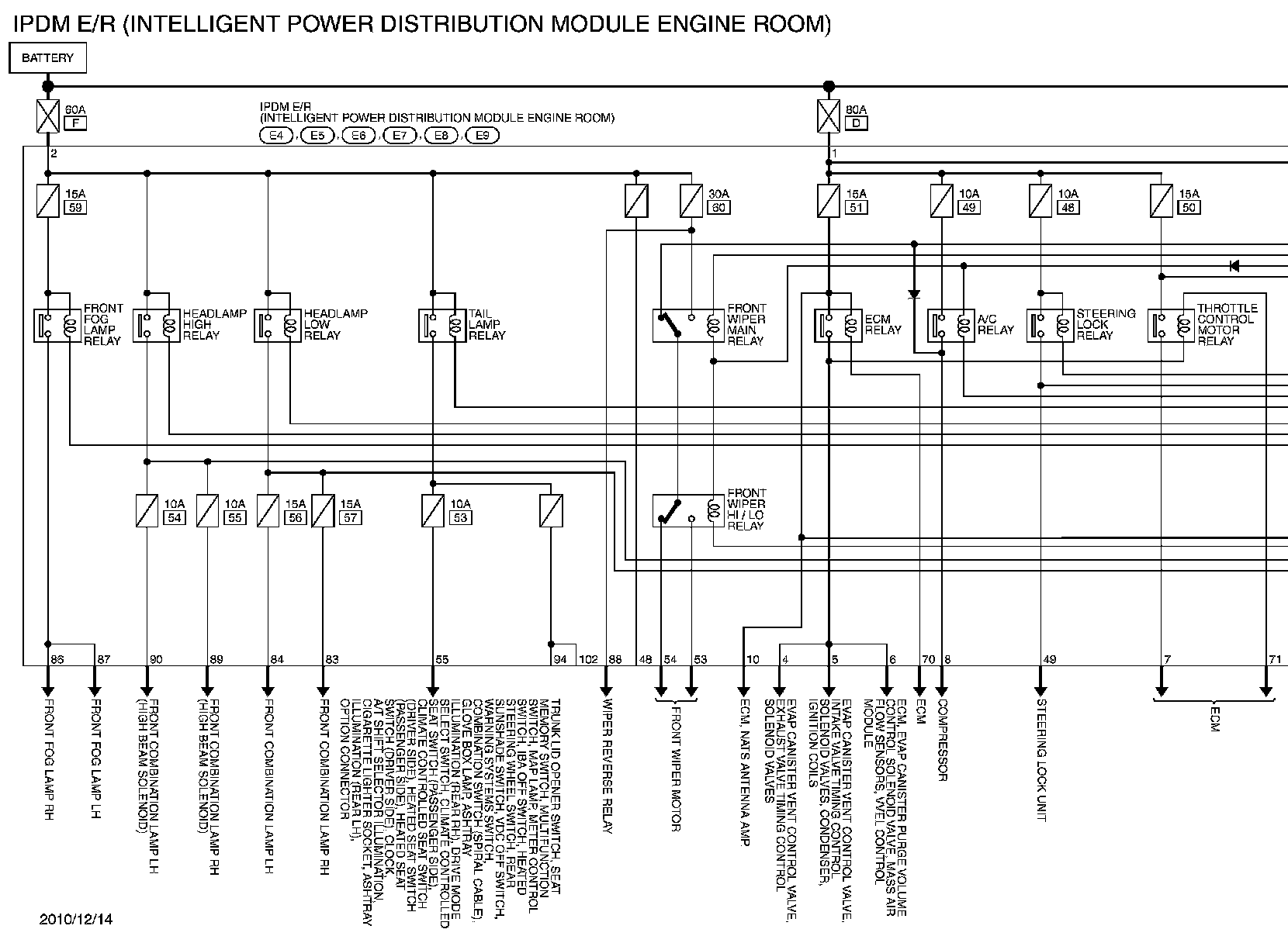

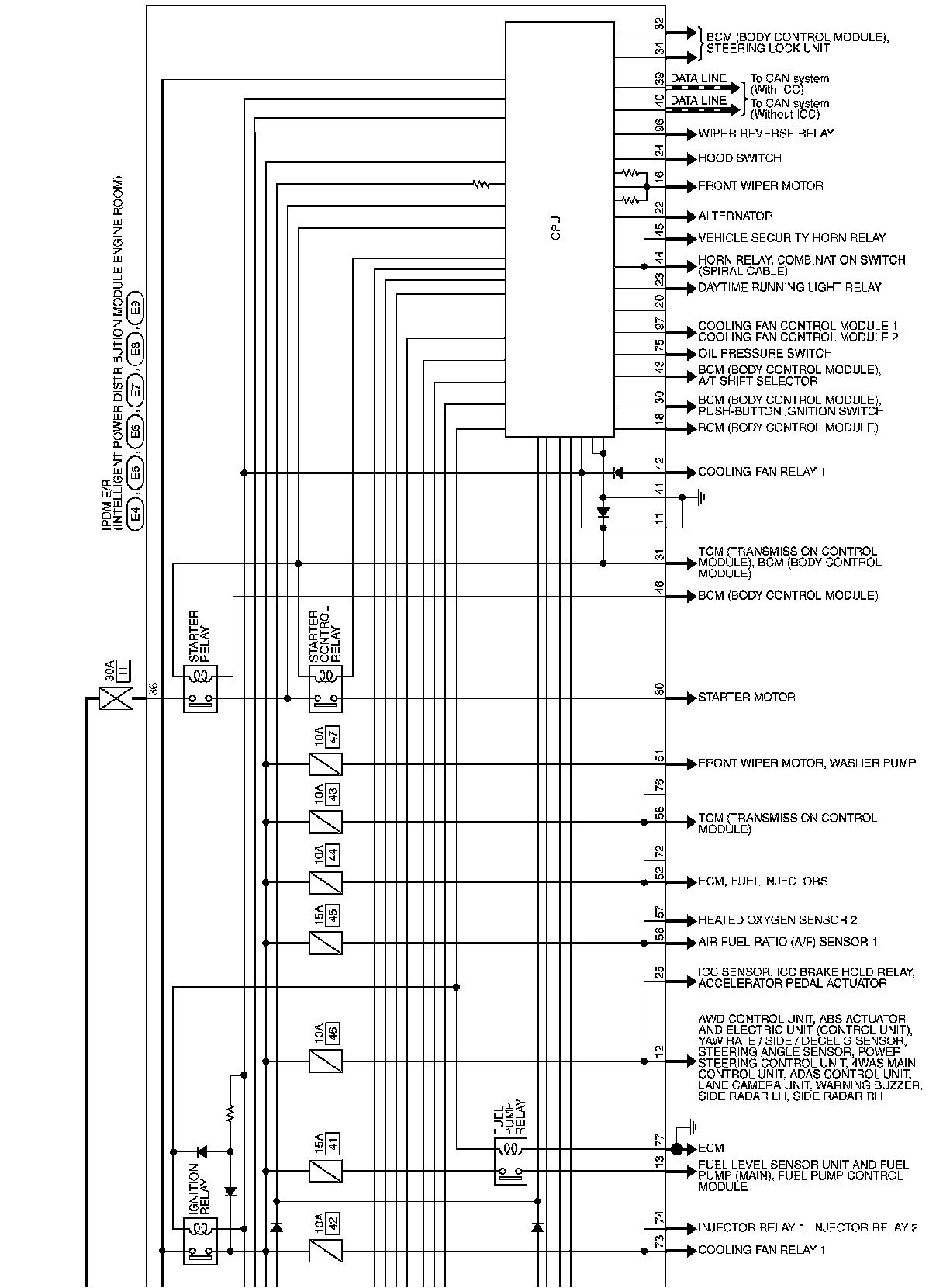

Wiring Diagram
