Timing Cover

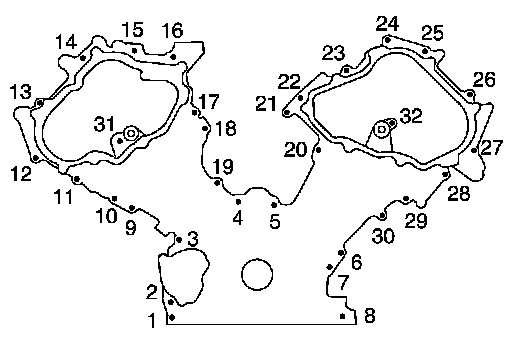

Timing Cover Mounting Bolts

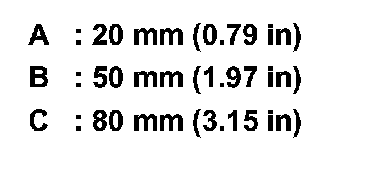

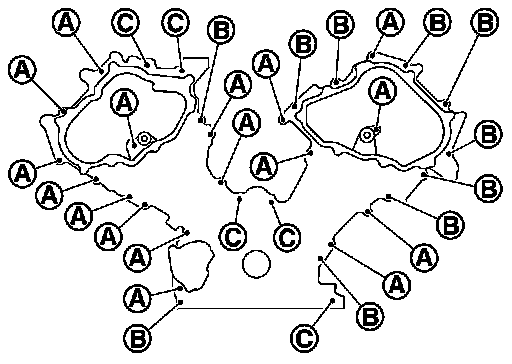

Three bolt types













First step 12.8 Nm (1.3 kg-m, 9 ft-lb) in sequence
Second step Retighten in sequence

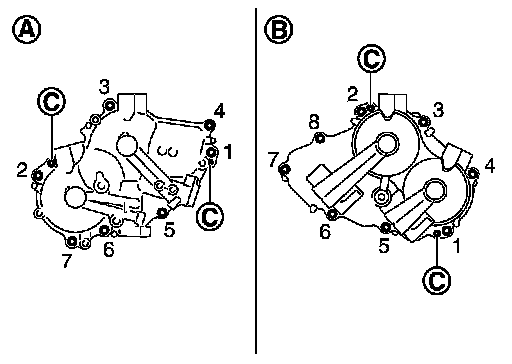

Valve Timing Control Cover Bolts 11.3 Nm (1.2 kg-m, 8 ft-lb) in sequence
