Rear Bumper Cover / Fascia: Service and Repair

Fascia Replacement - Rear Bumper

Removal Procedure

1. Remove the backup lamp socket assemblies from the backup lamp housings, if applicable.

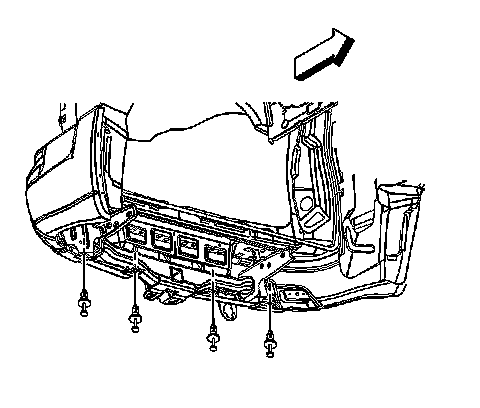

2. Remove the lower fascia push-pins.

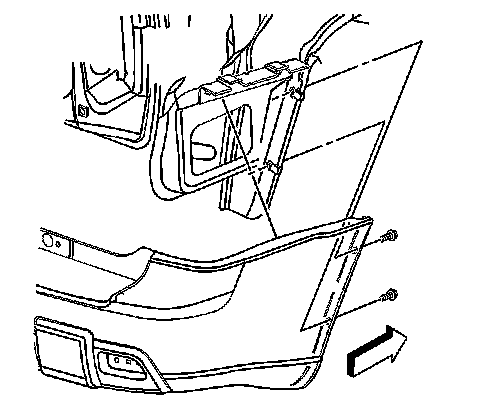

3. Remove the screws from the rear wheelhouse flanges.

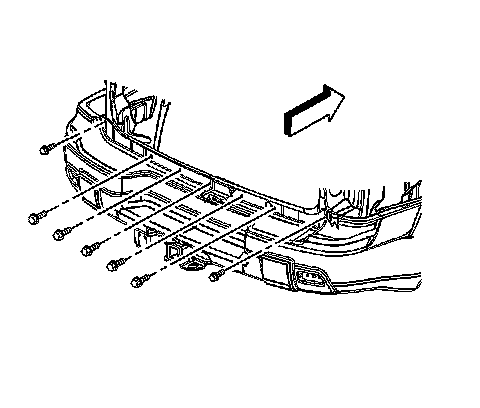

4. Remove the upper retaining bolts from the back of the fascia.
5. Remove the fascia from the vehicle.

Installation Procedure




1. Position the fascia to the vehicle impact bar.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the upper retaining bolts to the fascia.

Tighten the bolts to 2.5 N.m (22 lb in).




3. Install the screws that retain the fascia to the wheelhouse flanges.

Tighten the screws to 2 N.m (18 lb in).




4. Install and fully seat the lower push-pins.
5. Install the backup lamp socket assemblies, if applicable.
