Tailgate Weatherstrip: Service and Repair

Weatherstrip Replacement - Endgate

Removal Procedure

1. Open the endgate.
2. Open the moveable roof.




3. Remove the push-pins (2) retaining the endgate weatherstrip upper mold from the moveable roof module.
4. Remove the endgate weatherstrip from the bulb flange from the moveable roof module.

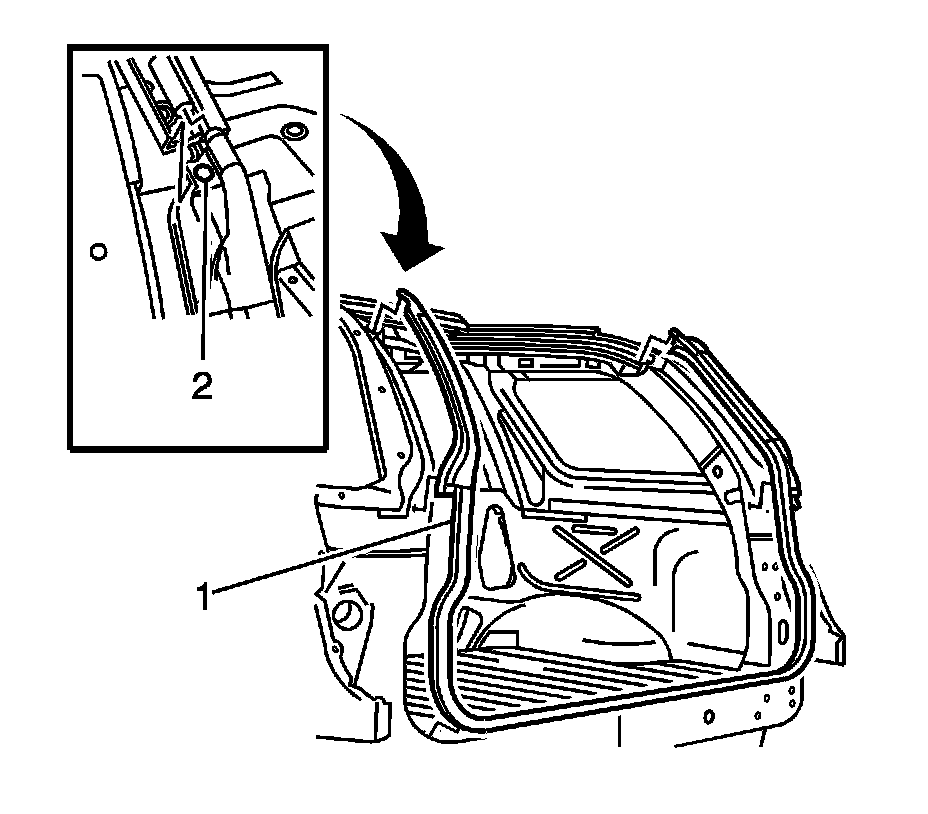

5. Remove the push-pins retaining the endgate weatherstrip lower molds (1) to the back of the vehicle.
6. Remove the weatherstrip from the endgate opening flange.

Installation Procedure




1. Install the endgate weatherstrip upper molds to the roof module with the integral push-pins (2).
2. Install the weatherstrip onto the bulb flange of the moveable roof. Ensure the roof module weatherstrip cups over the endgate weatherstrip.
3. Install the endgate weatherstrip lower molds (1) to the vehicle with the integral push-pins.
4. Install the weatherstrip to the endgate opening flange.
5. Close the moveable roof.
6. Close the endgate.
