Isuzu Truck
>>
2005
>>
Ascender 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 158
Diagram Set 158

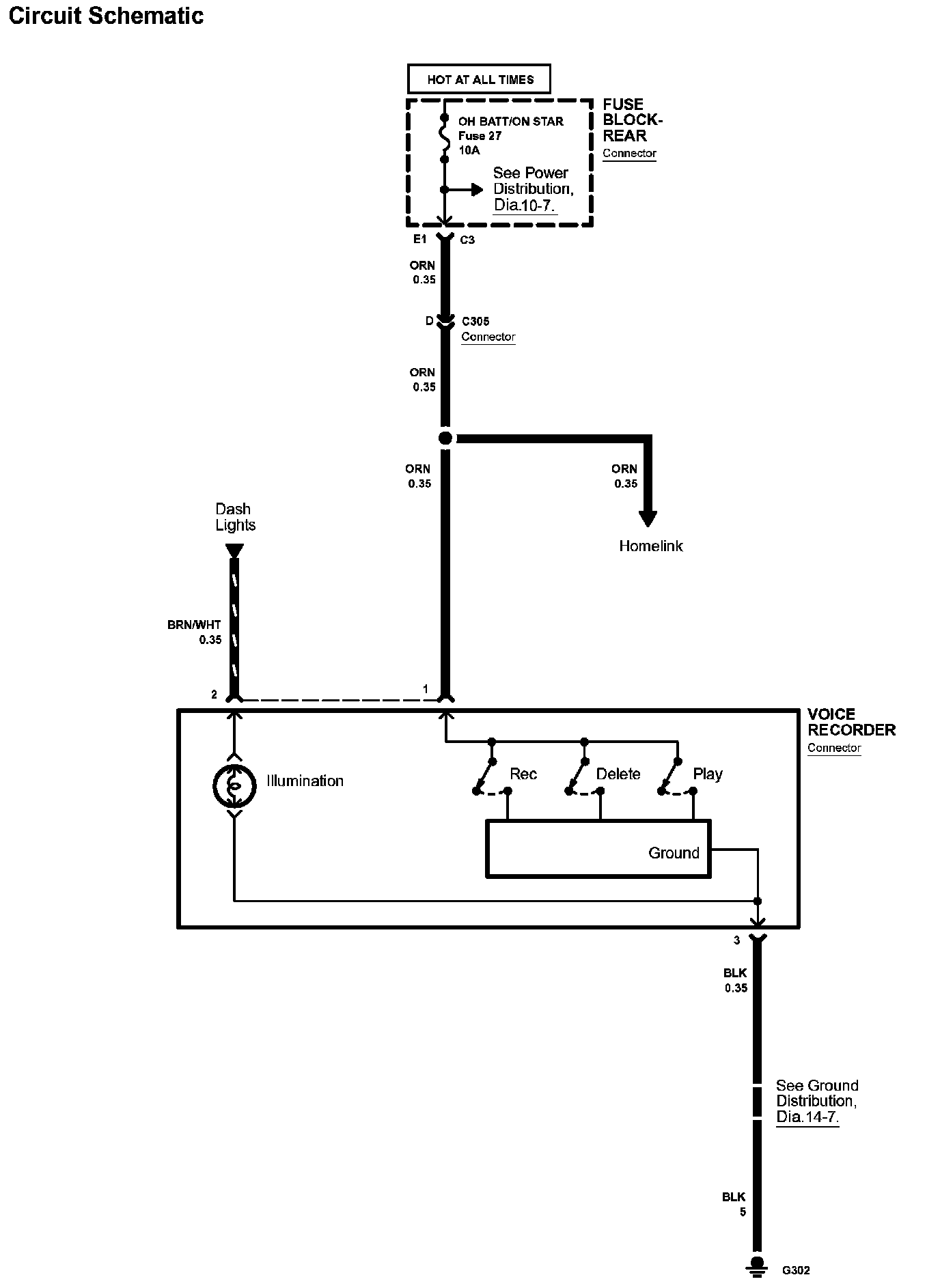

Diagram 158-0:
