Drive Belt Tensioner: Service and Repair

Drive Belt Tensioner Replacement

Removal Procedure





1. Remove the drive belt.
2. Inspect the drive belt.

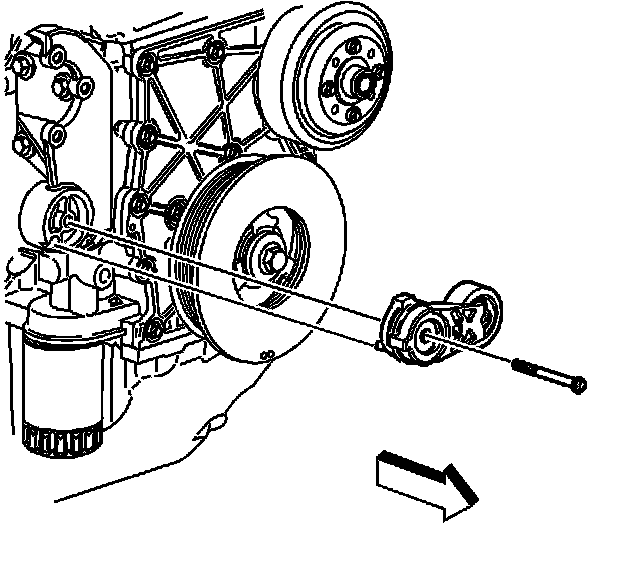

3. Using a wrench loosen and remove the drive belt tensioner bolt.
4. Remove the drive belt tensioner.

Installation Procedure

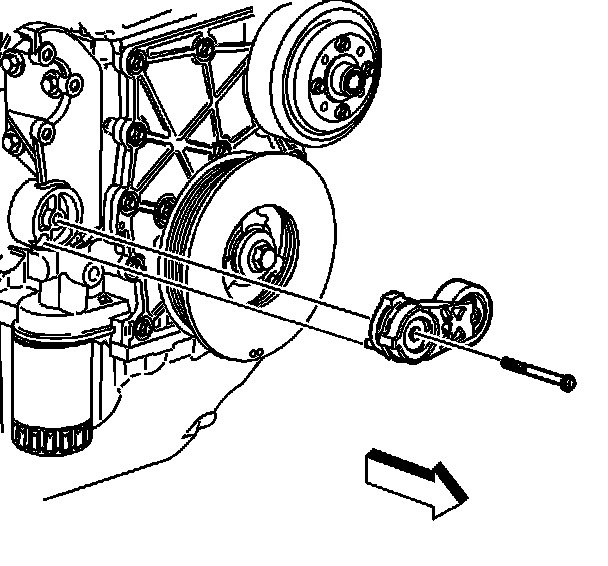

1. Install the drive belt tensioner.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bolt.
^ Tighten the drive belt tensioner bolt to 50 Nm (37 ft. lbs.).
3. Install the drive belt Drive Belt Replacement.
