Engine Mount Replacement - Right

Tools Required
^ J 41240 Fan Clutch Remover and installer

Removal Procedure





1. Disconnect the battery negative cable.

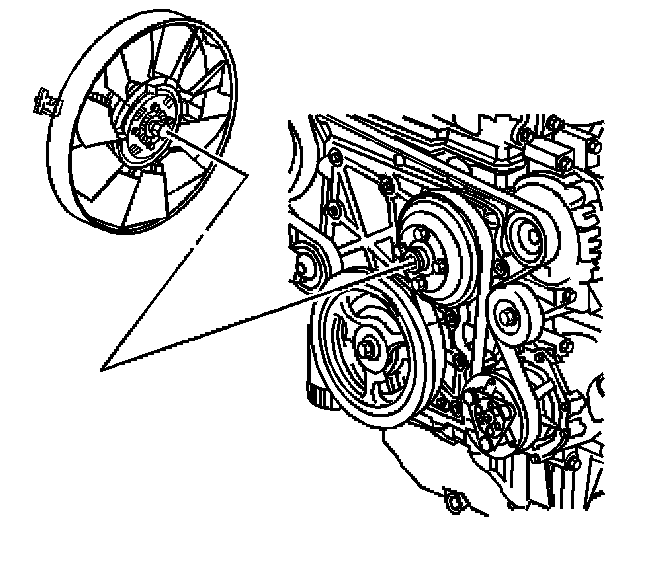

2. Using the J 41240 to secure the water pump pulley. Loosen the cooling fan hub nut from the water pump shaft.

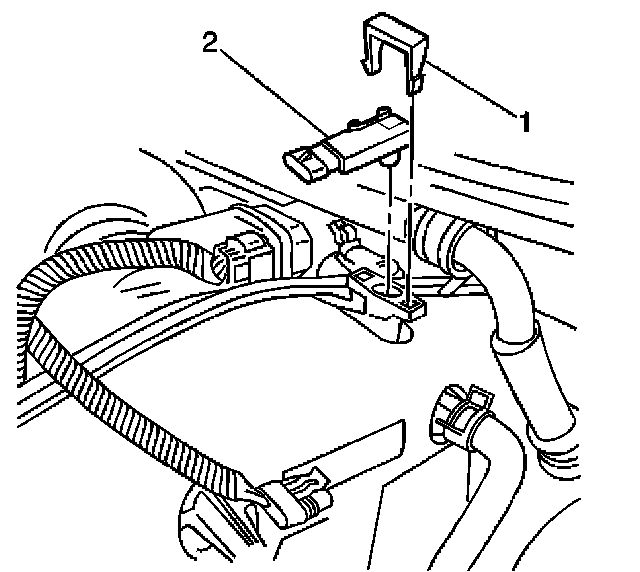

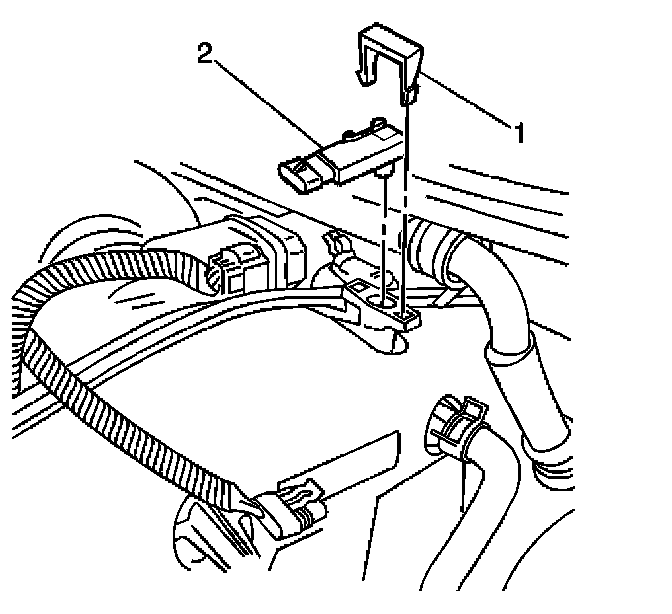

3. Remove the MAP sensor electrical connector and retainer (1).
4. Remove the MAP sensor (2).
5. Remove the right shock module, if frame engine mount is being removed.

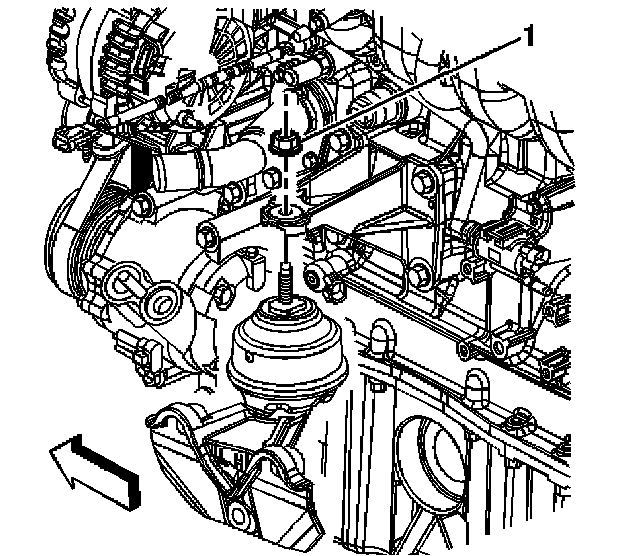

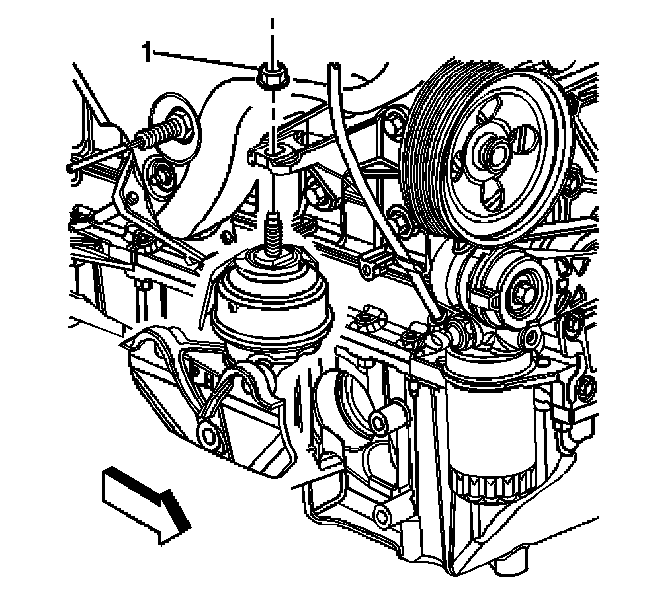

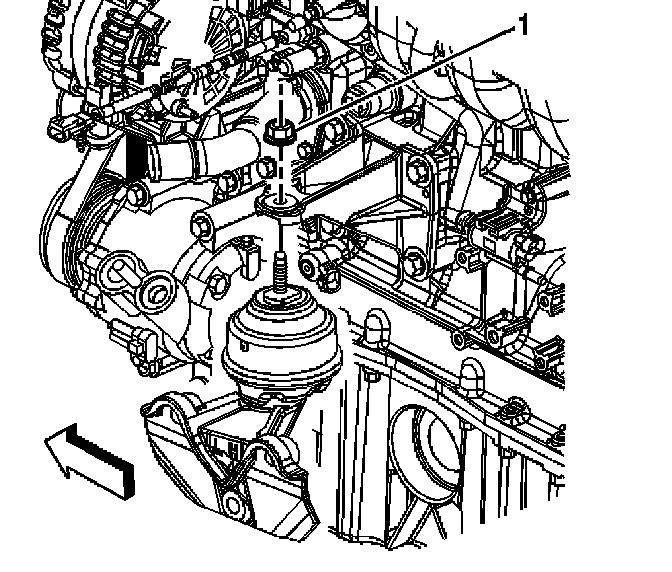

6. Remove the right and the left upper engine mount nuts.
7. Raise the vehicle.
8. Remove the right and the left lower engine mount nuts.

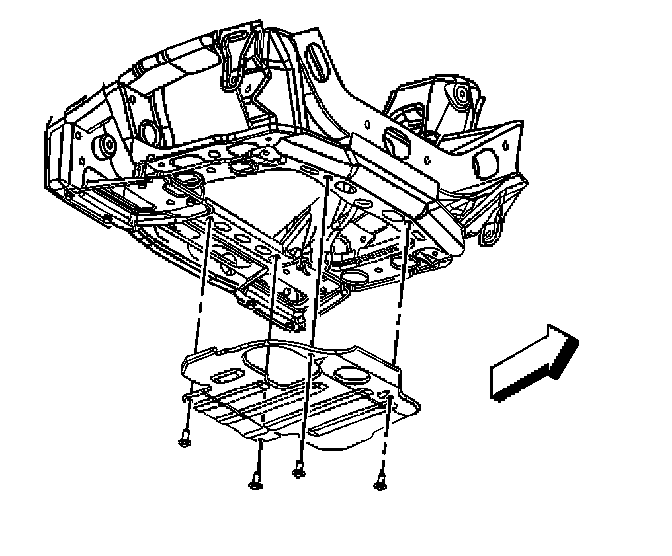

9. Remove the engine protection shield mounting bolts.
10. Remove the engine protection shield.

Important: When placing jack onto the oil pan, pay close attention to not damaging the oil level sender.

11. Lower the vehicle and place a floor jack under the oil pan with a block of wood.
12. Raise the engine with the jack just enough to clear the engine mount studs.





13. Remove the right engine mount from the bracket.





14. Note: Graphic shows left, right is similar.

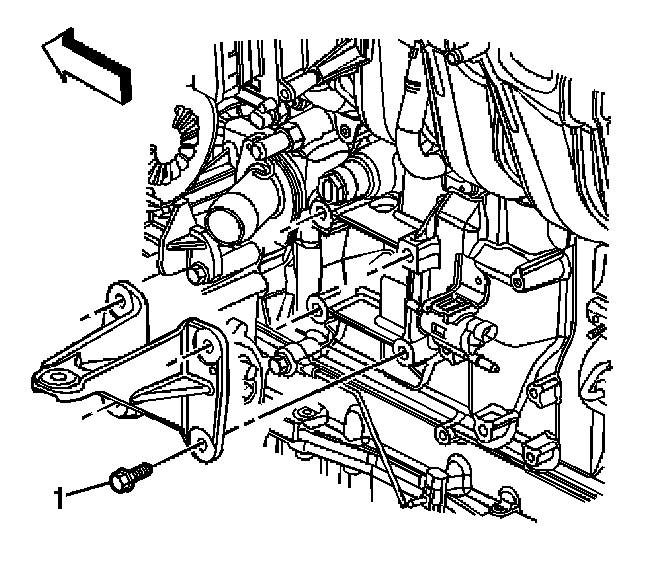

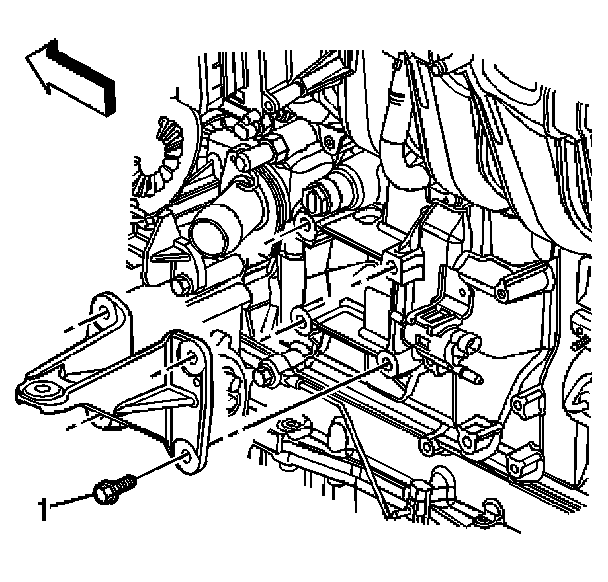

Remove the right engine mount bracket bolts.
15. Remove the right engine mount bracket.





16. Note: Graphic shows left, right is similar.

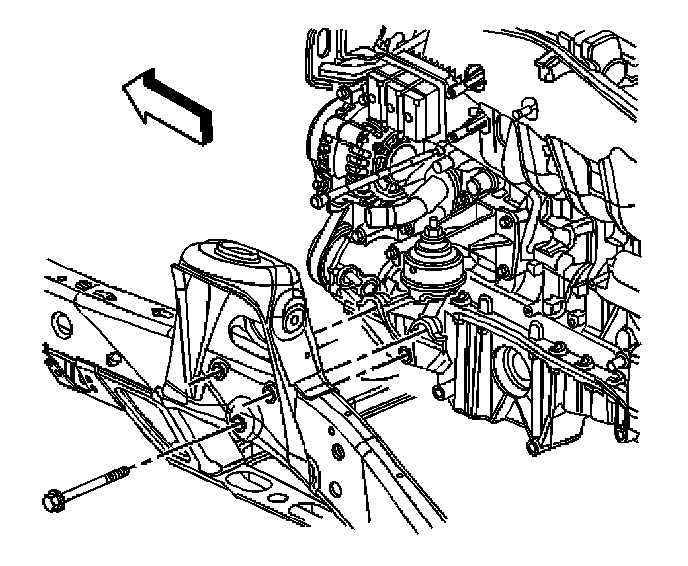

Remove the right frame engine mount bracket bolts, if required.
17. Remove the right frame engine mount bracket, if required.

Installation Procedure





1. Note: Graphic shows left, right is similar.
Install the right frame engine mount bracket, if removed.

Notice: Refer to Fastener Notice in Service Precautions.

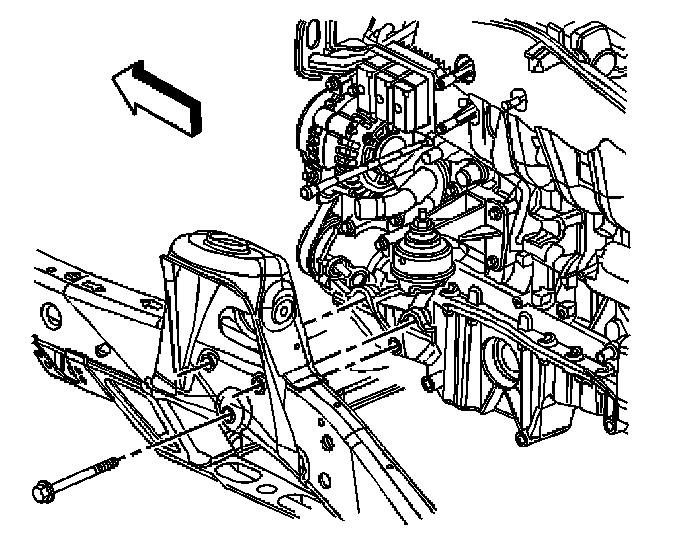

2. Install the right frame engine mount bracket bolts, if removed.
^ Tighten the mount bracket bolts to 110 Nm (81 ft. lbs.).





3. Note: Graphic shows left, right is similar.

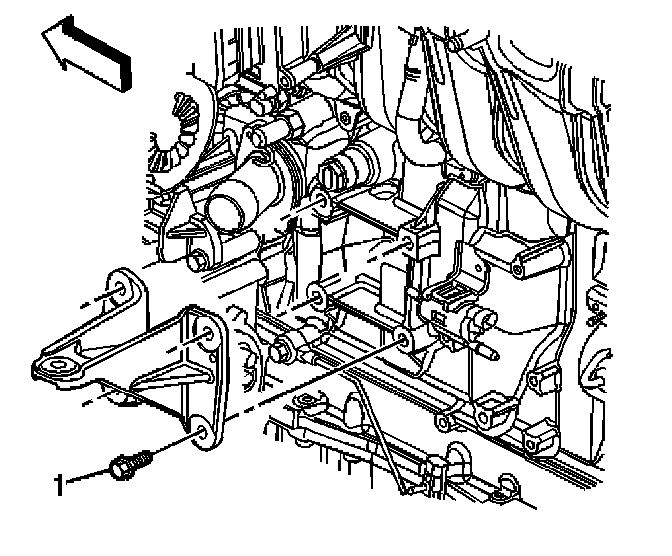

Install the right engine mount bracket and secure with the bolts (1).
^ Tighten the engine mount bracket bolts to 50 Nm (37 ft. lbs.).





4. Install the right engine mount.
5. Lower the engine onto the engine mounts.

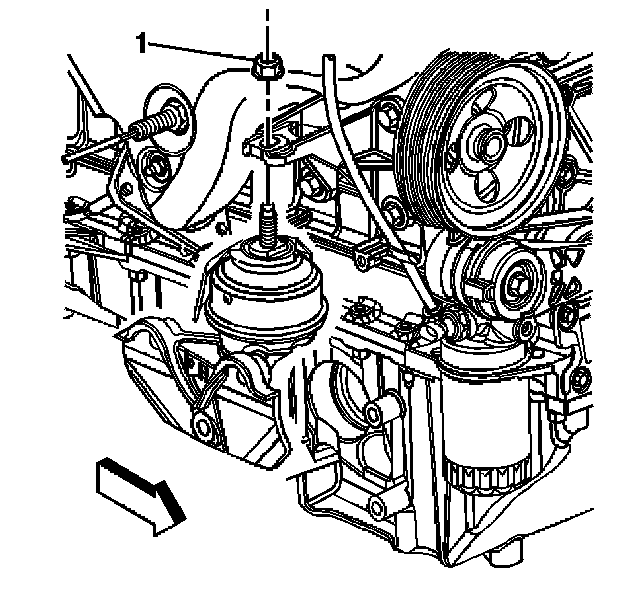

6. Install the right and the left upper engine mount nuts.
^ Tighten the upper engine mount nuts to 70 Nm (52 ft. lbs.).
7. Raise the vehicle and remove the floor jack from under the vehicle.

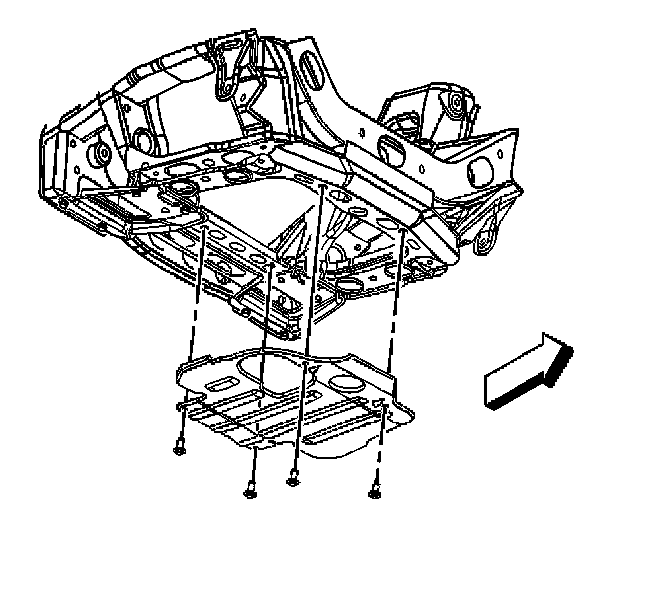

8. Install the engine protection shield and secure with the bolts.
^ Tighten the engine protection shield bolts to 25 Nm (18 ft. lbs.).





9. Install the right and the left lower engine mount nuts.
^ Tighten the lower engine mount nuts to 70 Nm (52 ft. lbs.).
10. Lower the vehicle.
11. Install the right shock module.





12. Install the MAP sensor (2).
13. Install the MAP sensor retainer (1) and the electrical connector.





14. Connect the cooling fan hub nut to the water pump shaft.

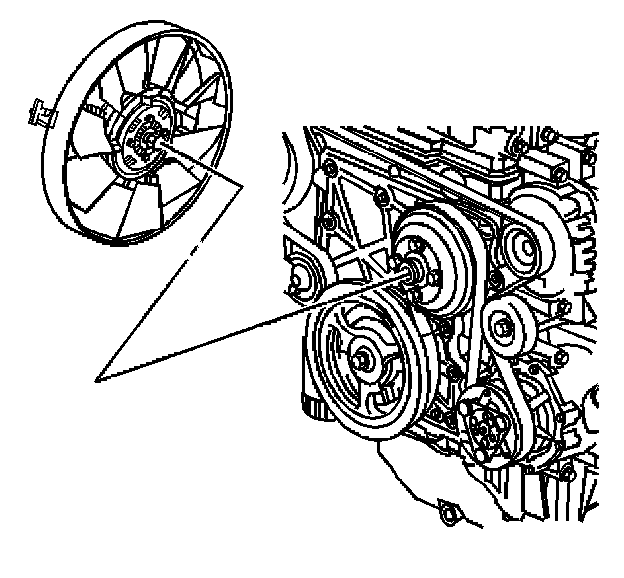

15. Install the J 41240 to the water pump pulley and tighten the cooling fan hub nut.
^ Tighten the cooling fan hub nut to 56 Nm (41 ft. lbs.).
16. Connect the battery negative cable.
