Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal Replacement

Tools Required
^ J 44218 Seal installer

Removal Procedure

Important: Do not damage the engine front cover or the crankshaft.





1. Remove the crankshaft balancer.

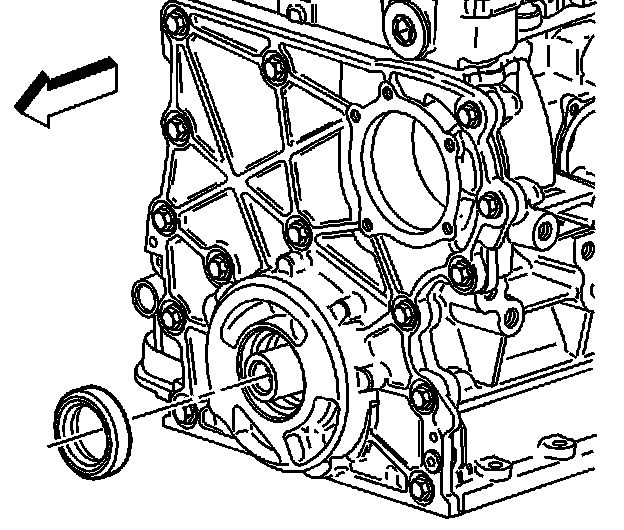

2. Pry out the crankshaft front oil seal using a suitable tool. Use the provided slots for prying out the seal.

Installation Procedure

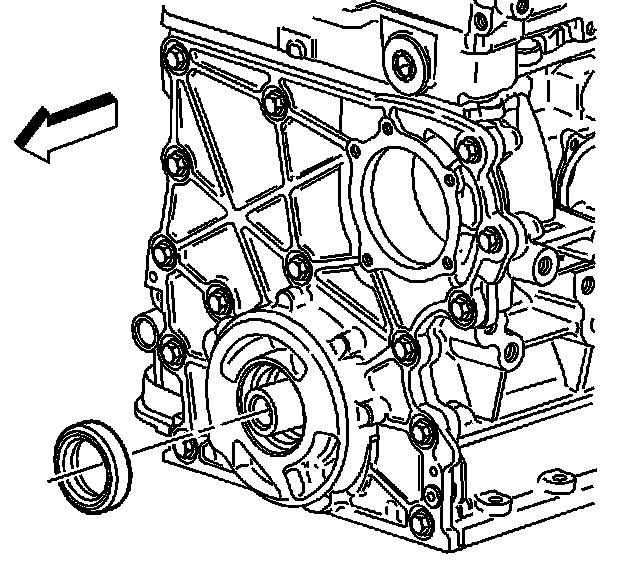

1. Apply the engine oil to the outside diameter of the crankshaft front oil seal.

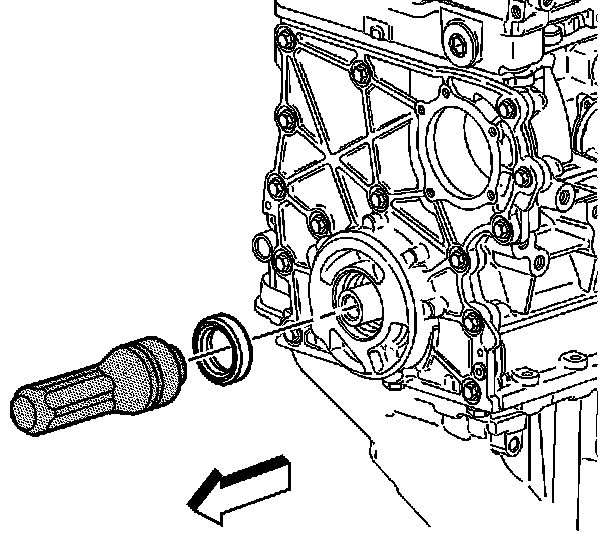

2. Use the J 44218 to install the front oil seal.
3. Remove the J 44218.
4. Install the crank balancer shaft.
