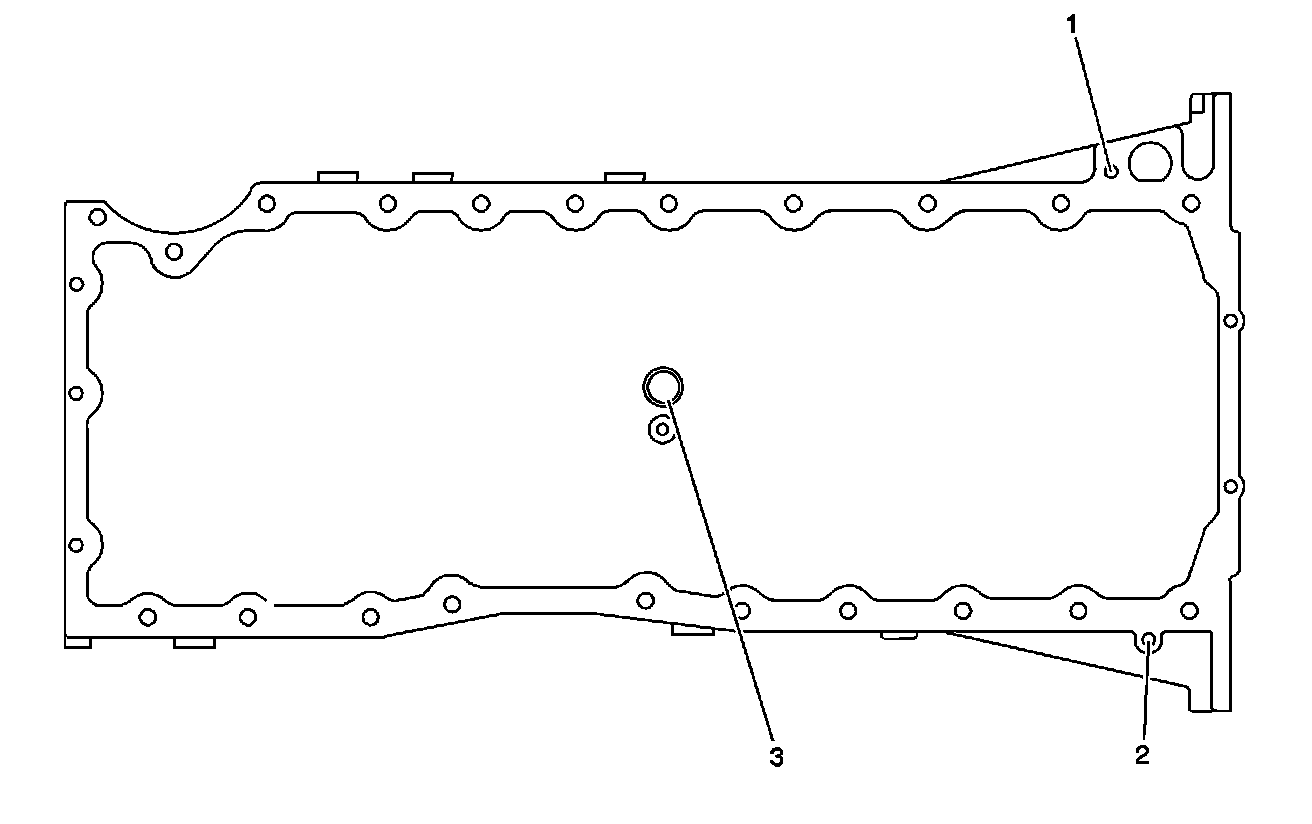

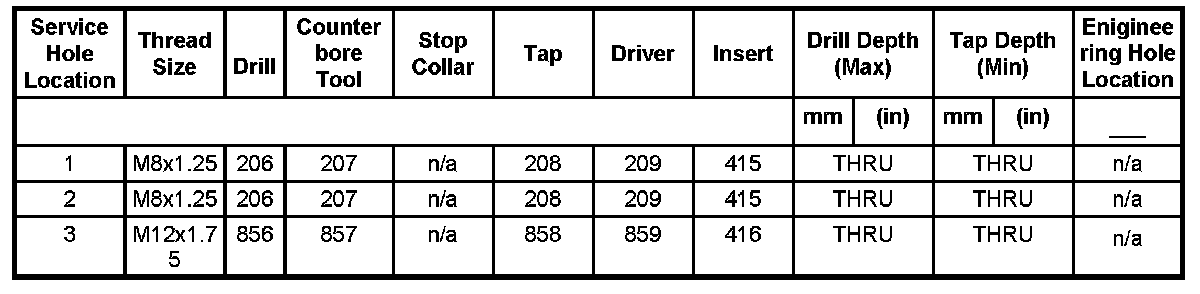

Home >> Isuzu Truck >> 2005 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Mechanical Specifications >> Thread Repair Specifications >> Oil Pan - Top View
