HVAC Module Case Sump - Auxiliary

HVAC MODULE CASE SUMP REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE
1. Remove the evaporator core-auxiliary.

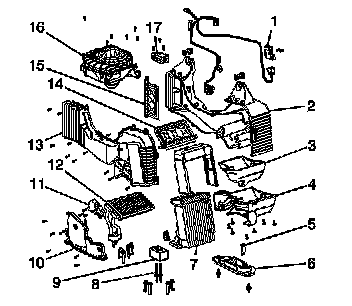

2. Remove the HVAC module-auxiliary case sump (4) from the HVAC module.

INSTALLATION PROCEDURE




1. Install the HVAC module-auxiliary case sump (4) to the HVAC module.
2. Install the evaporator core-auxiliary.
