Home >> Isuzu Truck >> 2005 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications

Fastener Tightening Specifications

Fastener Tightening Specifications

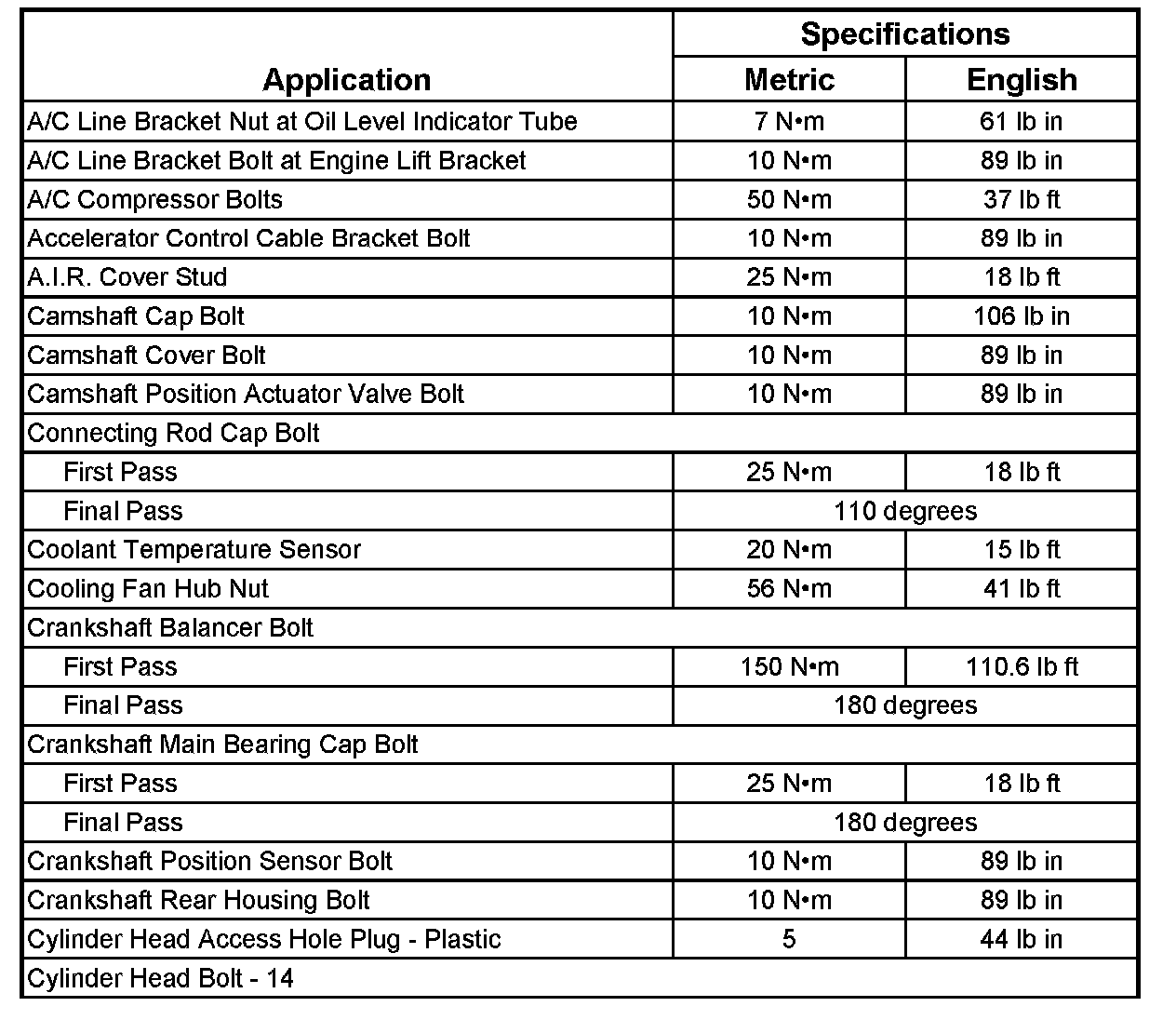

Fastener Tightening Specifications (1 Of 4):

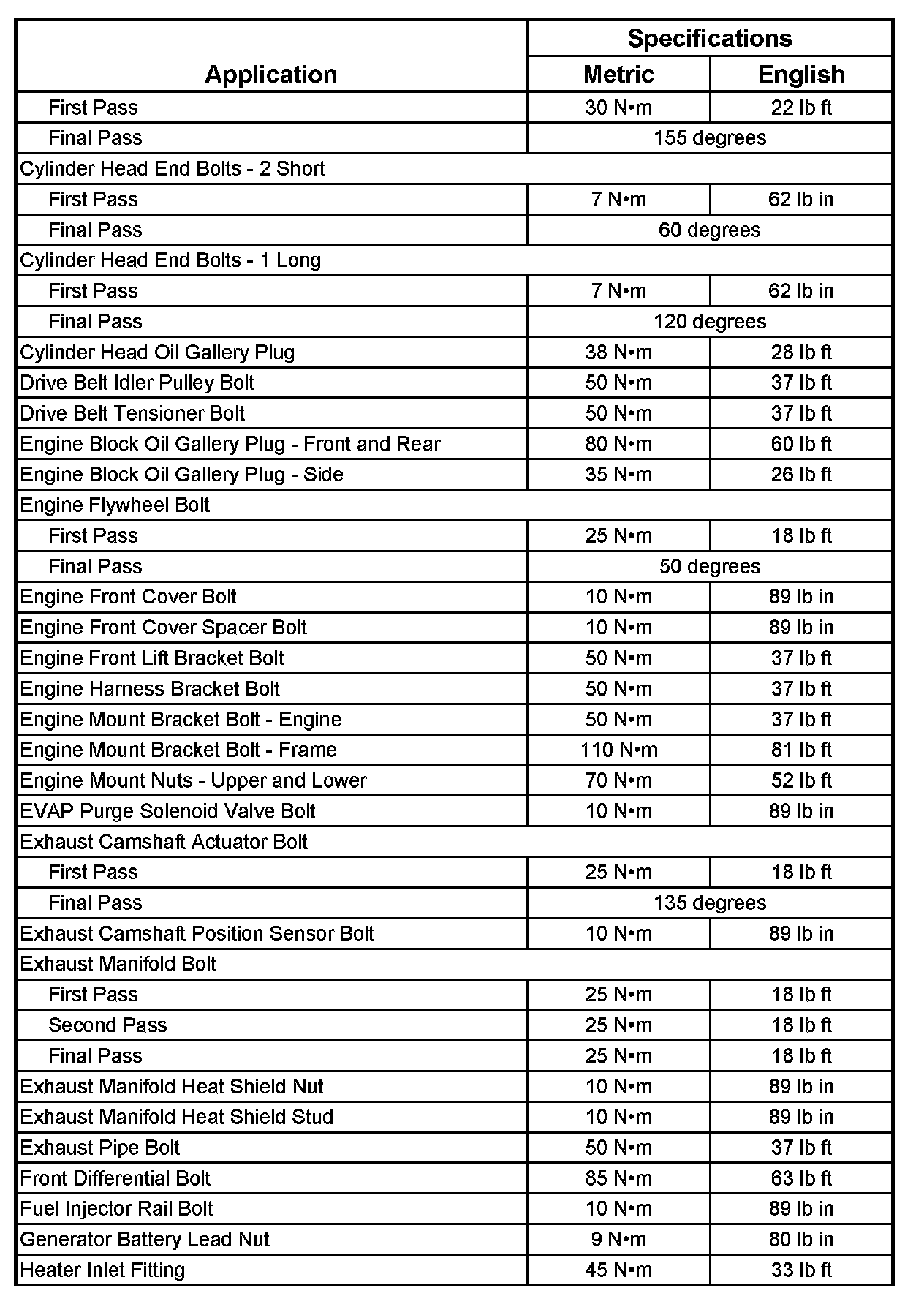

Fastener Tightening Specifications (2 Of 4):

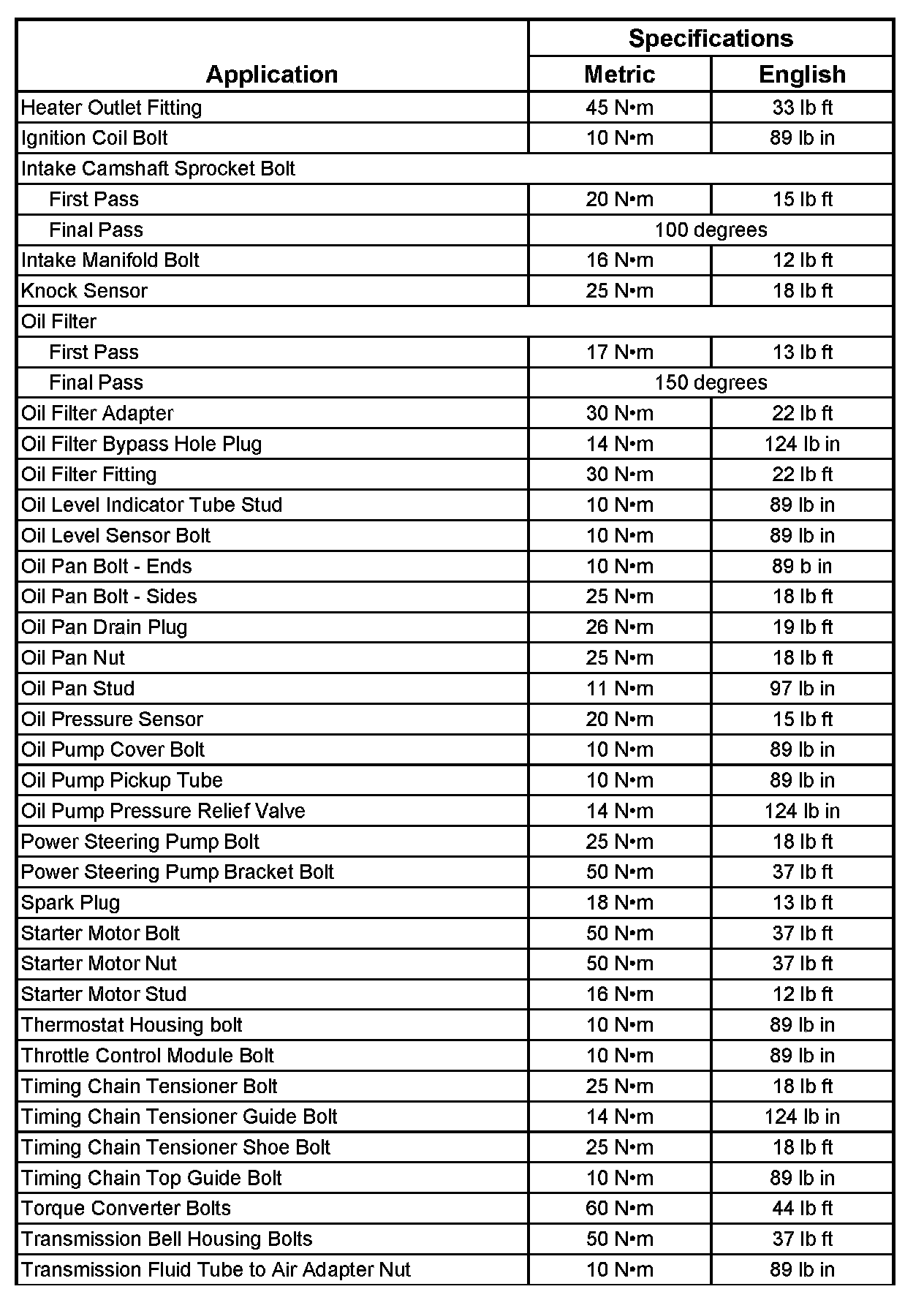

Fastener Tightening Specifications (3 Of 4):

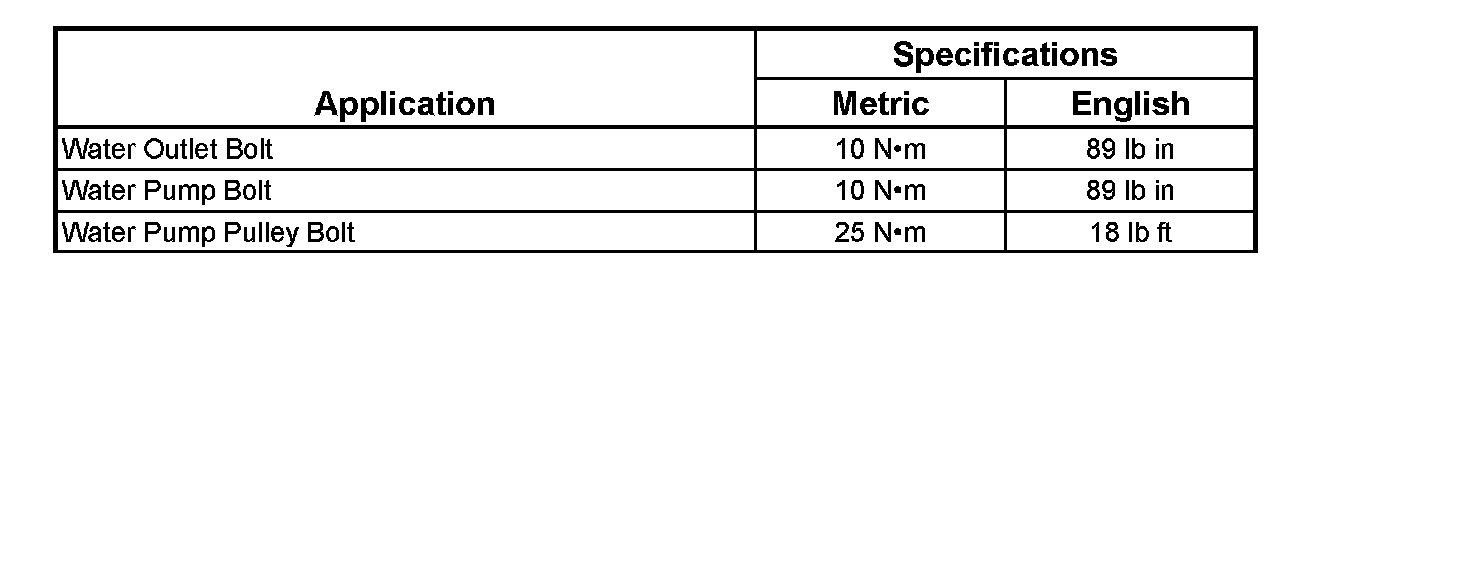

Fastener Tightening Specifications (4 Of 4):
