Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
>>

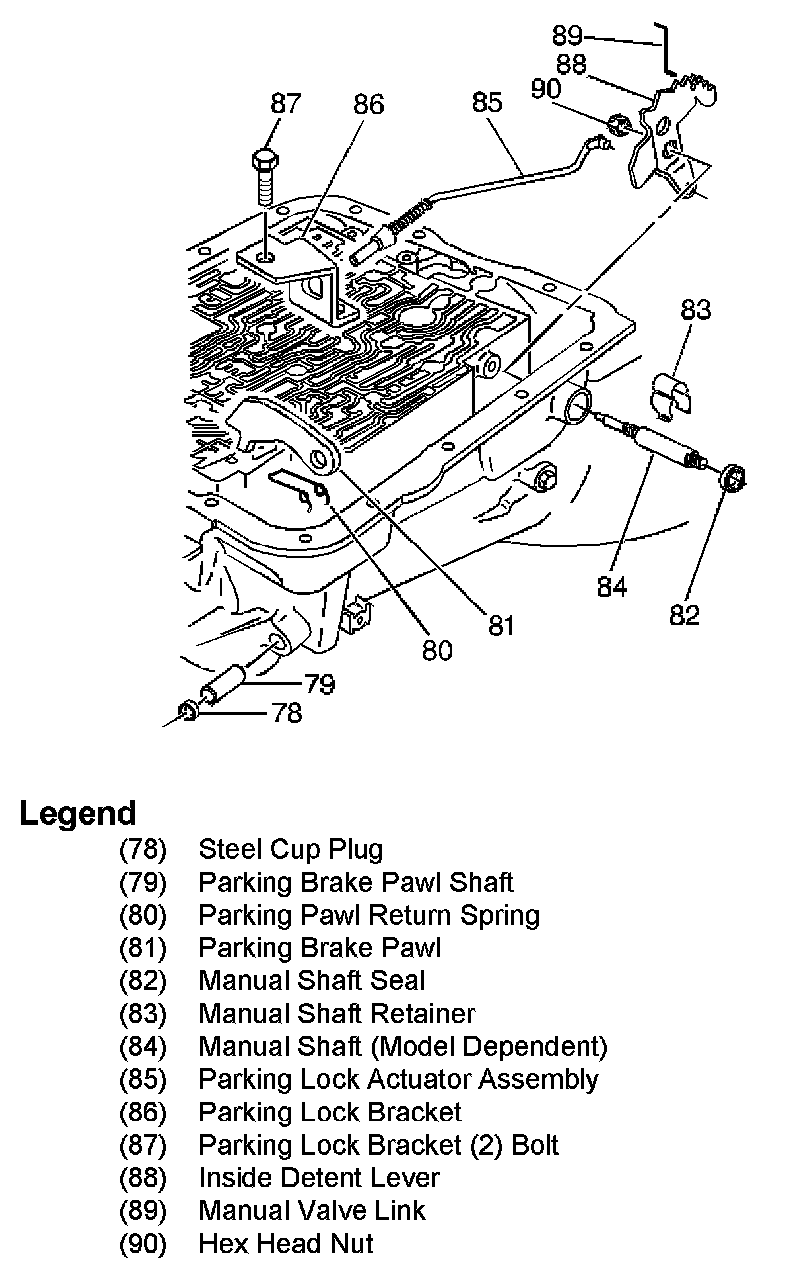

Parking Lock and Manual Shift Shaft Assembly
Parking Lock and Manual Shift Shaft Assembly
Parking Lock and Manual Shift Shaft Assembly
