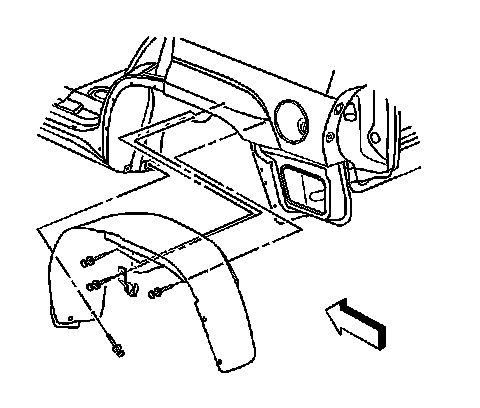

Rear Fender Liner: Service and Repair

Wheelhouse Panel Replacement

Removal Procedure




1. Remove the bolt that retains the wheelhouse panel to the rocker panel molding.
2. Remove the 2 screws that retain the wheelhouse panel to the rear fascia.
3. Remove the 4 push-pins retaining the wheelhouse panel to the wheelhouse.
4. Remove the wheelhouse panel from the vehicle.

Installation Procedure




1. Install the wheelhouse panel to the vehicle.
2. Install the 4 push-pins retaining the panel to the wheelhouse.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the 2 screws that retain the wheelhouse panel to the rear fascia.

Tighten the 2 screw to 2 N.m (18 lb in).

4. Install the bolt that retains the wheelhouse panel to the rocker panel molding.

Tighten the bolt to 7 N.m (62 lb in).
