Steering Column Disassembled View
Steering Column Disassembled View
Steering Column
Disassembled View

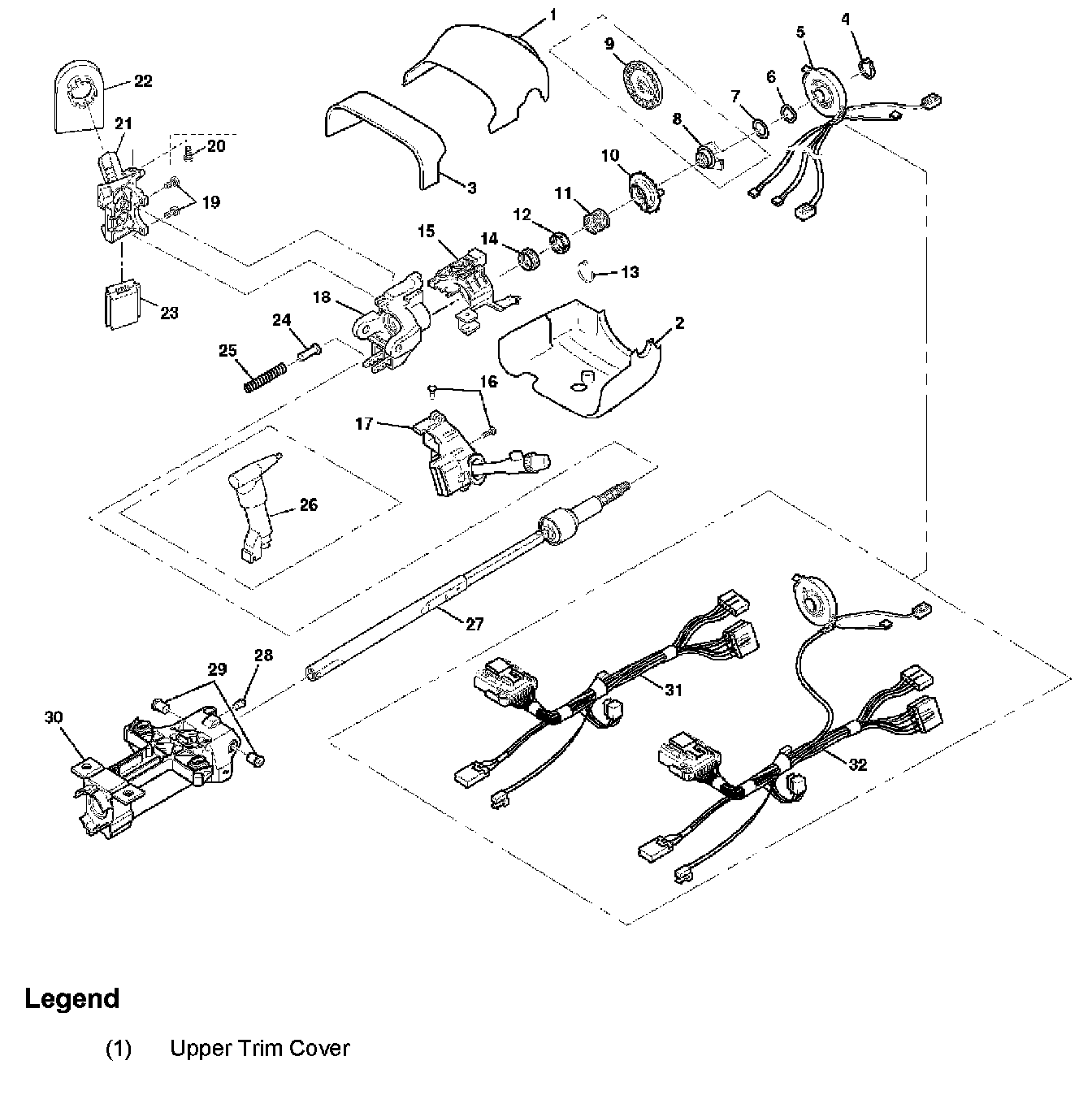

Tilt Steering Column (1 Of 2):

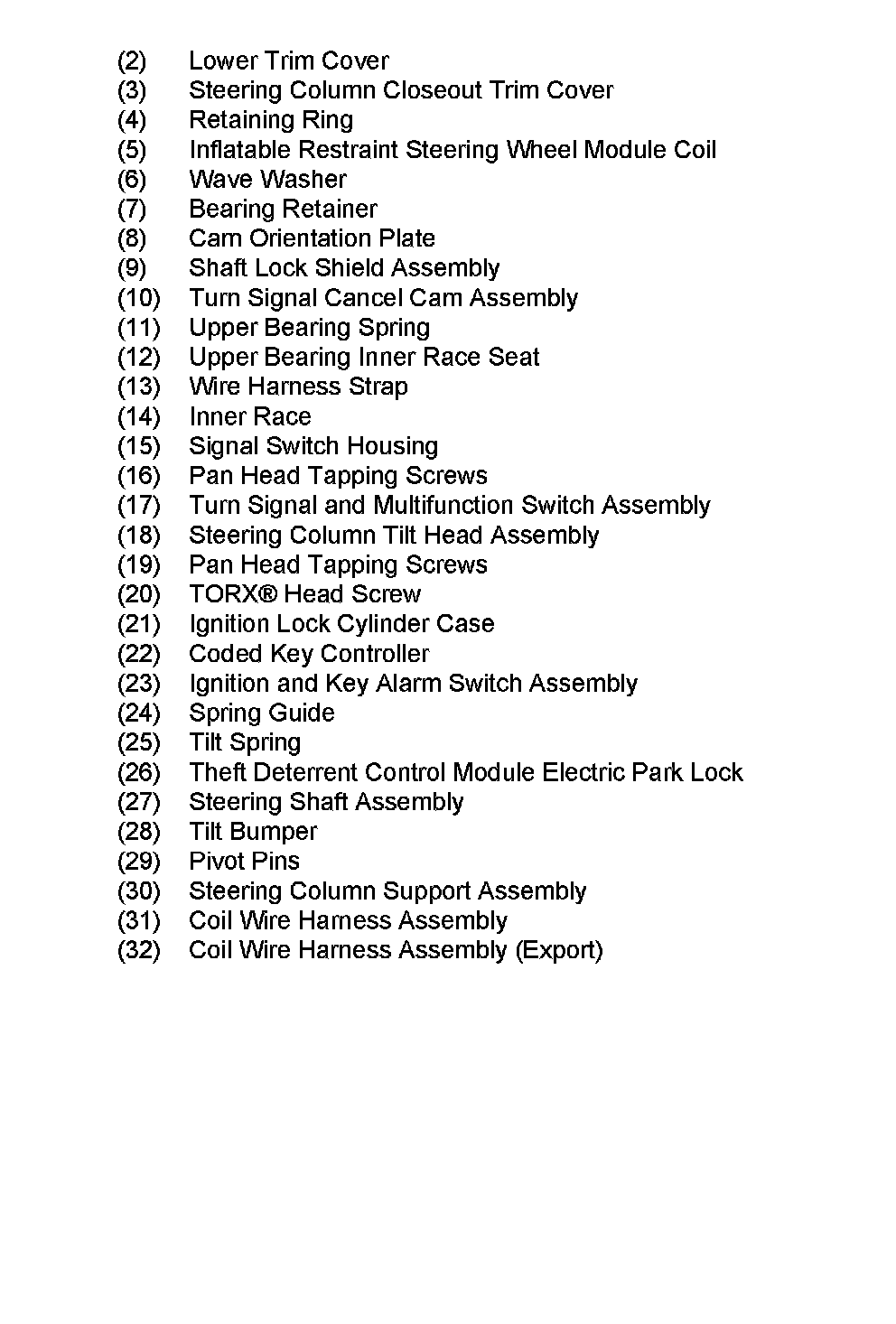

Tilt Steering Column (2 Of 2):
