Tool Usage Info Bearing, Expander, and Expander Driver

Tool Usage Information Bearing, Expander, and Expander Driver Information

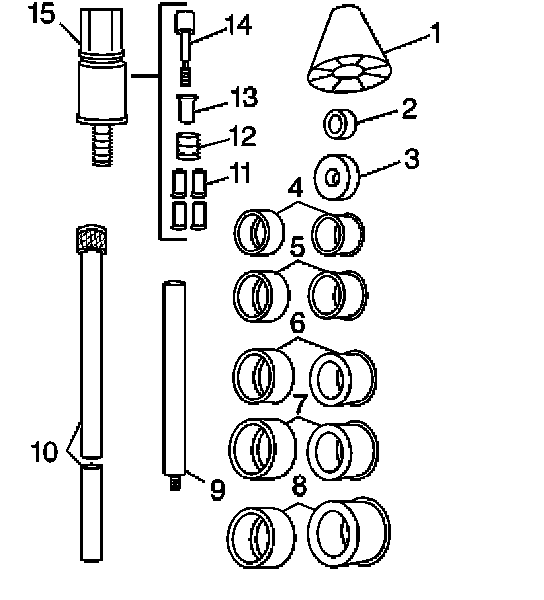

^ The tool consists of a guide cone (1), driving washers (2 or 3), expander bearing drivers (4-8), driver bars (9 or 10), expander jaws (11), expander sleeve (12), expander cone (13), expander shaft (14), and expander assembly (15).
^ Expander bearing driver number one inside diameter is 28.575 - 37.465 mm (1.125 - 1.475 inch) and is used with the expander assembly and the small washer.
^ Expander bearing driver number two inside diameter is 37.465 - 43.18 mm (1.475 - 1.7 inch) and is used with number one expanding driver and the small washer.
^ Expander bearing driver number three inside diameter is 43.18 - 48.895 mm (1.7 - 1.925 inch) and is used with number two expanding driver and the large washer.
^ Expander bearing driver number four inside diameter is 48.895 - 54.61 mm (1.925 - 2.15 inch) and is used with number three expanding driver and the large washer.
^ Expander bearing driver number five inside diameter is 54.61 - 60.325 mm (2.150 - 2.375 inch) and is used with number four expanding driver and the large washer.
^ Expander bearing driver number six inside diameter is 60.325 - 68.326 mm (2.375 - 2.69 inch) and is used with number five expanding driver and the large washer.
