Home >> Isuzu Truck >> 2005 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC - Manual >> Too Hot In Vehicle

Too Hot In Vehicle

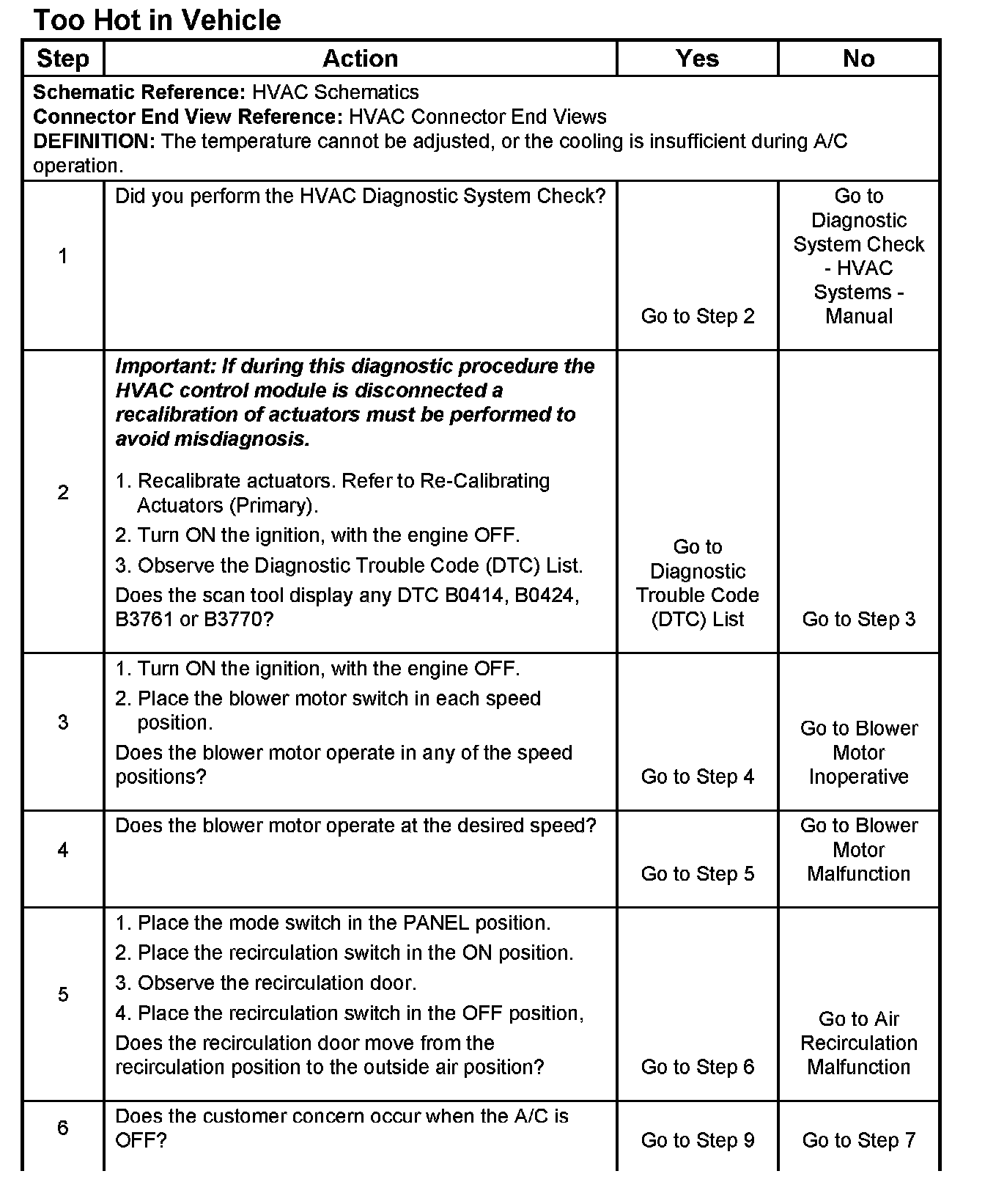

Step 1 - 6:

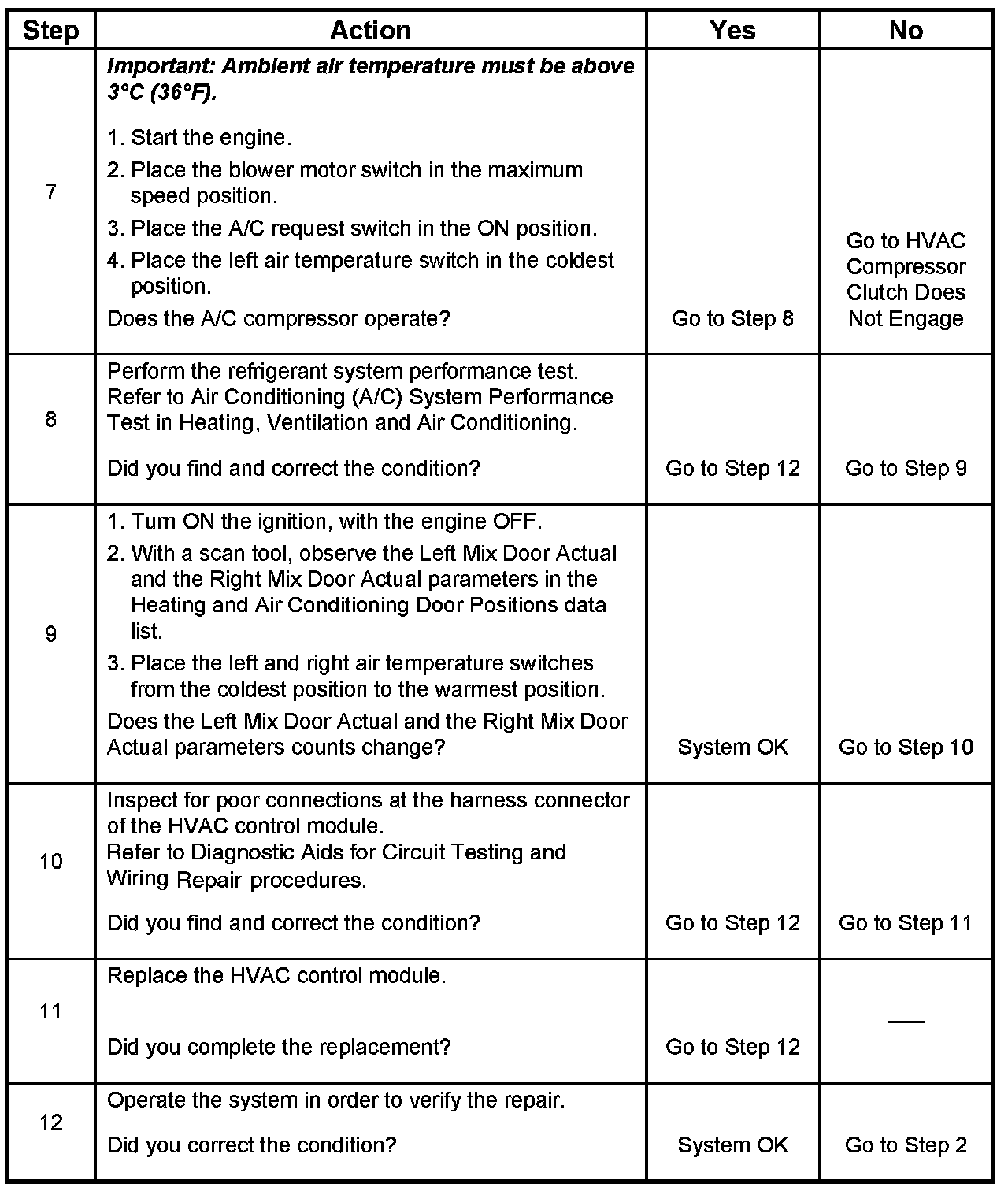

Step 7 - 12:
