Differential Assembly
>>
Rear Drive Axle - Locking/Limited Slip Rear Axle
Rear Drive Axle - Locking/Limited Slip Rear Axle

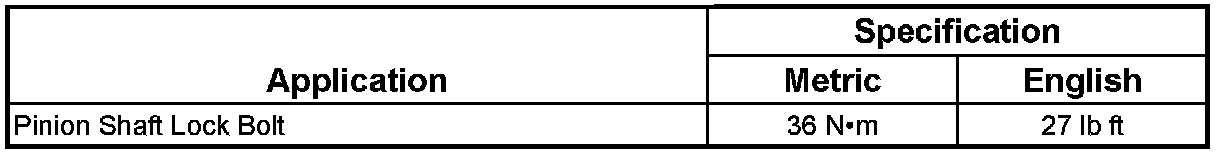

Fastener Tightening Specifications:

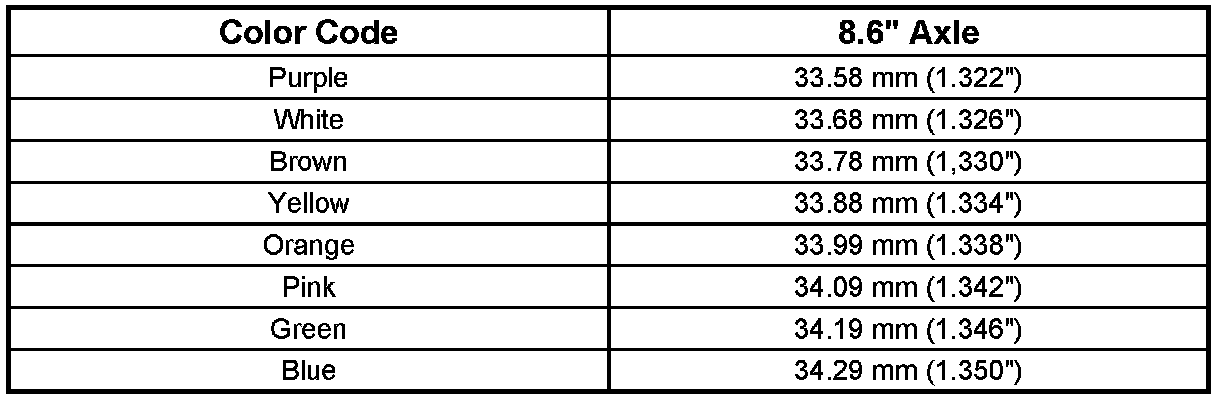

Thrust Block Sizes (Locking):
