Oil Pump Stator Shaft Bushing Replacement
Oil Pump Stator Shaft Bushing ReplacementRemoval Procedure
Tools Required
^ J21465-01 Bushing Service Set
^ J7004-1 Universal Remover

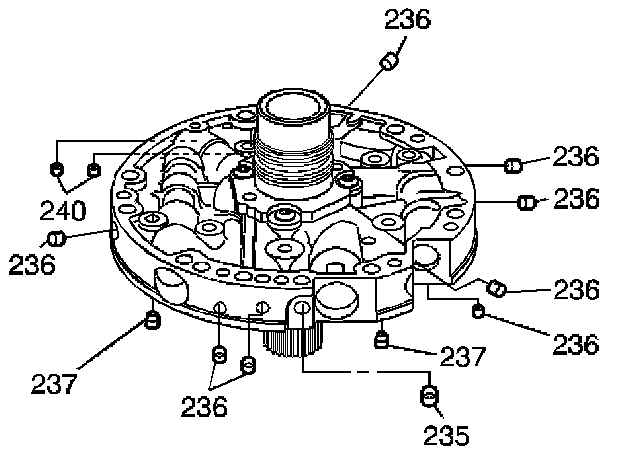

1. Inspect the pump cover, ail check valve retainer and ball assemblies (237), cup plugs (235, 236) and orifices cup plugs (238, 240).

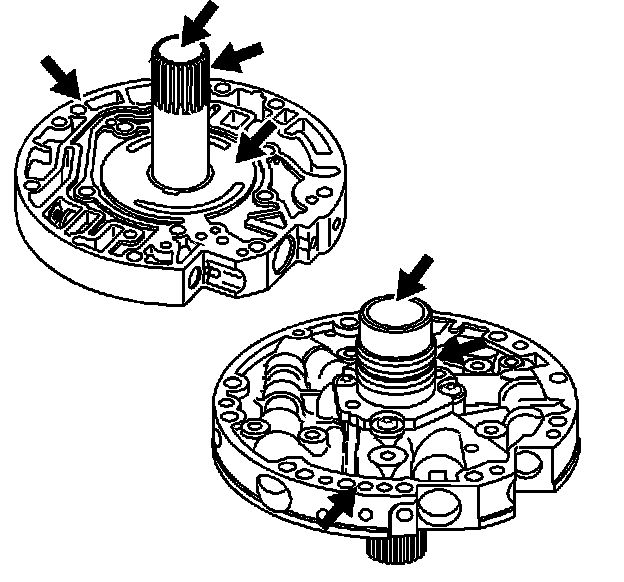

2. Inspect the pump cover for the following:
^ Worn or damaged bushings
^ Foreign material or debris
^ Porosity
^ Scored or irregular mating faces
^ Cross channel leaks
^ Ring groove damage

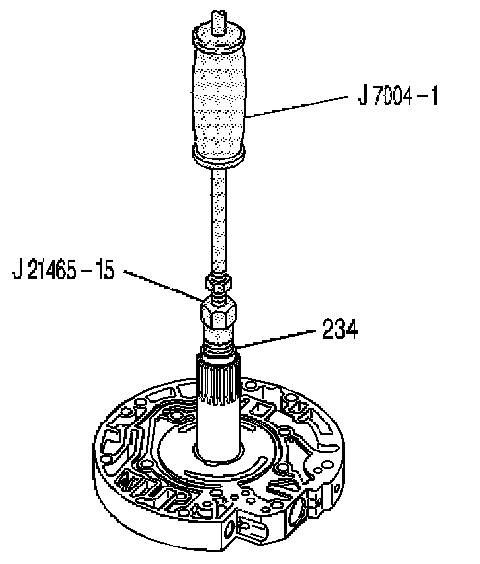

3. Using the J21465-15 with the J7004-1, remove the stator shaft front bushing (234).

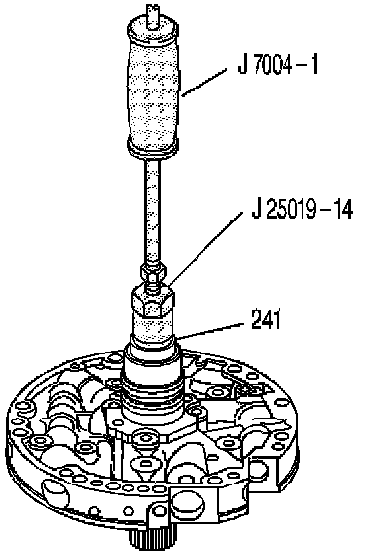

4. Using the J25019-14 with the J7004-1, remove the stator shaft rear bushing (241).
Installation Procedure
Tools Required
^ J21465-01 Bushing Service Set
^ J34196-B Transmission Bushing Service Set
^ J8092 Driver Handle

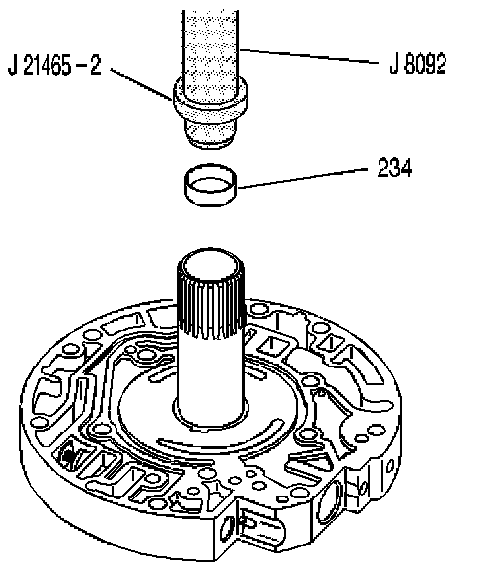

1. Using the J21465-2 and the J8092, install a new stator shaft front bushing (234).

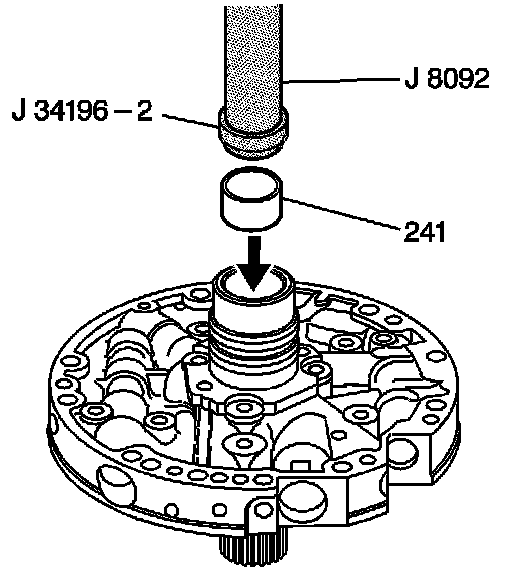

2. Using the J34196-2 which is part of kit J34196-B and the J8092, install the stator shaft rear bushing (241).
