Door Replacement - IP Storage Compartment Door

Door Replacement - Instrument Panel (I/P) Compartment

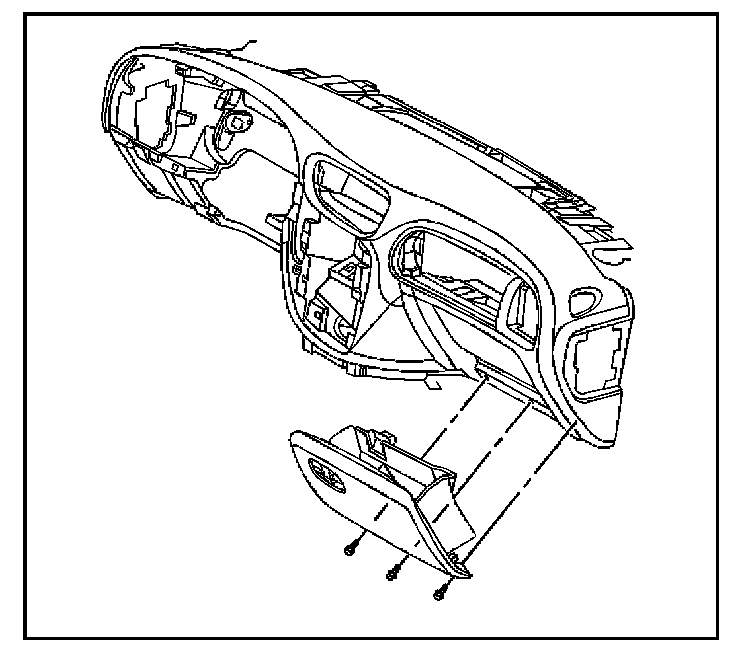

Removal Procedure
1. Remove the right closeout/insulator panel.
2. Remove the 3 storage compartment retaining screws.




3. Remove the storage compartment from the IP.

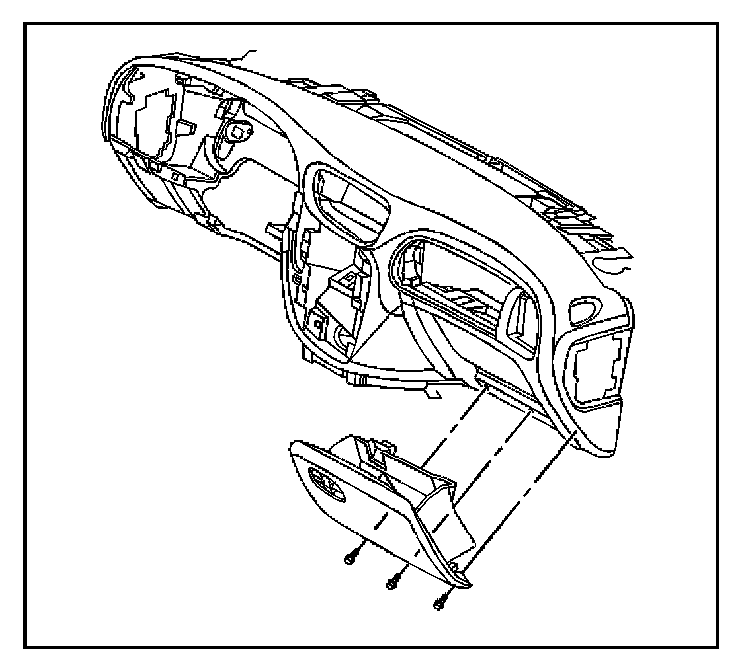

Installation Procedure
1. Position the storage compartment to the IP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the 3 screws.

Tighten: Tighten the screws to 2.5 Nm (22 lb in).




3. Install the right closeout/insulator panel.
