Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 21

Diagram Set 21

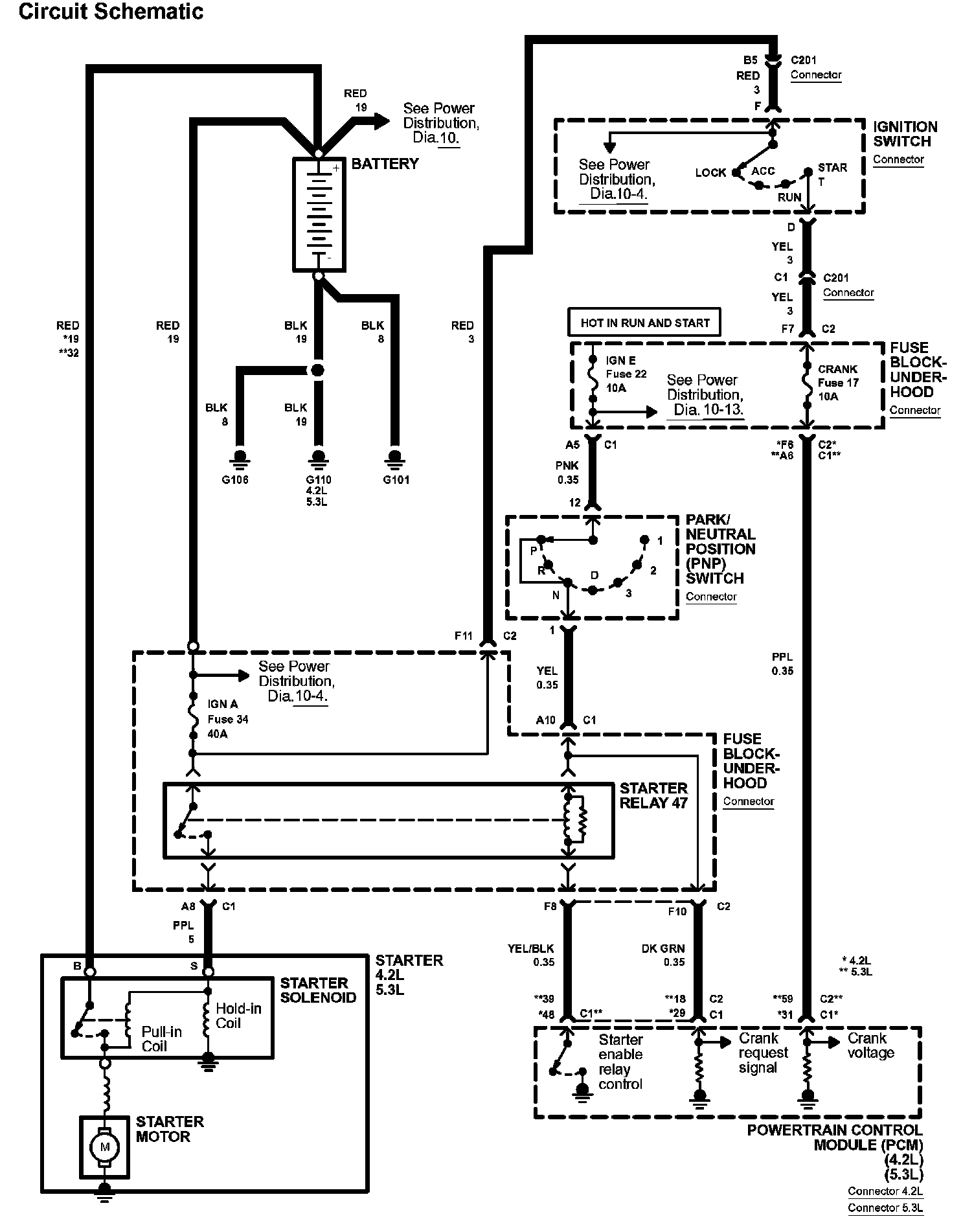

Diagram 21-0:
