Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 81
Diagram Set 81

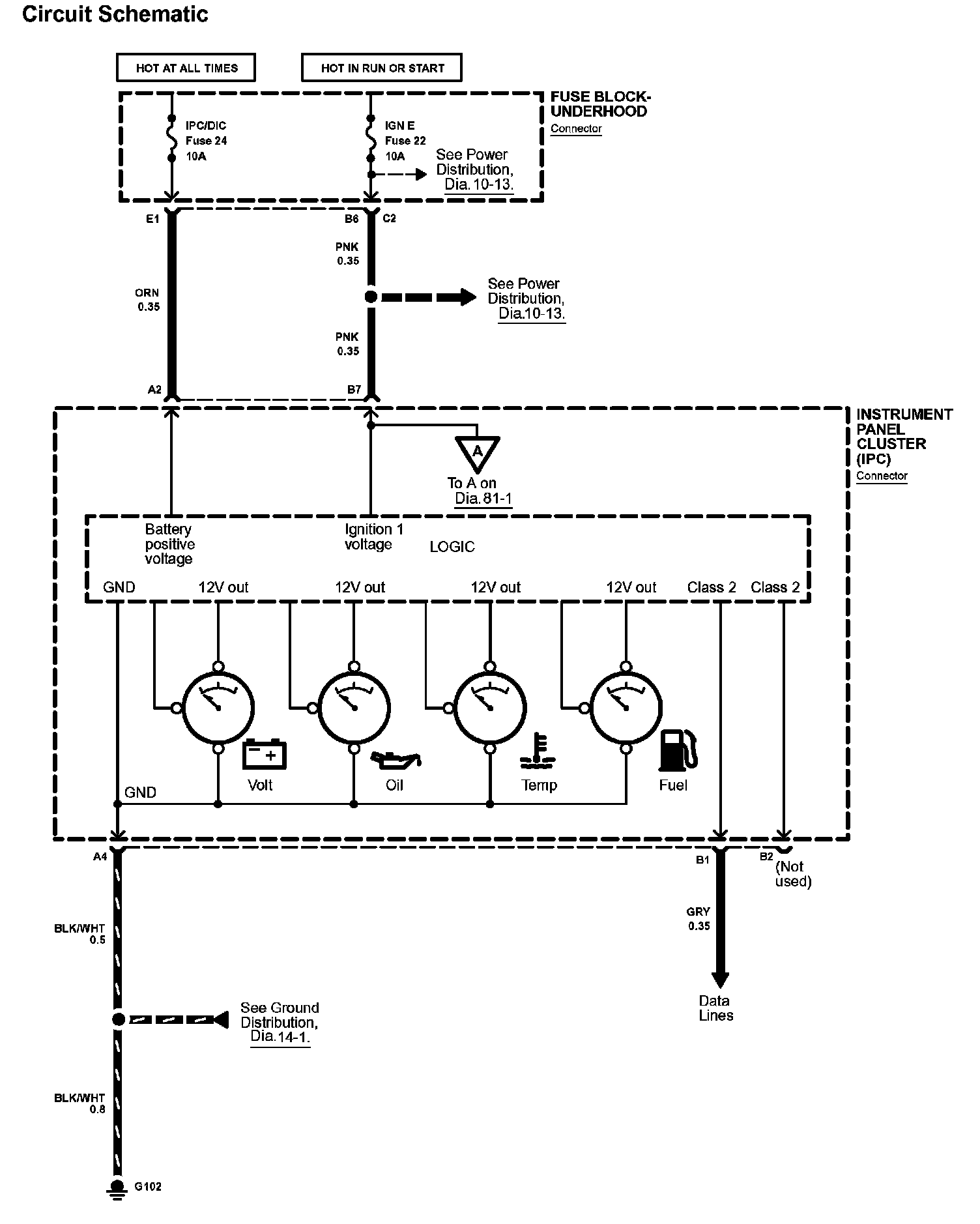

Diagram 81-0:

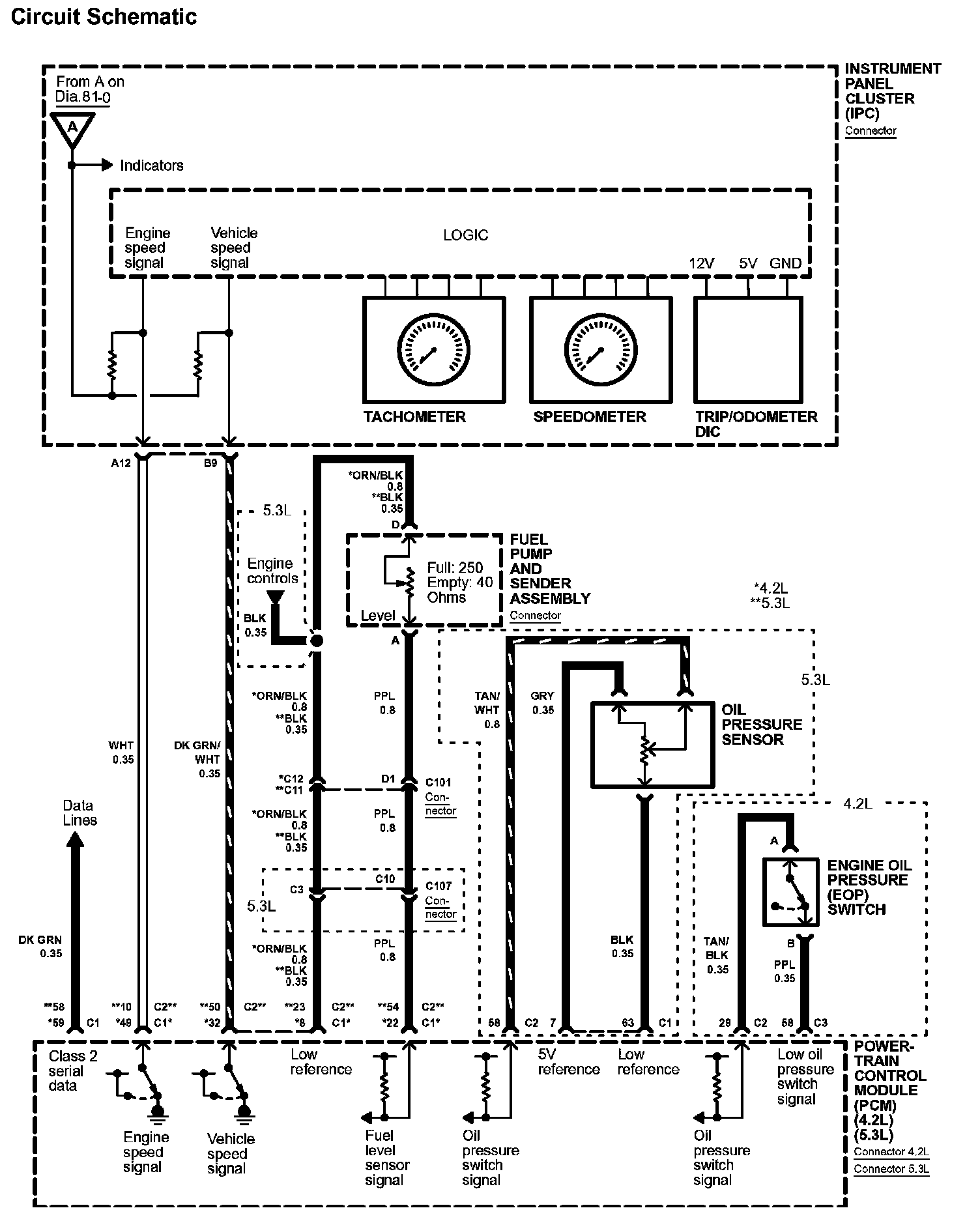

Diagram 81-1:
