Diesel Data: Automotive Repair

Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Diagrams >> Engine Exhaust and Components

Engine Exhaust and Components

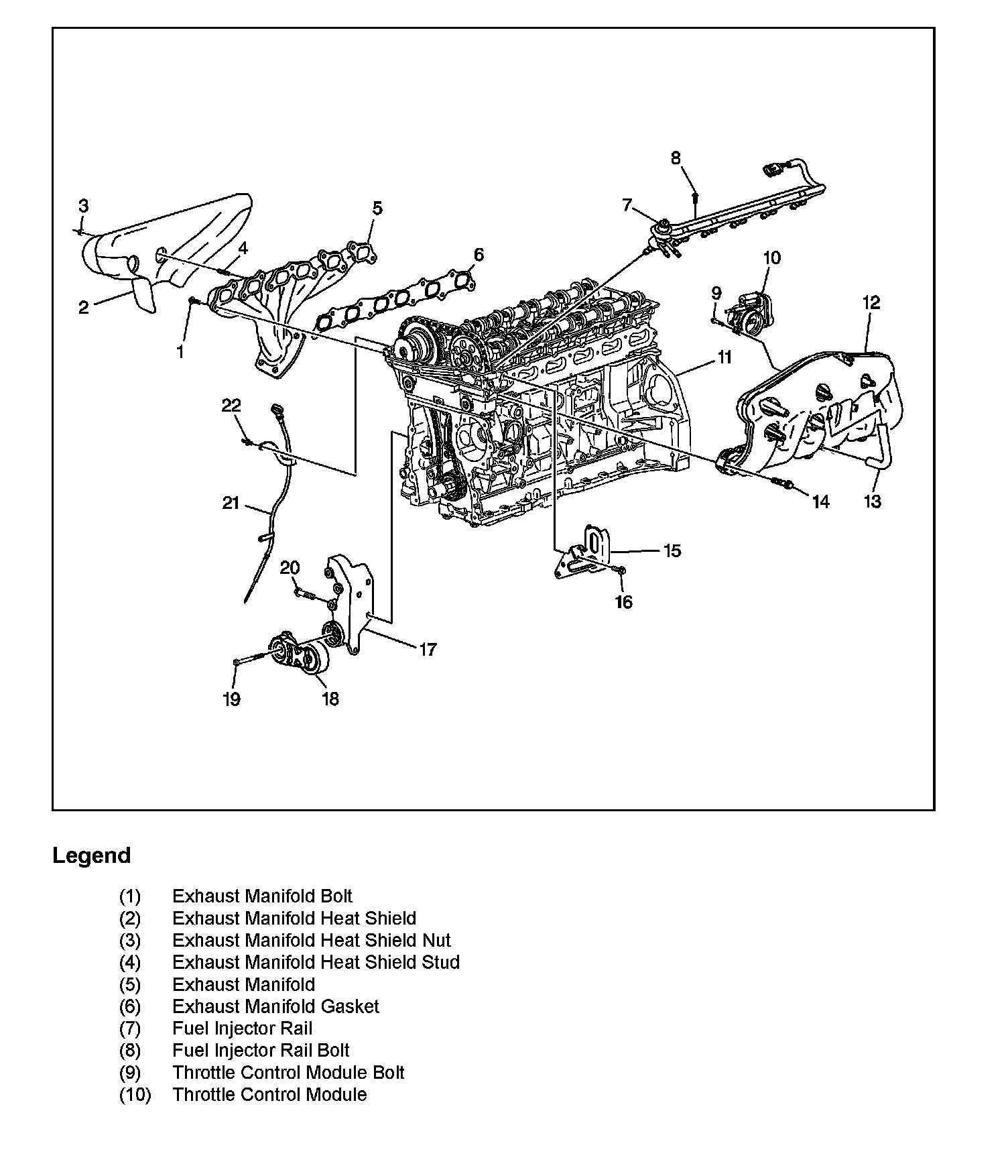

Engine Exhaust and Components (1 Of 2):

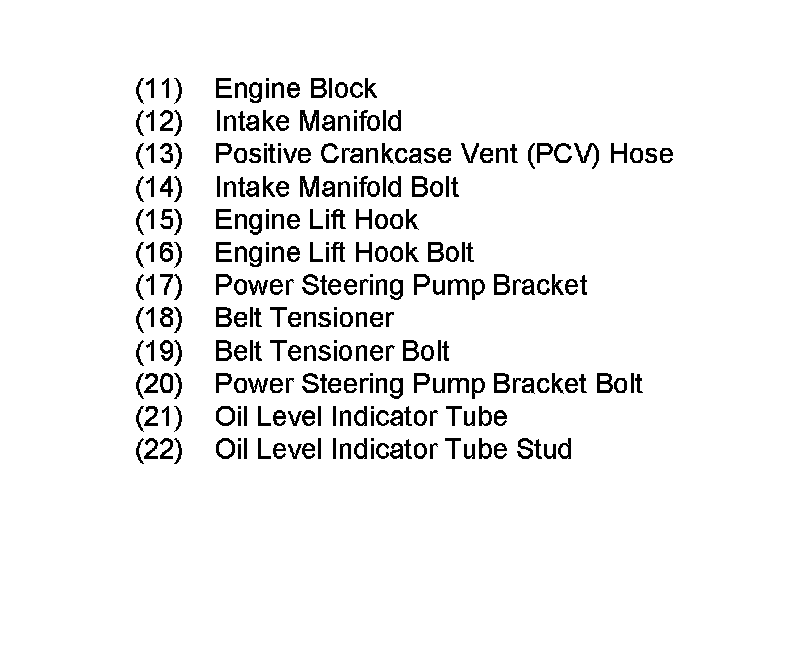

Engine Exhaust and Components (2 Of 2):
