Diesel Data: Automotive Repair

Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Diagrams >> Lower Engine Components

Lower Engine Components

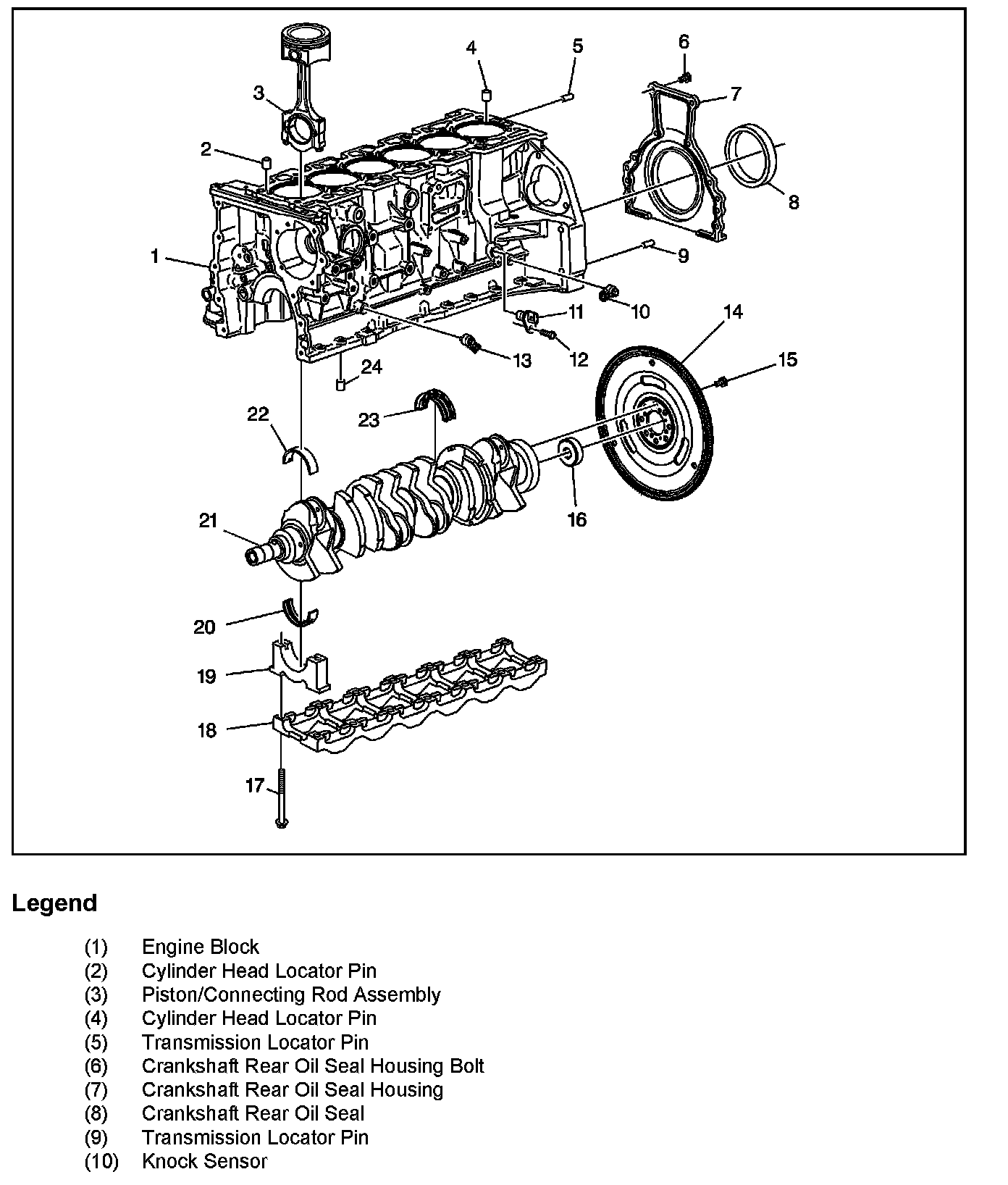

Lower Engine Components (1 Of 2):

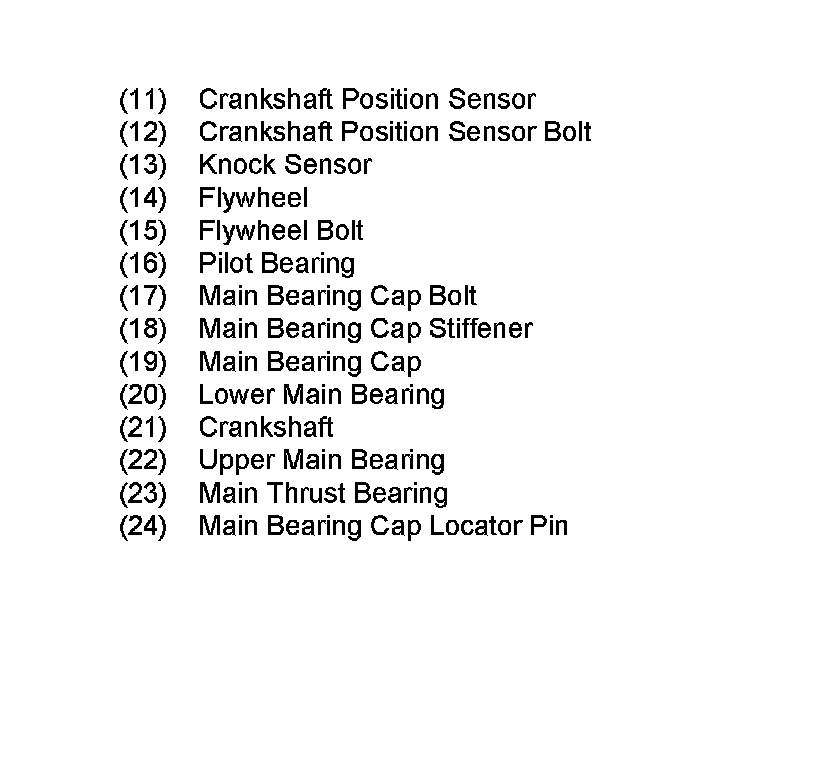

Lower Engine Components (2 Of 2):
