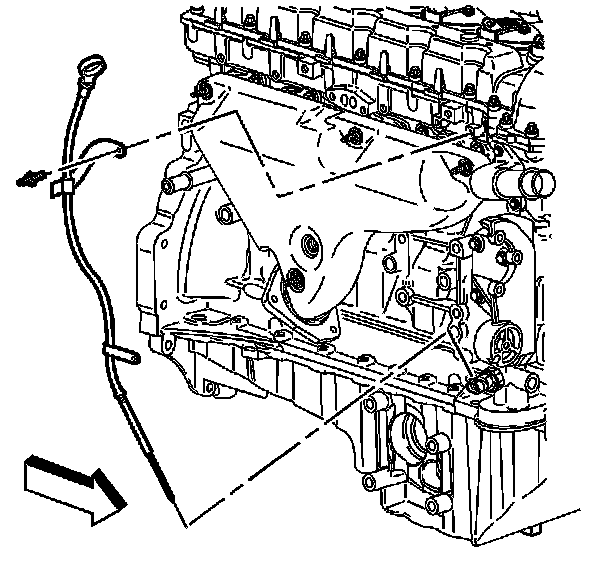

Oil Level Indicator and Tube Removal

Oil Level indicator and Tube Removal





1. Remove the oil level indicator.
2. Remove the oil level indicator tube stud.
3. Remove the oil level indicator tube.
