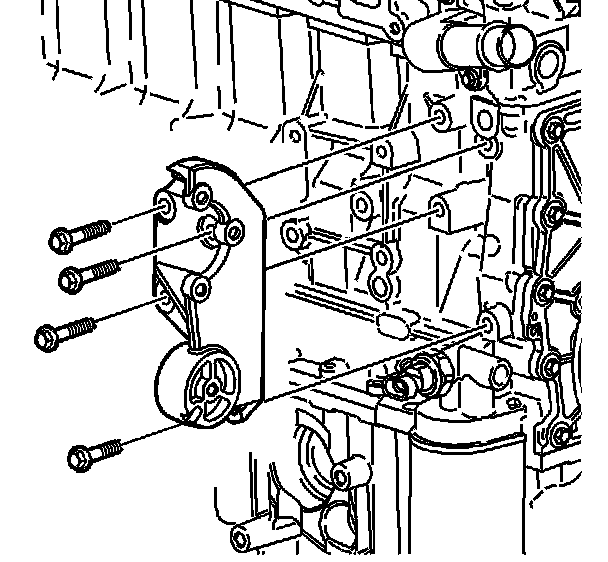

Power Steering Pump Bracket Removal

Power Steering Pump Bracket Removal





1. Remove the power steering pump bracket bolts.
2. Remove the power steering pump bracket.
