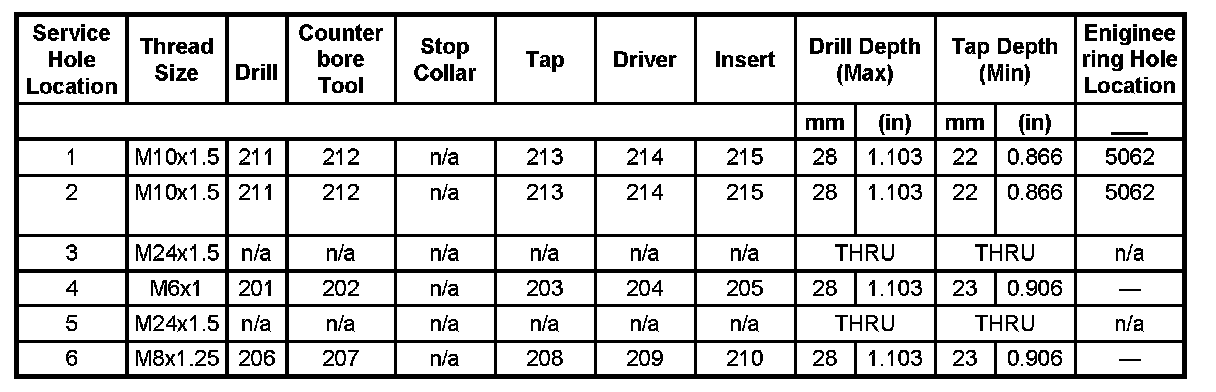

Thread Repair Specifications
>>

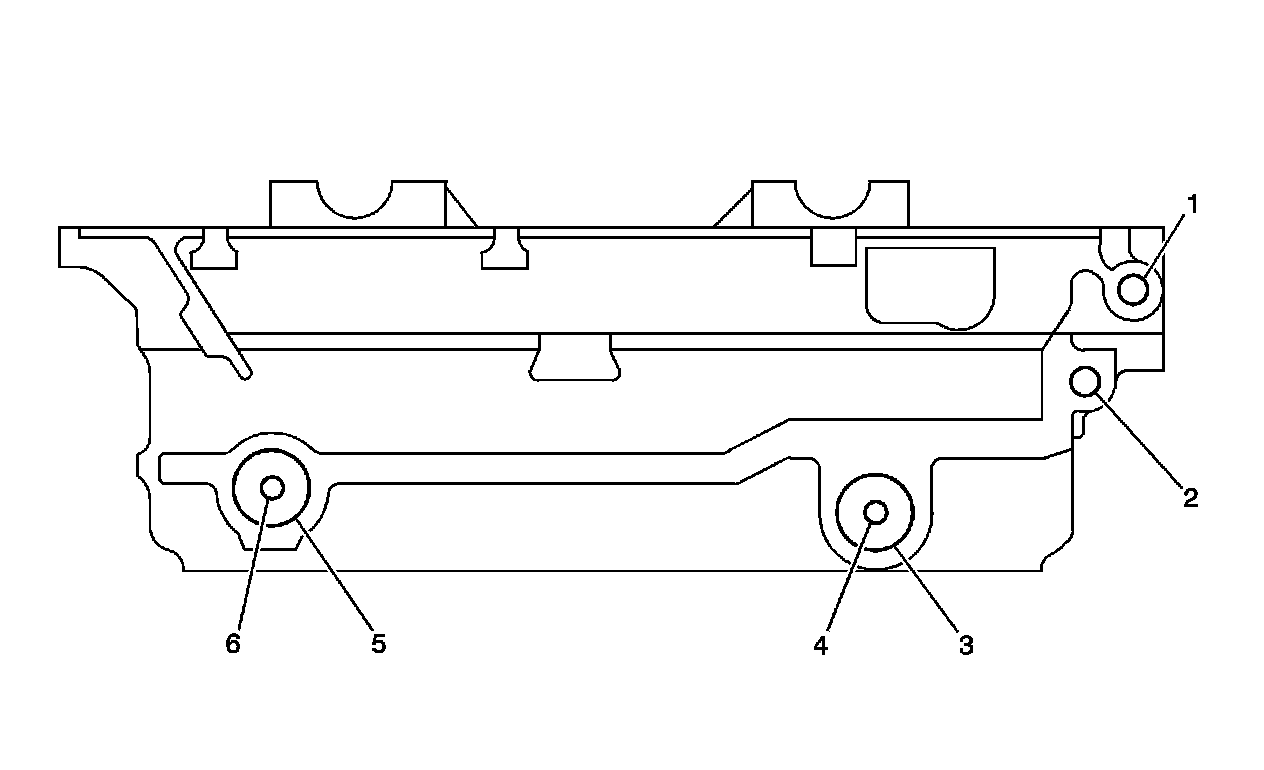

Cylinder Head - End View (Front)
Cylinder Head - End View (Front)
Cylinder Head - End View (Front)
