Evaporator Block




Evaporator Block Replacement - Auxiliary

Removal Procedure
1. Remove the HVAC module-auxiliary.
2. Remove the torx studs from the evaporator block-auxiliary.

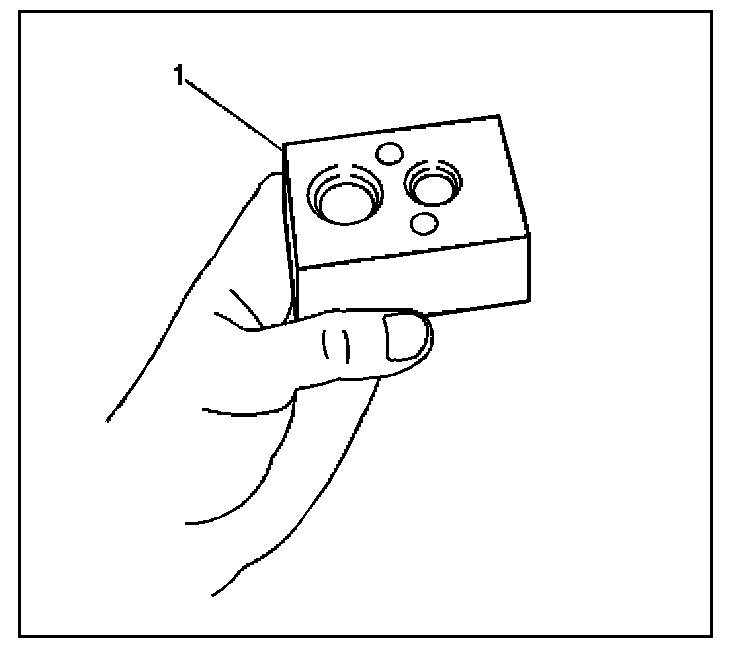

3. Remove the evaporator block-auxiliary (1) from the HVAC module-auxiliary.

Installation Procedure

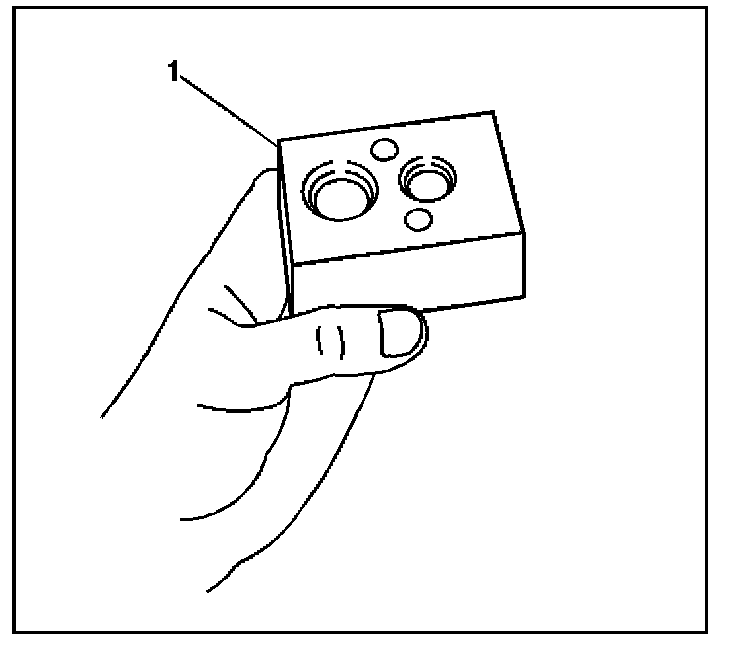

1. Install the evaporator block-auxiliary (1) to the HVAC module-auxiliary.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the torx studs to the evaporator block-auxiliary.

Tighten
Tighten the studs to 14 Nm (124 lb in).




3. Install the HVAC module-auxiliary.
