Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC - Automatic >> Blower Motor Always On

Blower Motor Always On

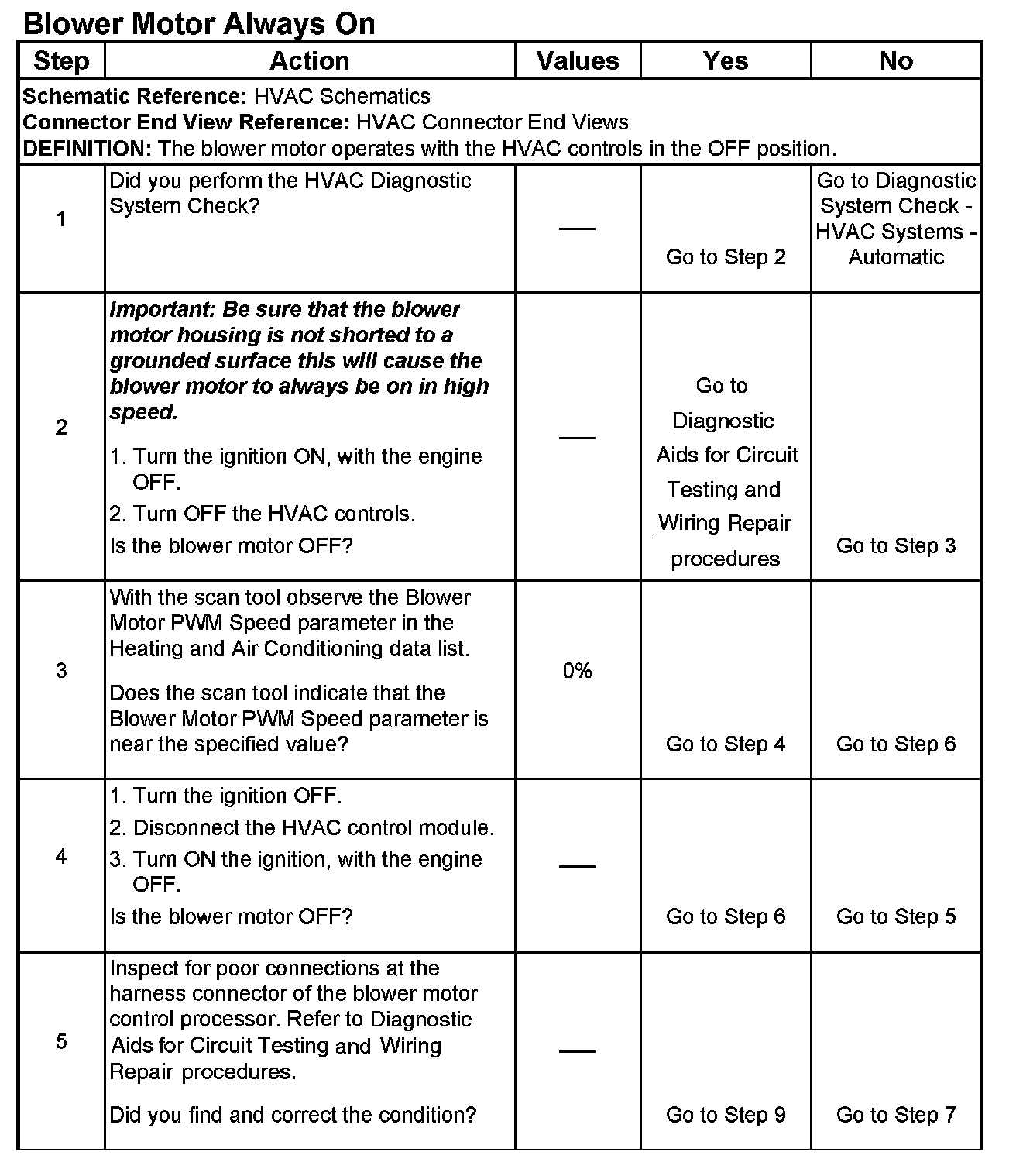

Step 1 - 5:

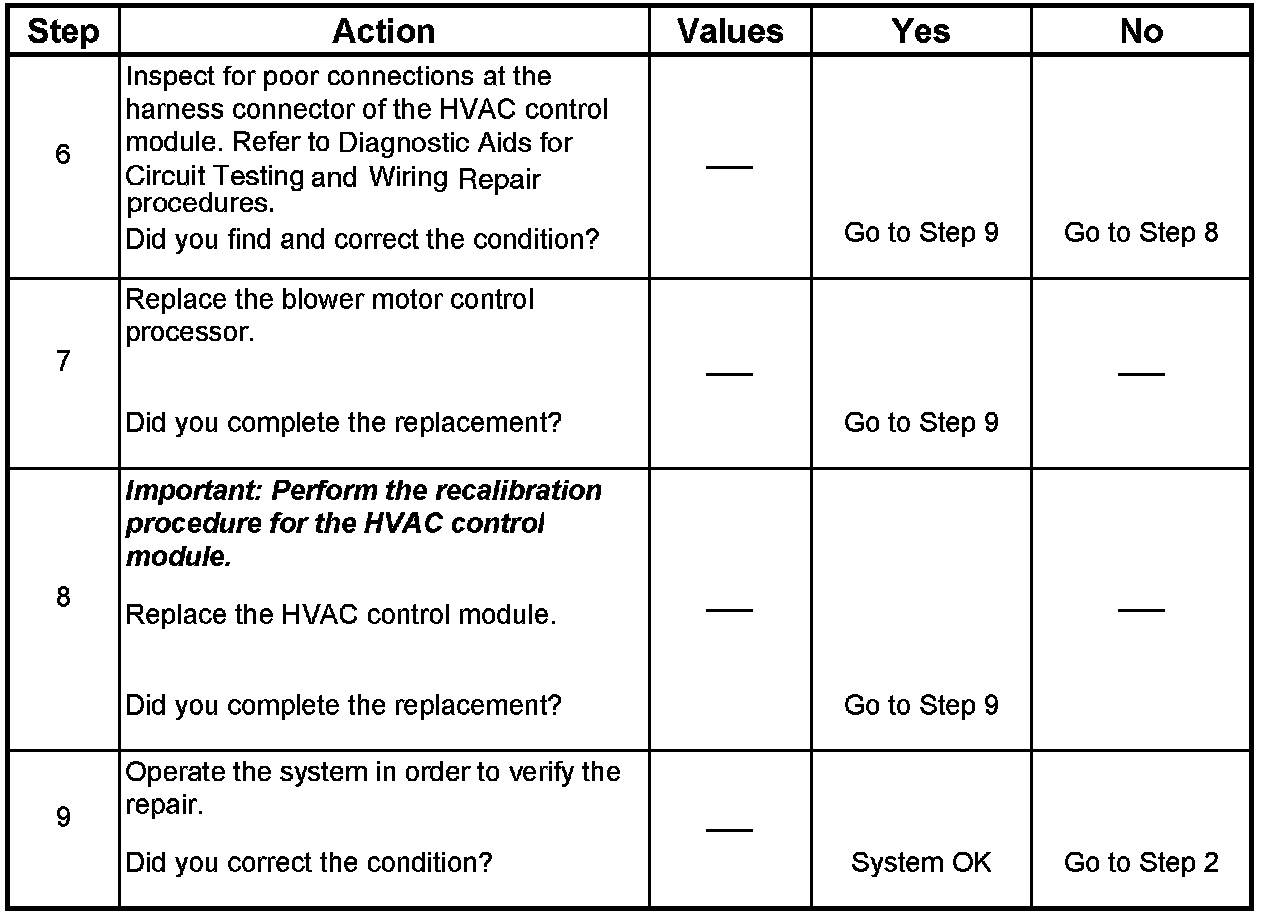

Step 6 - 9:
