Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
HVAC - Manual
>>
Air Recirculation Malfunction
Air Recirculation Malfunction

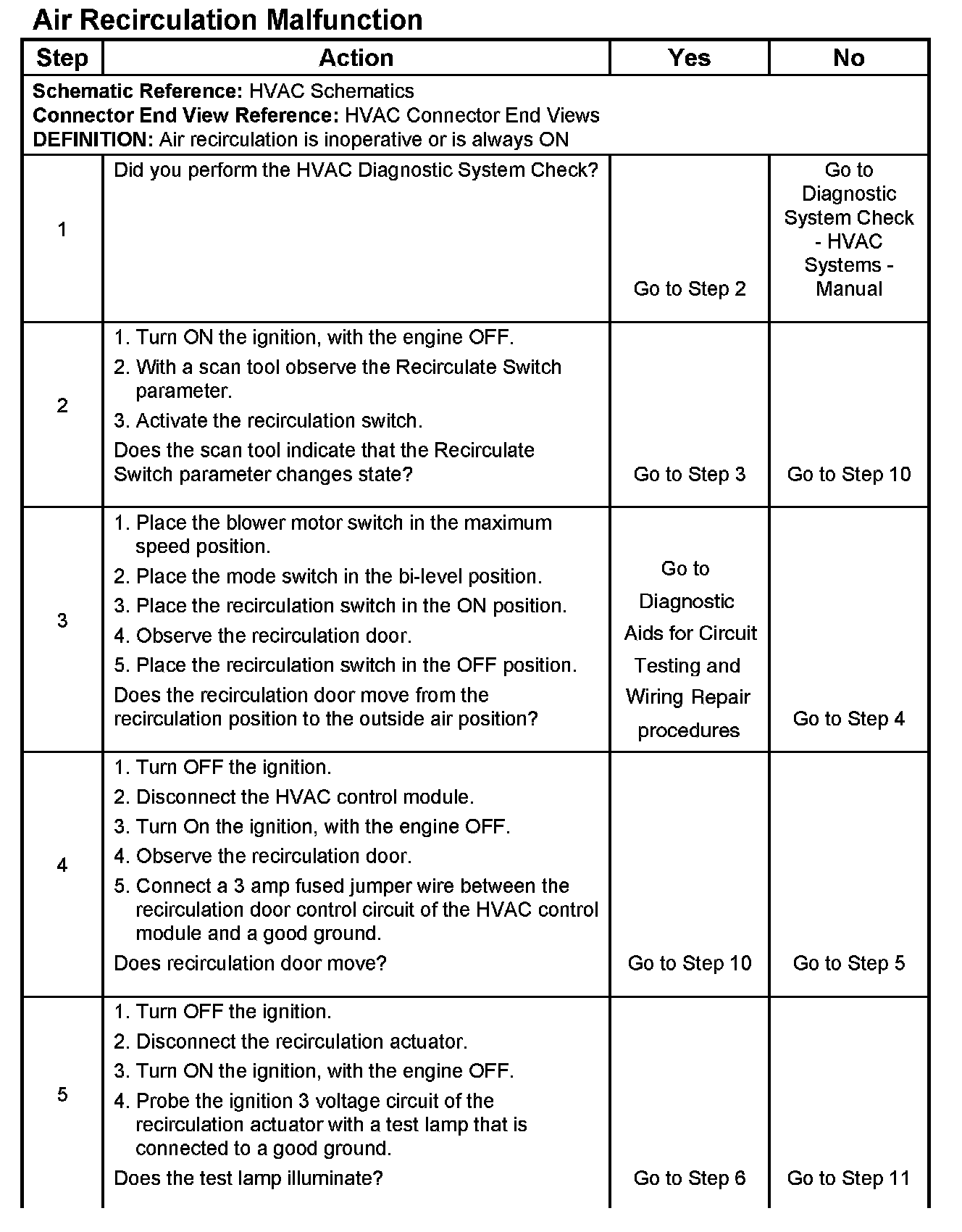

Step 1 - 5:

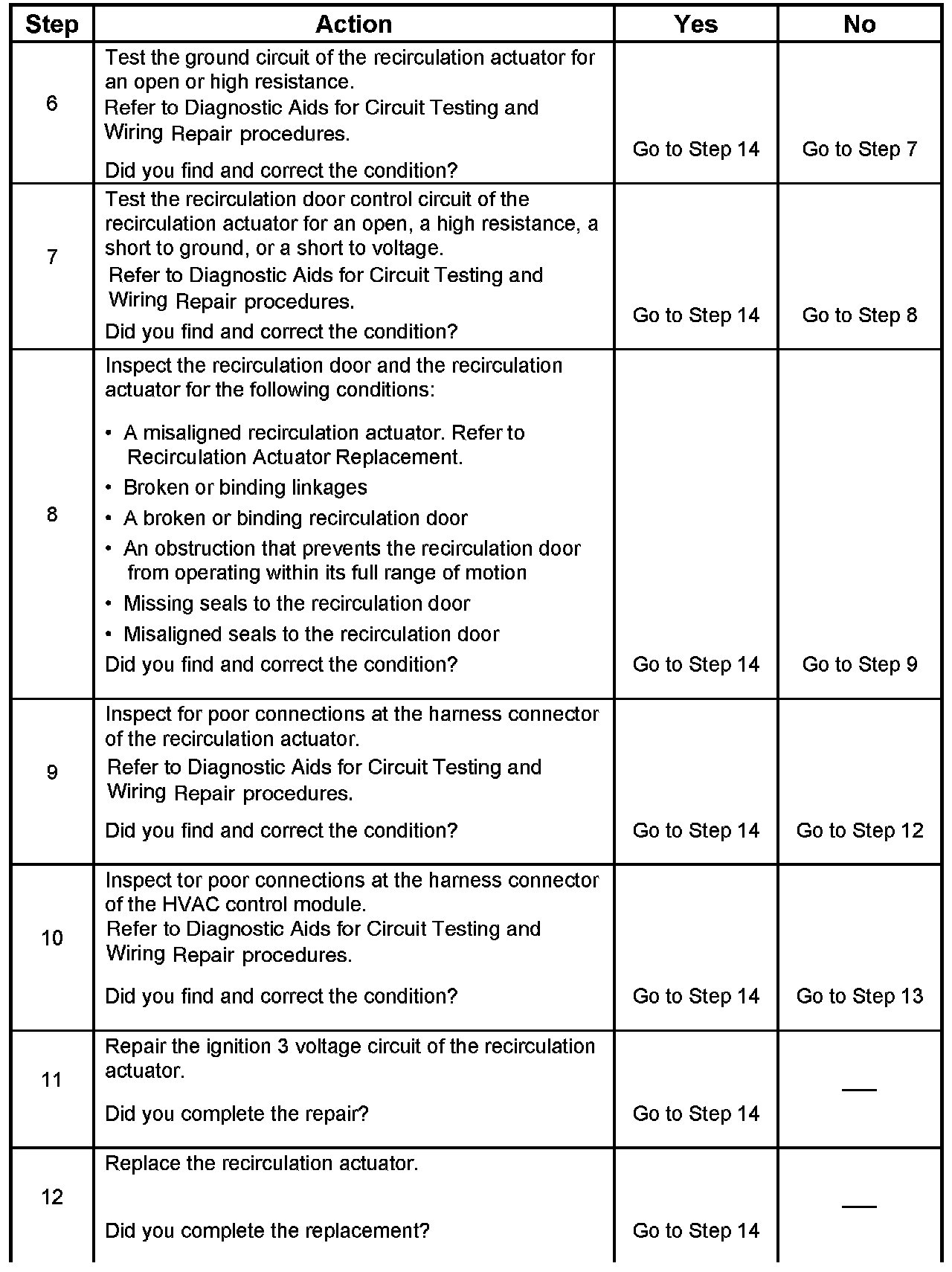

Step 6 - 12:

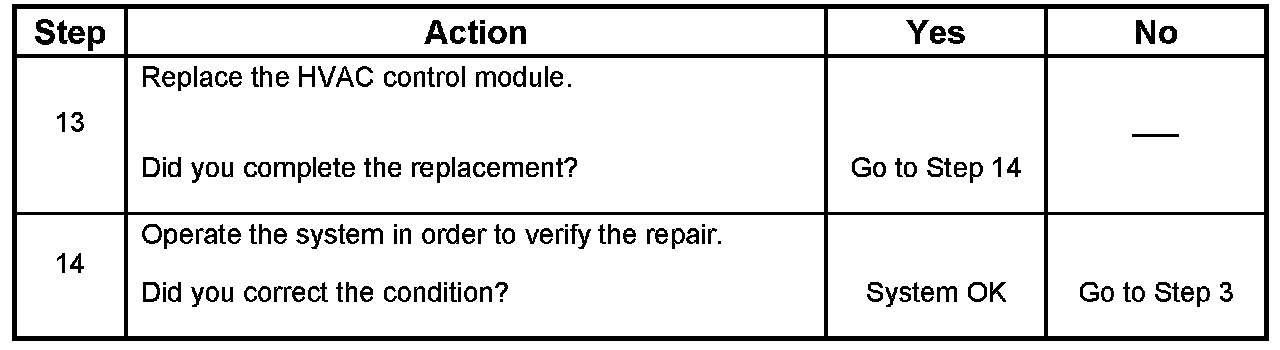

Step 13 - 14:
