Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Locations >> Connector Locations >> C-1 to C-308 >> C-5

C-5

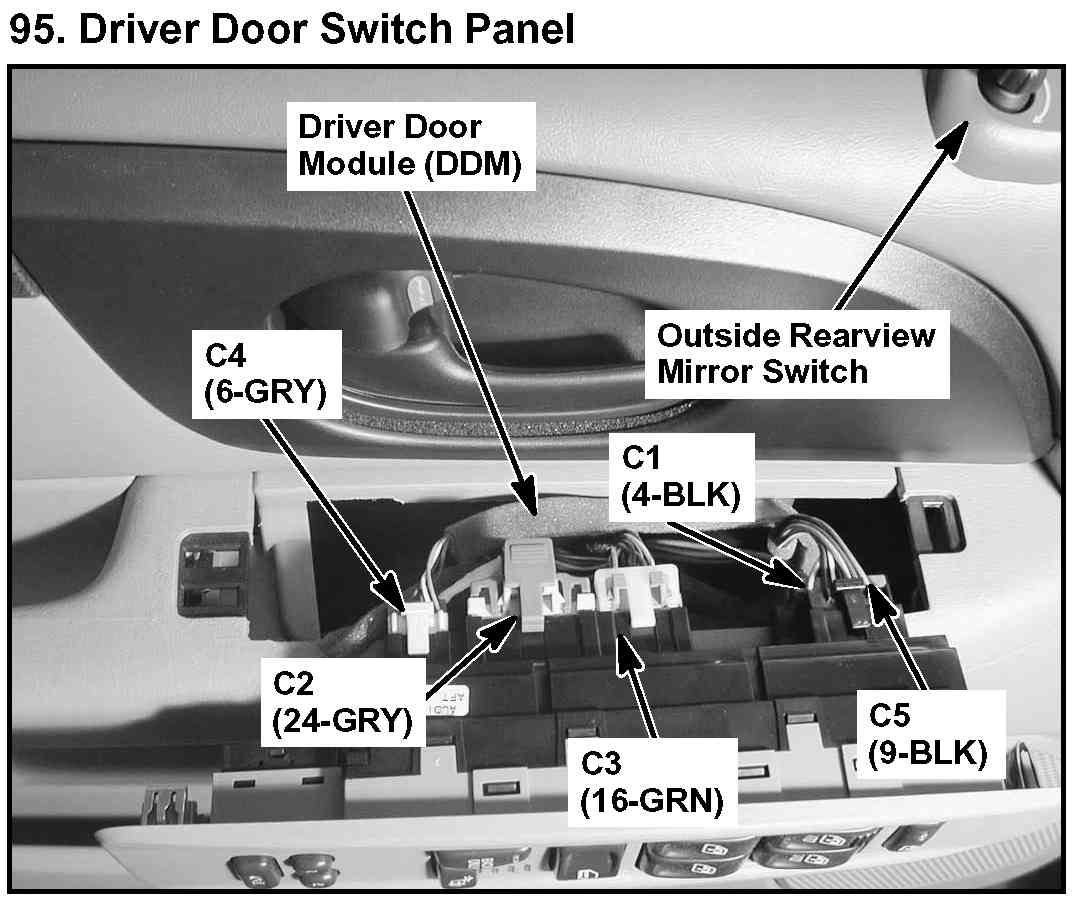

95. Driver Door Switch Panel:
