Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Grounding Point
>>
Locations
>>
Ground Splice Pack Views
Ground Splice Pack Views

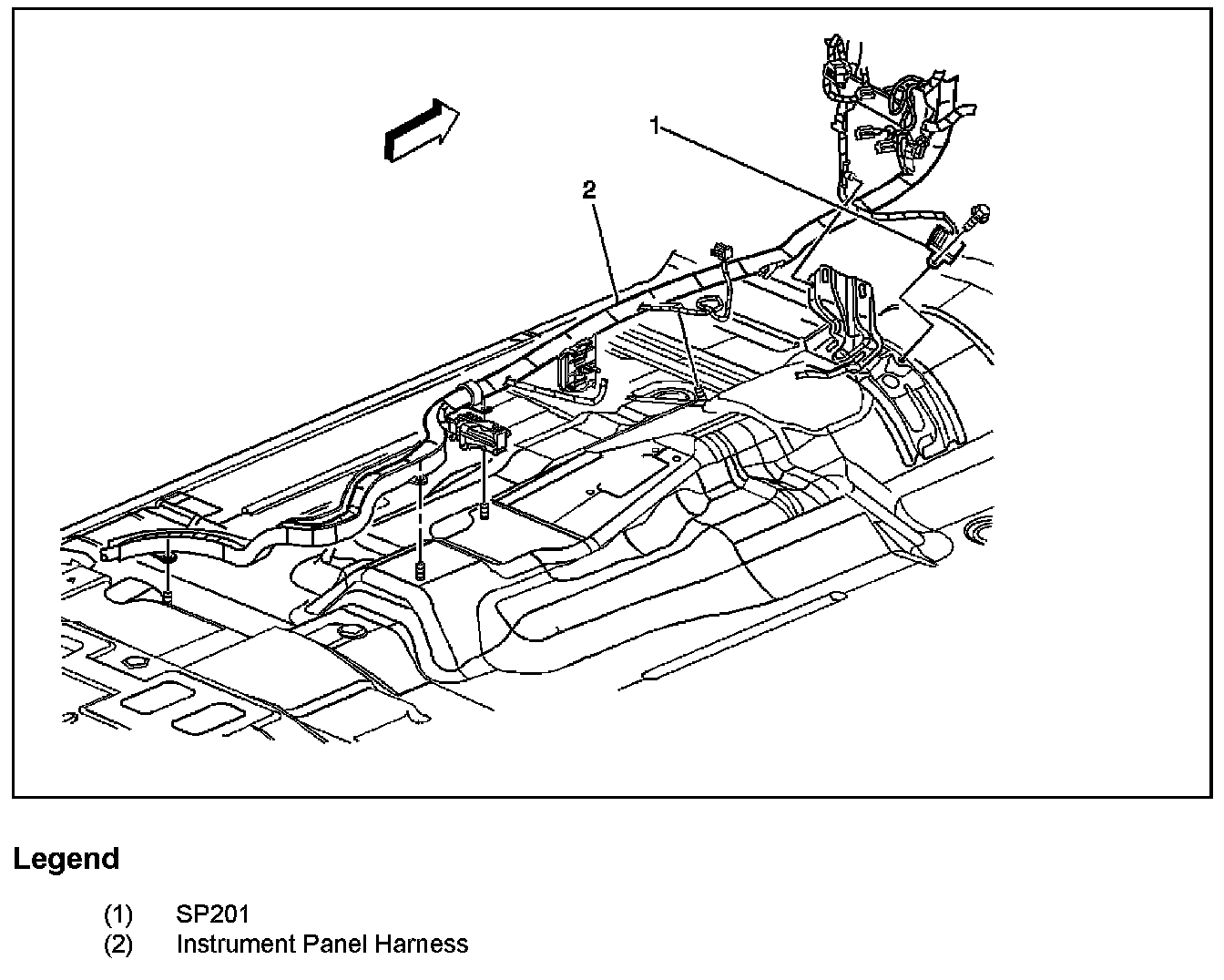

Ground Splice Pack, SP201:
