Seat Belt Buckle Replacement - Center Rear

Seat Belt Buckle Replacement - Center Rear

Removal Procedure
1. Remove the seat from the vehicle.
2. Remove the trim panel from the seat cushion.

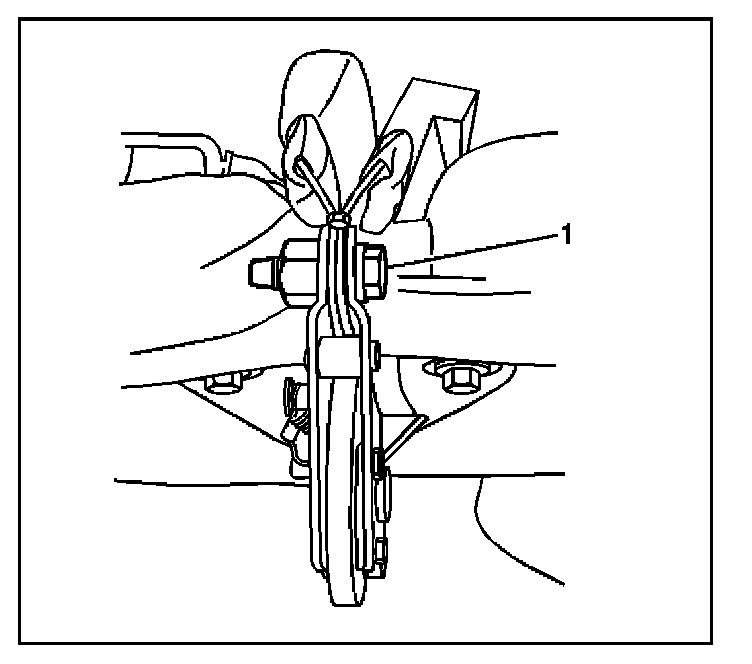

3. Remove the bolt (1) securing the center buckles to the mid-position floor latch assembly.
4. Remove the center seat belt buckles.

Installation Procedure

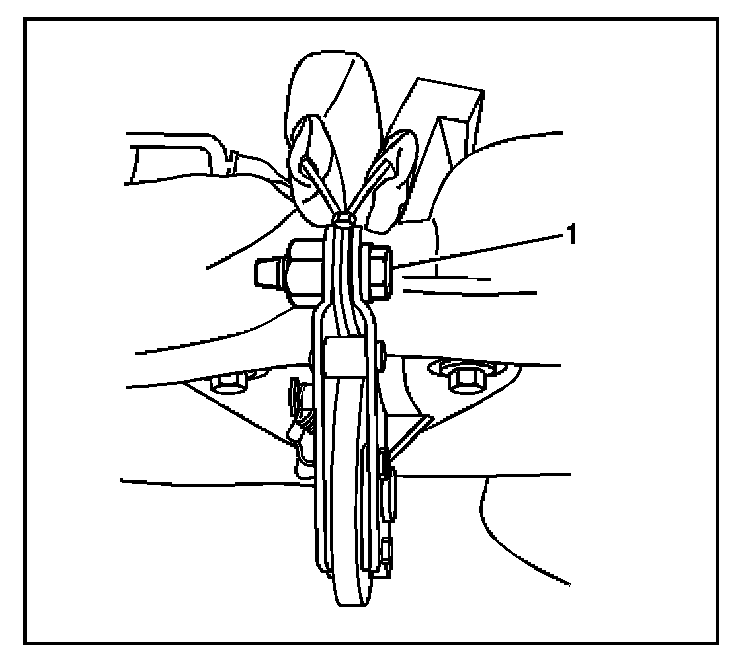

1. Install the center seat belt buckles to the mid-position floor latch assembly with the bolt (1).

Tighten: Tighten the rear center seat belt buckle assembly bolt to 60 Nm (44 lb ft).

2. Install the trim panel to the seat cushion.
3. Install the seat in the vehicle.
