Seat Belt Buckle Replacement - Front

Seat Belt Buckle Replacement - Front

Removal Procedure
1. Remove the front seat assembly.

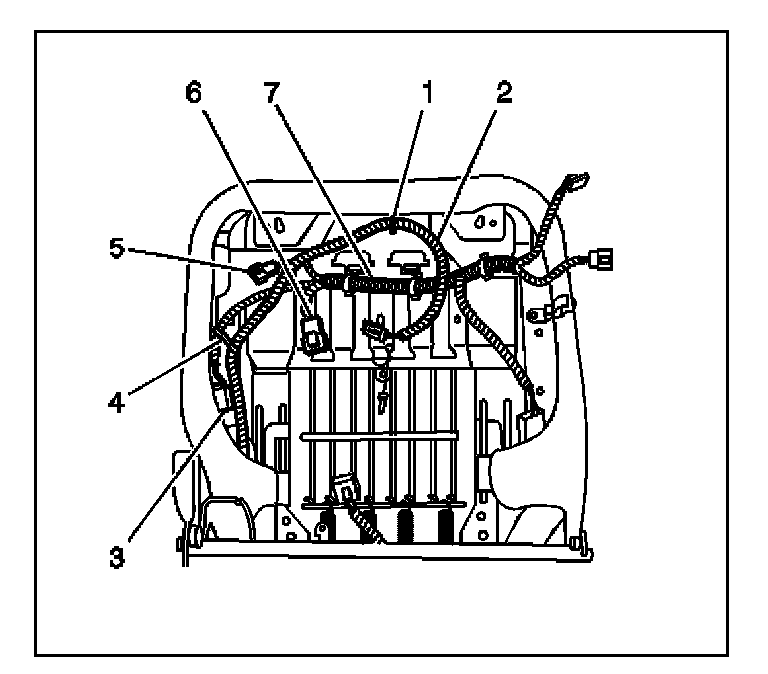

2. Disconnect the seat belt reminder wiring harness (3) on the driver's seat.

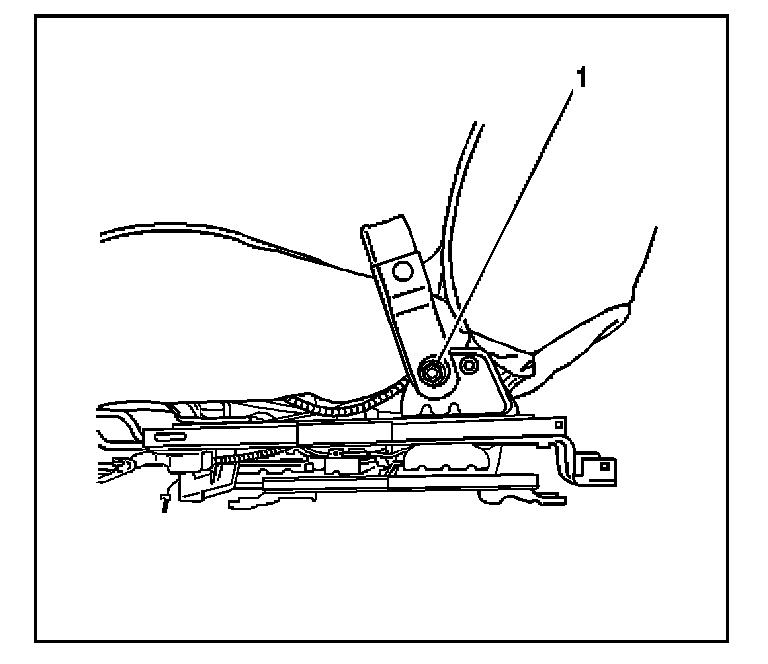

3. Remove the nut (1) which retains the seat belt buckle to the seat assembly.




4. Remove the seat belt buckle from the seat assembly.

Installation Procedure
1. Install the seat belt buckle to the seat assembly.

NOTE: Refer to Fastener Notice in Cautions and Notices.




2. Install the nut (1) which retains the seat belt buckle to the seat assembly.

Tighten: Tighten the front seat belt buckle nut to 52 Nm (38 lb ft).

3. Connect the seat belt reminder wiring harness (3) on the driver's seat.




4. Install the front seat assembly.
