Seat Belt Side Buckle Replacement - Rear
Seat Belt Side Buckle Replacement - RearRemoval Procedure

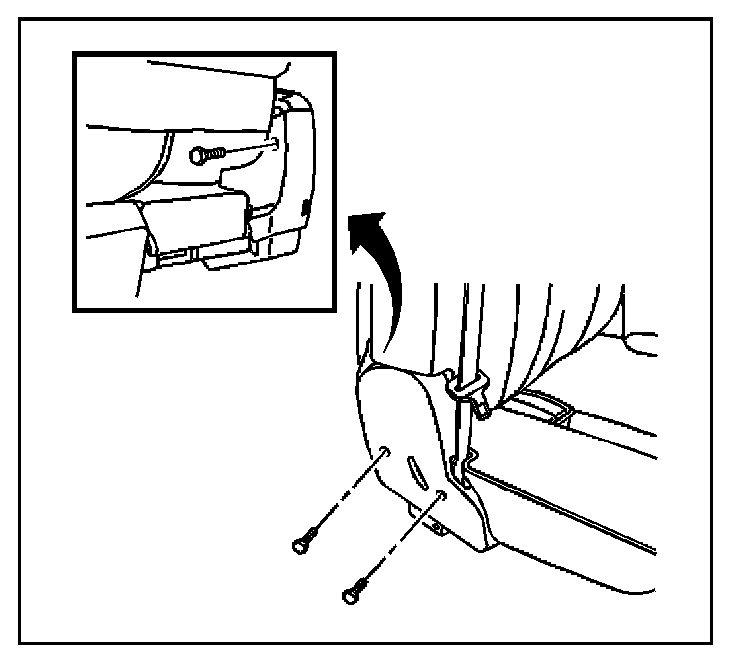

1. Remove the 3 screws securing the inboard rear seat back hinge cover.

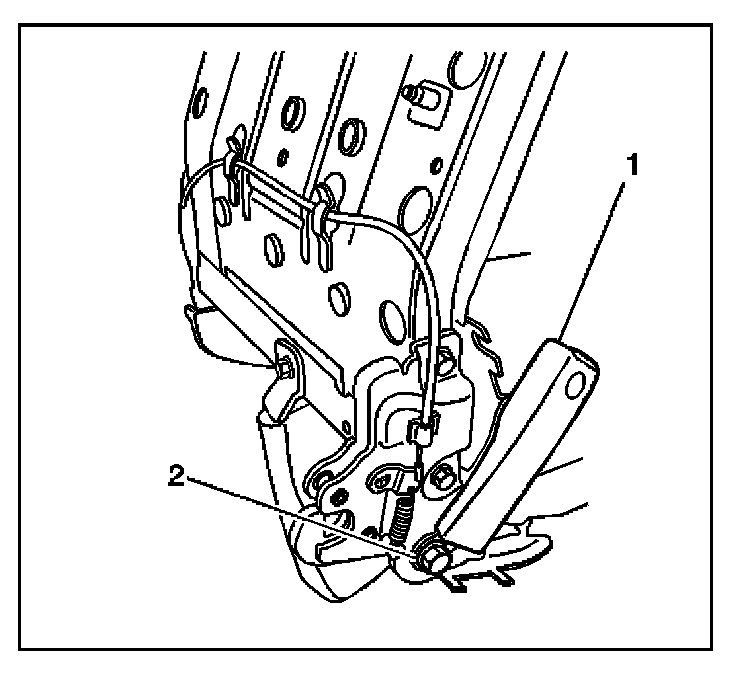

2. Remove the seat belt side buckle nut (2).
3. Remove the seat belt side buckle (1) from the seat.
Installation Procedure
NOTE: Refer to Fastener Notice in Cautions and Notices.

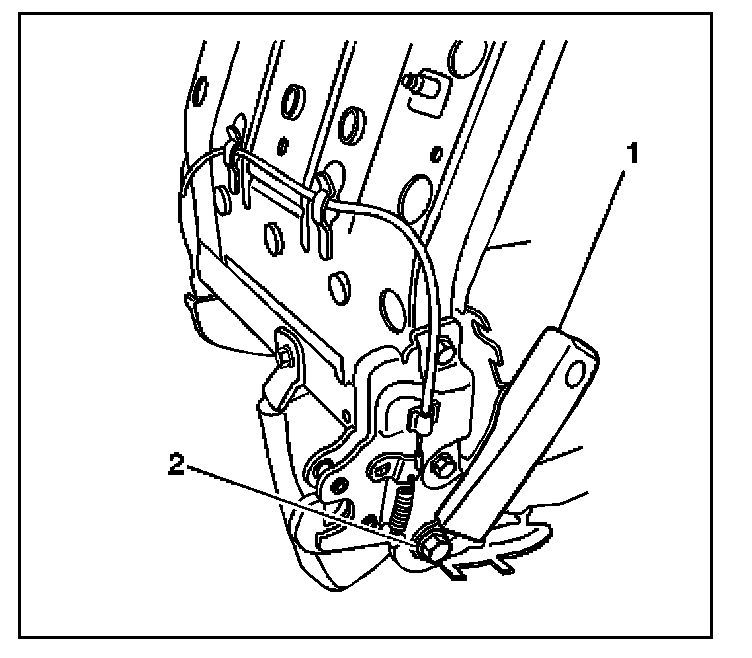

1. Install the seat belt side buckle (1) to the seat with the seat belt anchor nut (2).
Tighten: Tighten the seat belt side buckle nut to 55 Nm (40 lb ft).
2. Install the inboard rear seat back cushion latch cover with 3 screws.
Tighten: Tighten the rear seat back cushion latch cover screws to 2 Nm (18 lb in).
