Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Cylinder Head - Intake Manifold Deck View

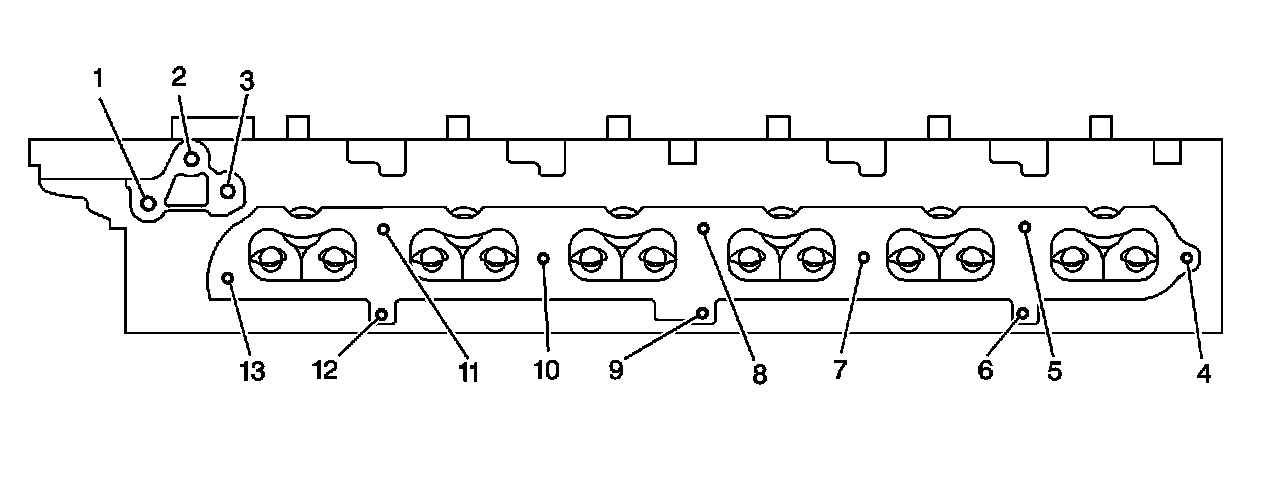

Cylinder Head - Intake Manifold Deck View

Cylinder Head - Intake Manifold Deck View
