Disconnection/Connection
Battery Negative Cable Disconnect/Connect ProcedureDisconnecting Procedure
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
1. Record all preset and theft codes from the radio.
2. Turn the ignition switch to the LOCK position.
3. Verify that all the electrical components are off such as interior lights, all doors are closed, the underhood lamp, etc.

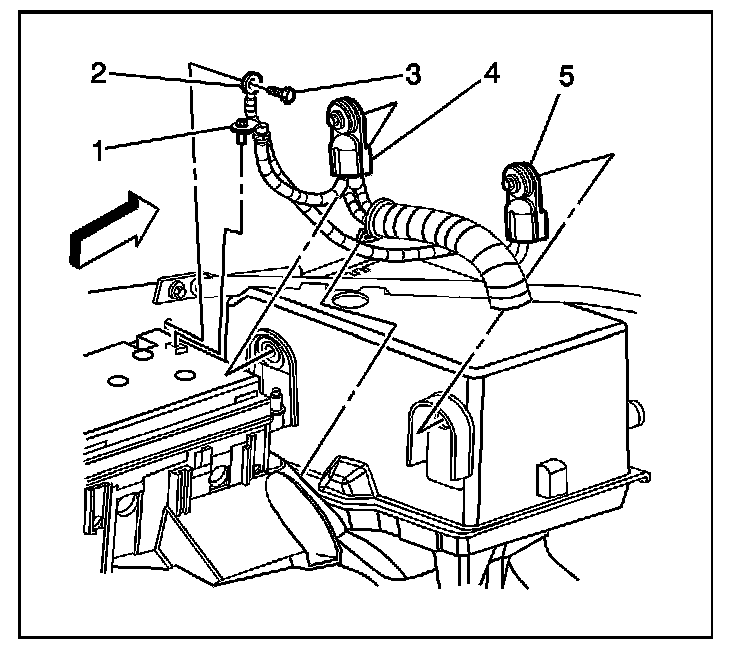

4. Loosen the negative battery cable bolt.
5. Remove the negative battery cable from the battery.
6. Position the negative battery cable away from any body ground.
Connecting Procedure
1. Verify that all electrical components are off such as interior lights, all doors are closed, the underhood lamp, etc.
2. Clean any corrosion from the negative battery cable using a wire brush.

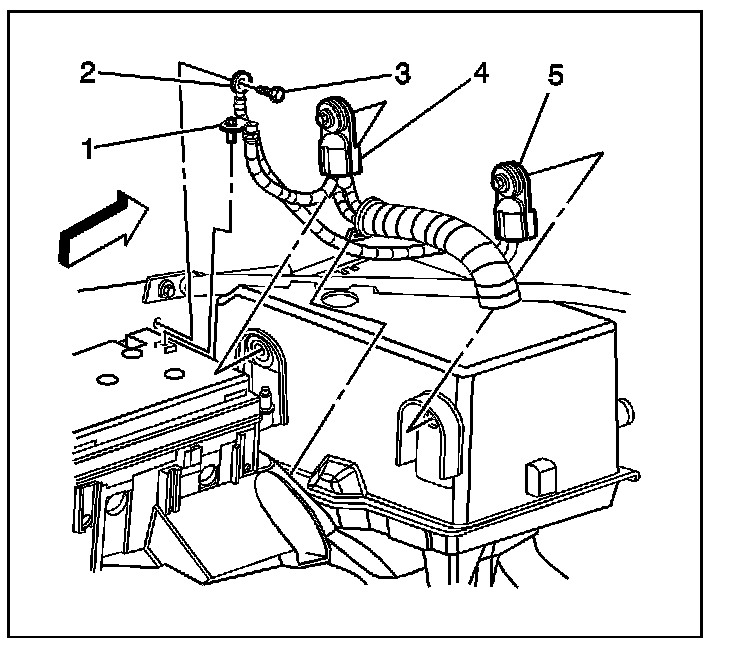

3. Position the negative battery cable to the battery.
NOTE: Refer to Fastener Notice in Cautions and Notices.
4. Tighten negative battery cable bolt.
Tighten:
Tighten the bolt to 15 Nm (11 lb ft).
