Diesel Data
: Automotive Repair
Home
>>
Isuzu Truck
>>
2005
>>
Ascender 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Charging System Test
Charging System Test

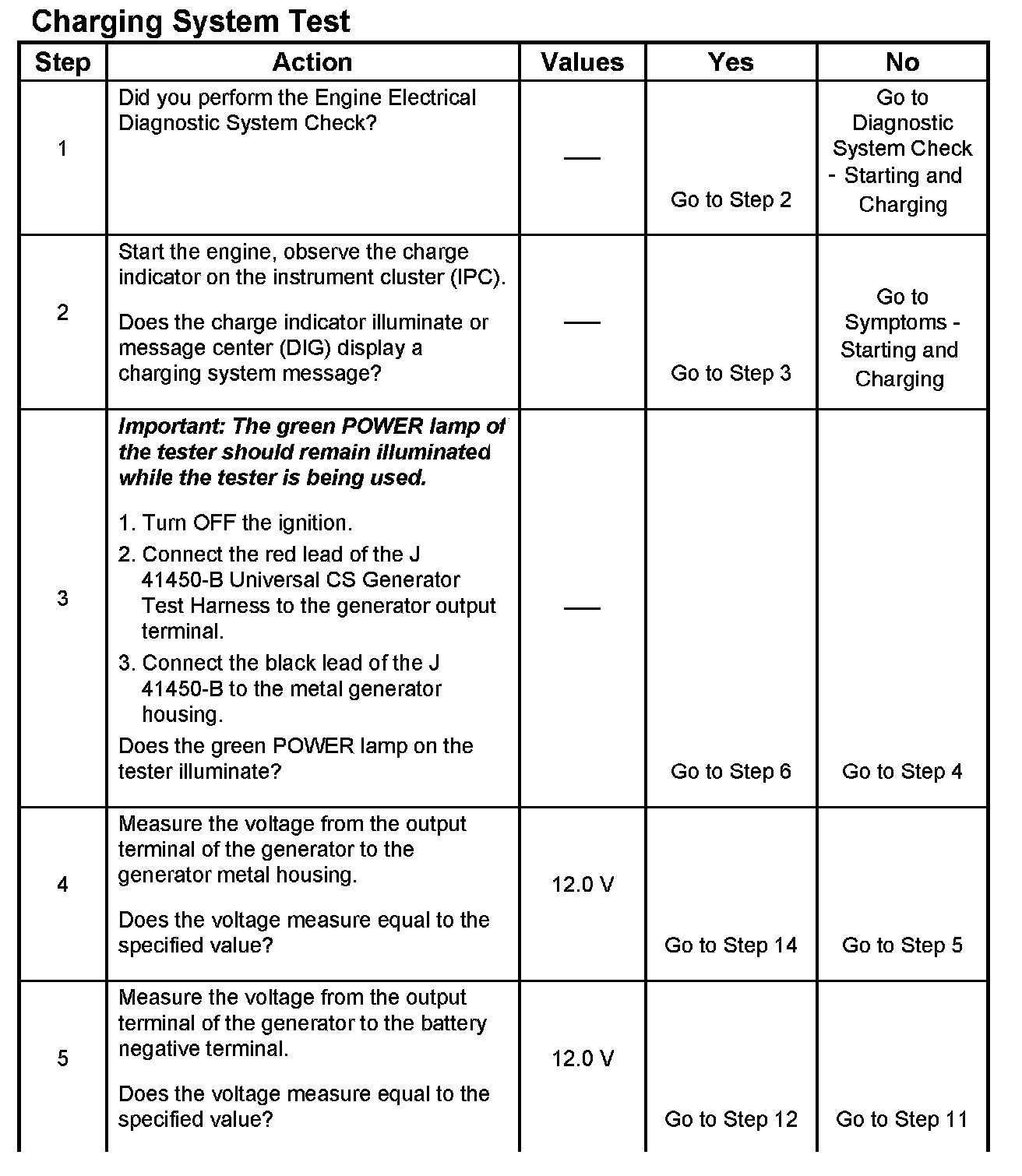

Step 1 - 5:

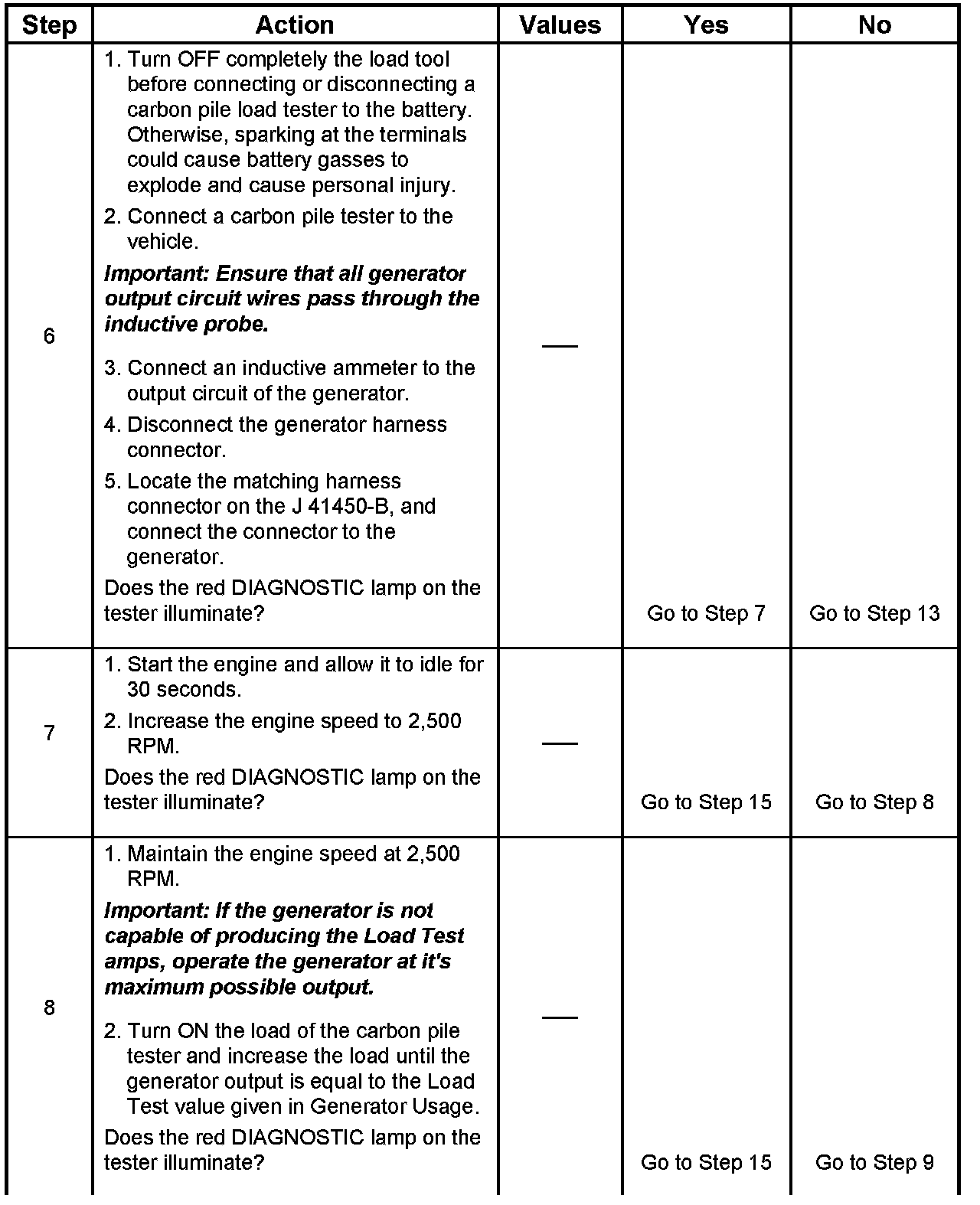

Step 6 - 8:

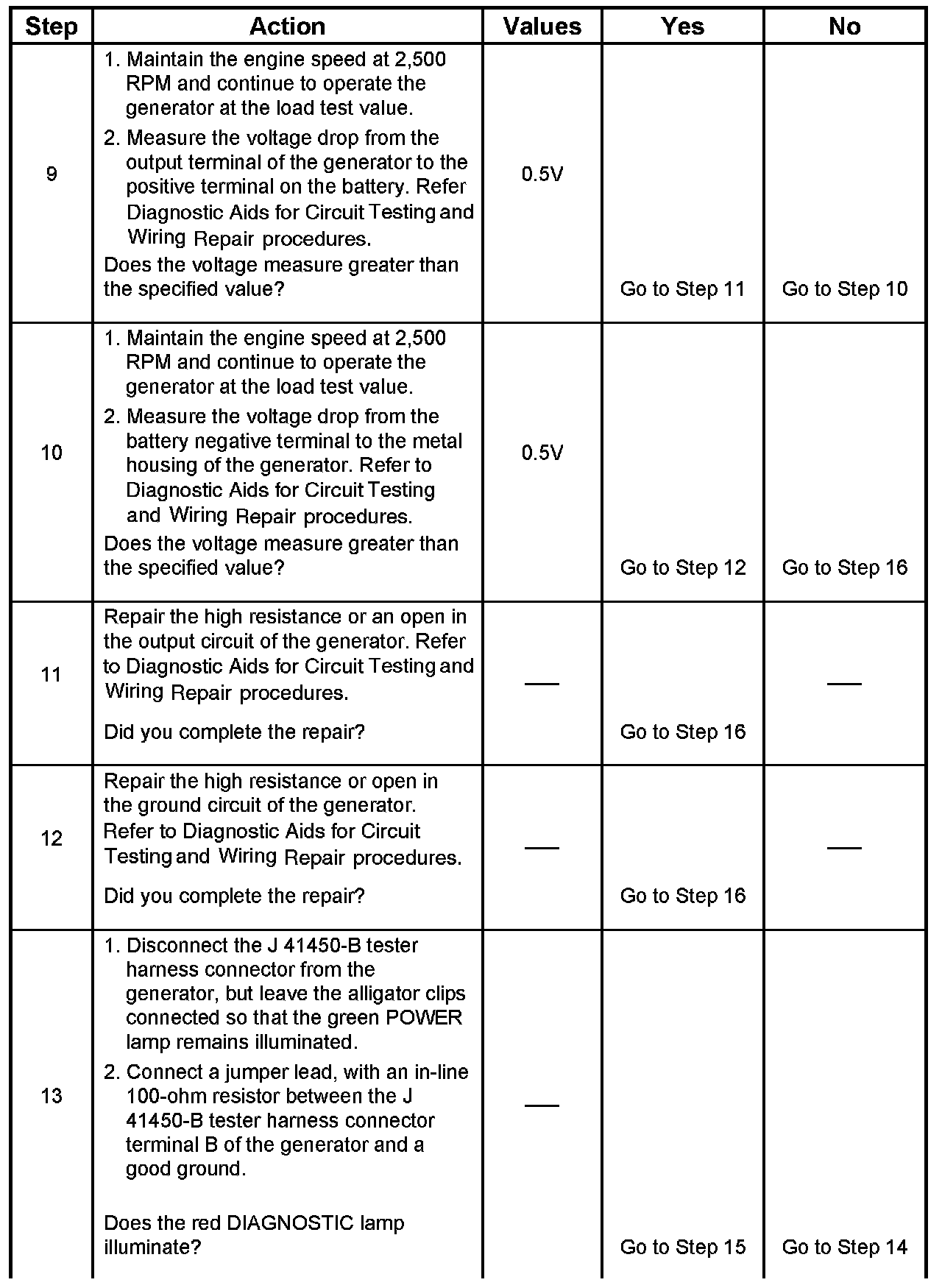

Step 9 - 13:
Step 14 - 16:
