Diesel Data: Automotive Repair

Home >> Isuzu Truck >> 2005 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click

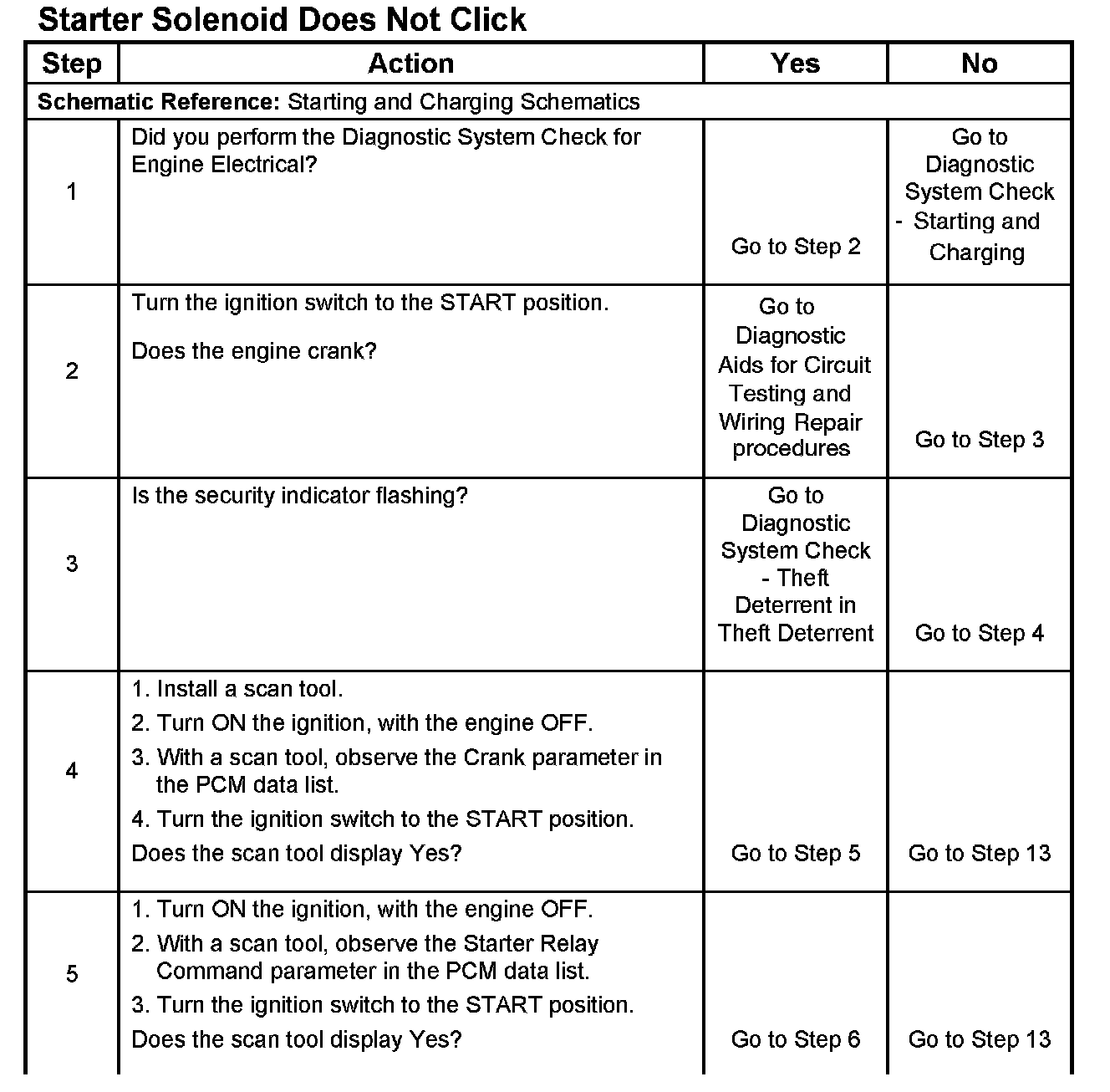

Step 1 - 5:

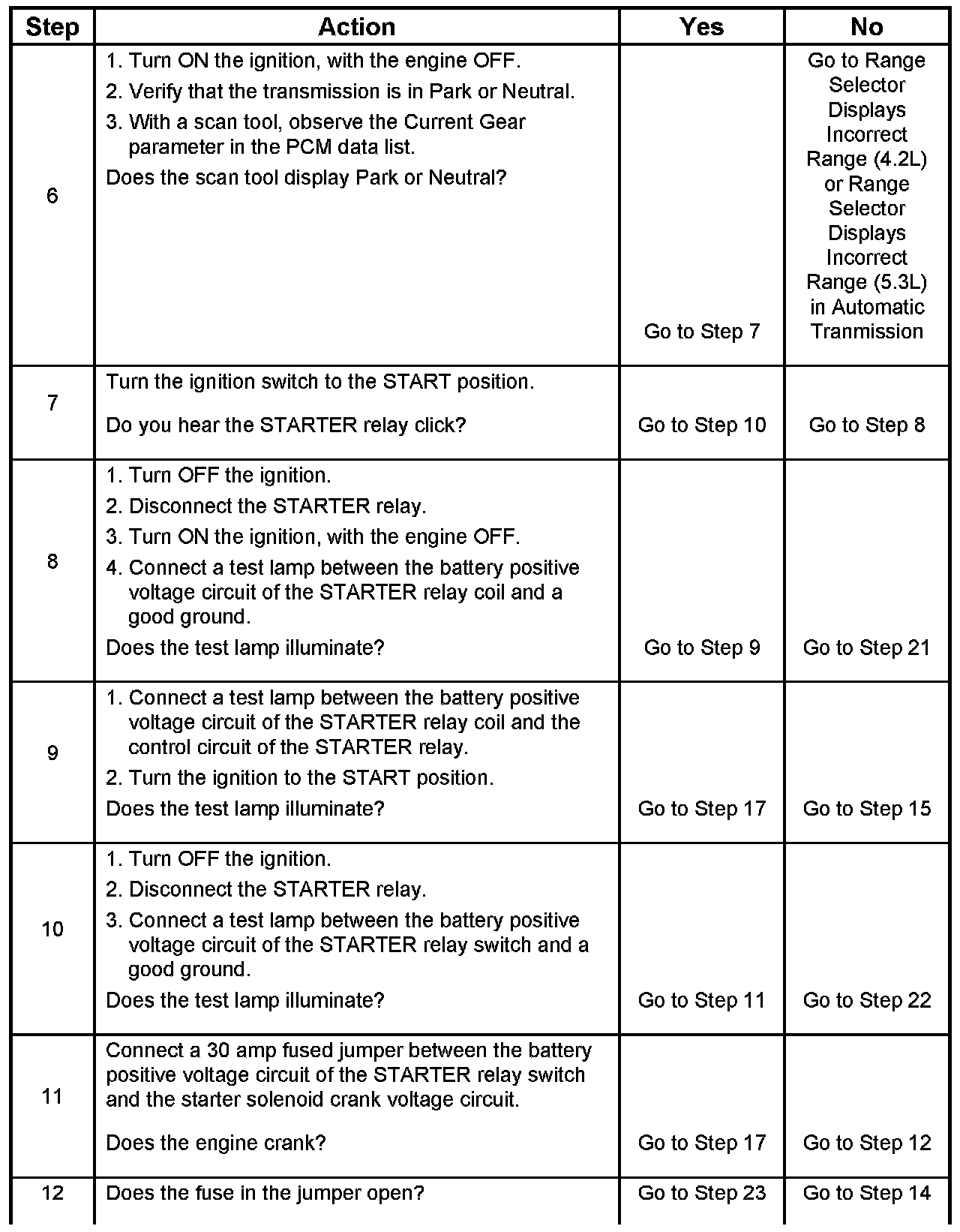

Step 6 - 12:

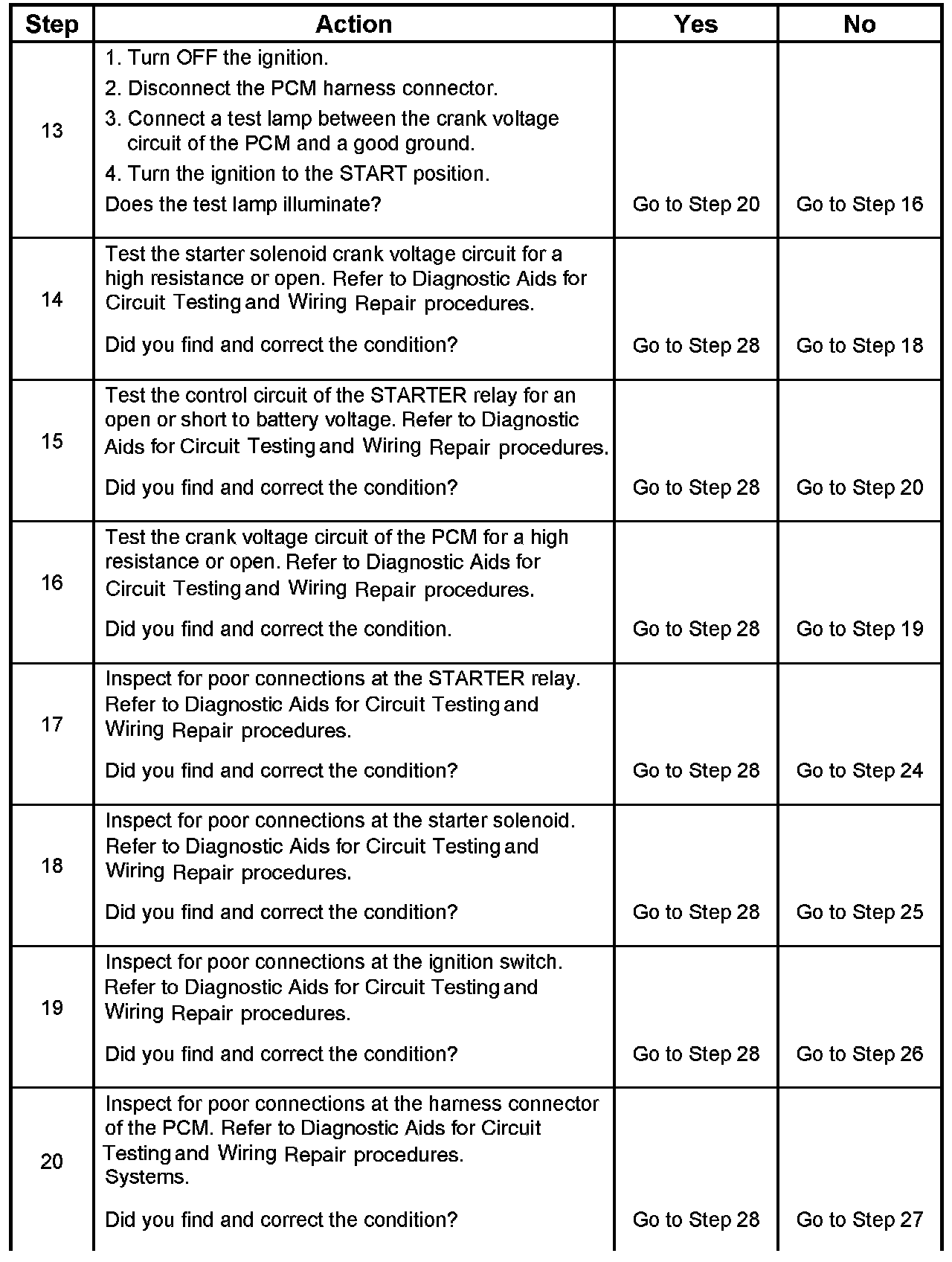

Step 13 - 20:

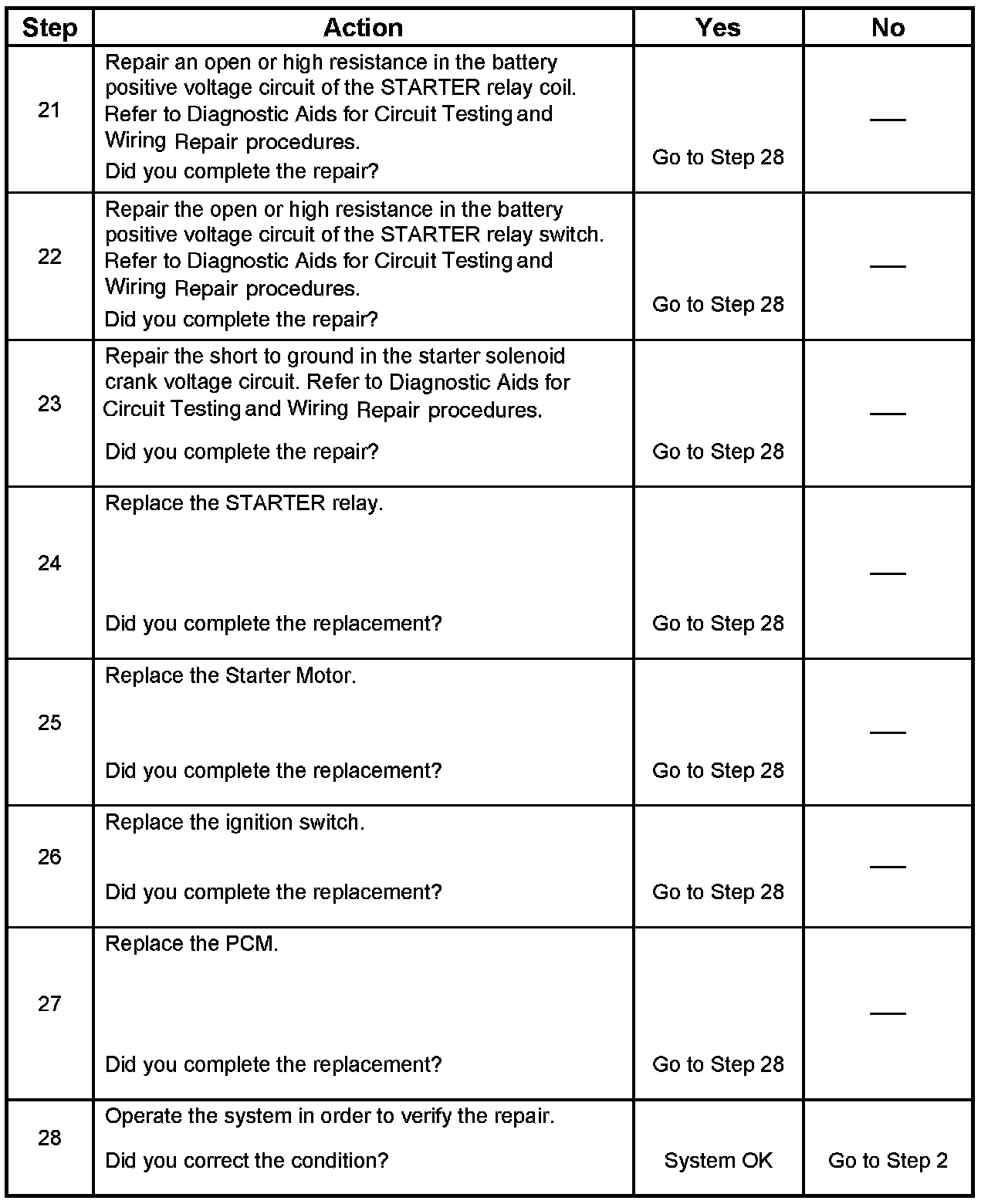

Step 21 - 28:
