Tilt Wheel Handle: Service and Repair

Tilt Lever Replacement

Removal Procedure

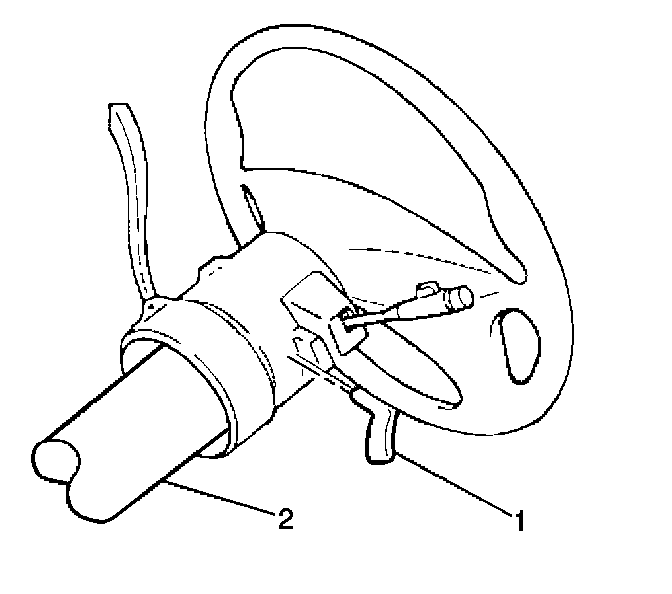

Pull the tilt steering column lever (1) out from the steering column (2).

Installation Procedure

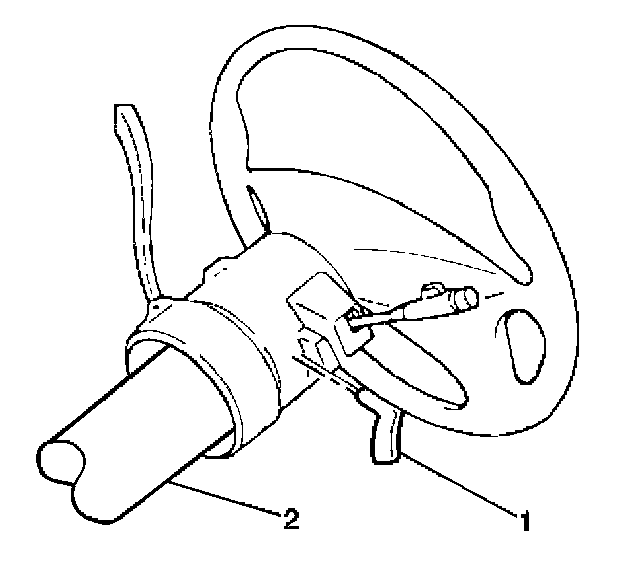

Align the tilt steering column lever (1) and push the lever into the steering column (2).
