Tie Rod End: Service and Repair

Tie Rod End Replacement- Outer

Tools Required

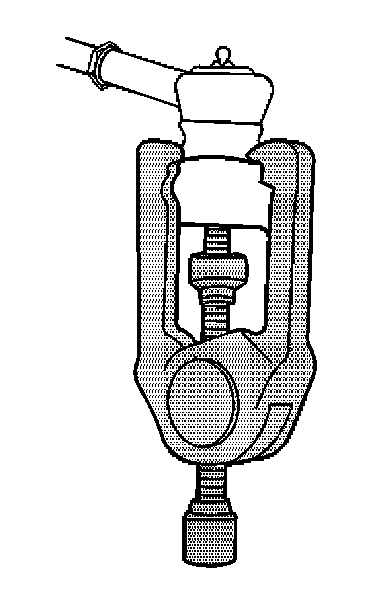

J 2431 9-B Steering Linkage and Tie Rod Puller

Removal Procedure
1. Raise and support the vehicle.
2. Remove the tire and wheel.





3. Remove the outer tie rod retaining nut.

Notice: Do not attempt disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint





4. Disconnect the outer tie rod from the steering knuckle using J 2431 9-B.

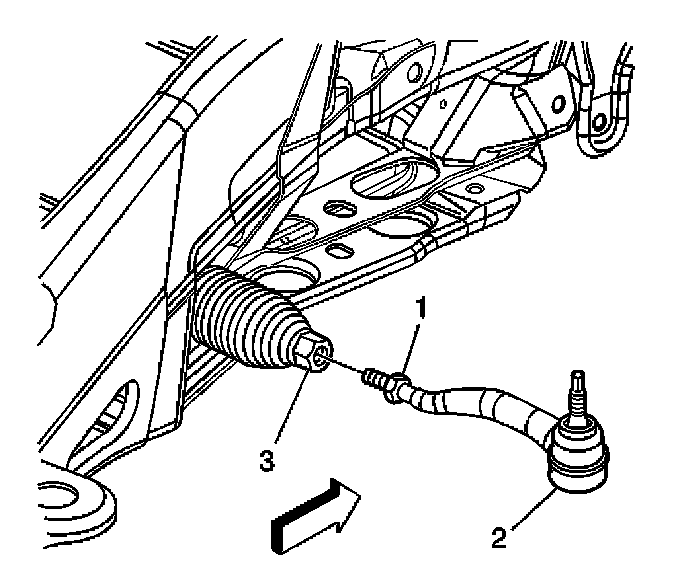

5. Loosen the jam nut (1) and remove the outer tie rod (2) from the inner tie rod (3). Do not reuse the jam nut.
6. Inspect the shaft for bent or damaged threads.





7. Clean the tapered surface of the steering knuckle.

Installation Procedure

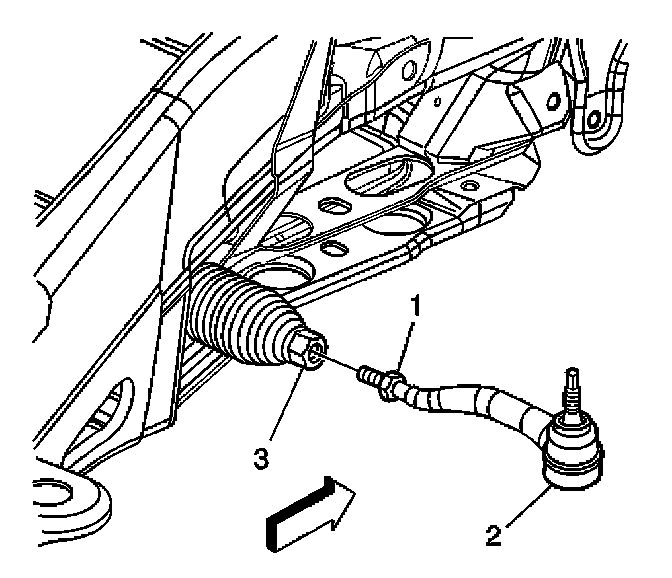

1. Lubricate the inner tie rod (3) threads with a suitable chassis lubricant before installing the outer tie rod (2).

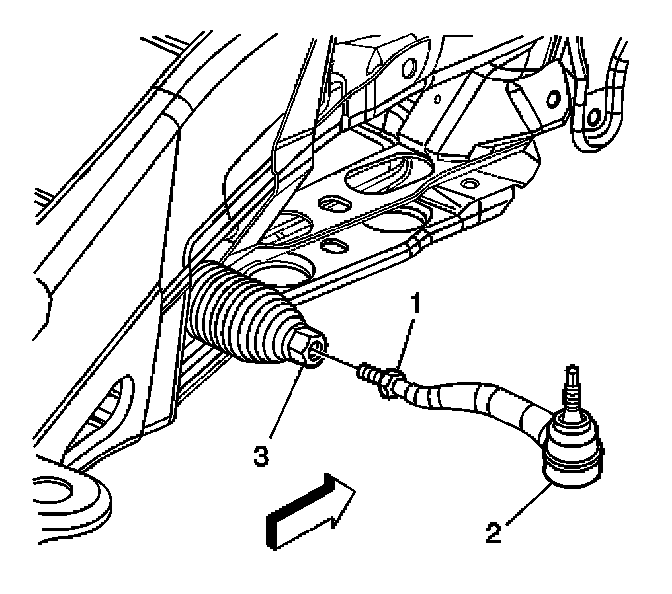

2. Install the new jam nut (1 ) to the outer tie rod (2).





3. Install the outer tie rod (2) to the inner tie rod (3).

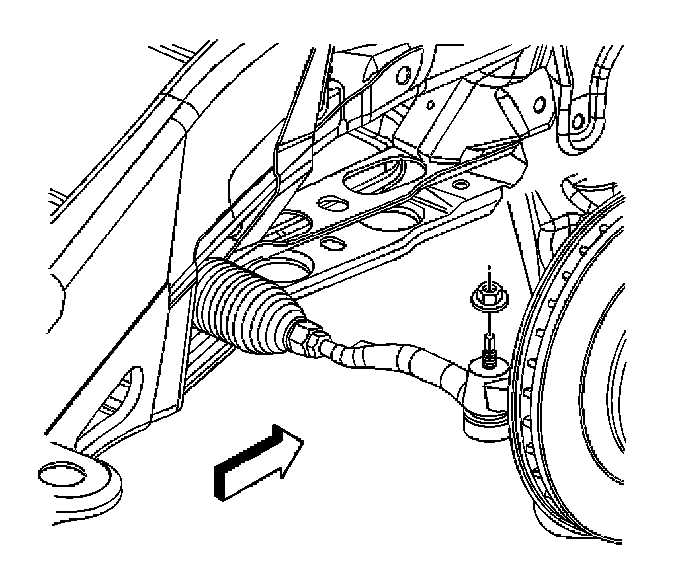

4. Install the outer tie rod to the steering knuckle.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the outer tie rod retaining nut.
^ Tighten the outer tie rod retaining nut to 45 Nm (33 ft. lbs.).
6. Install the tire and wheel.
7. Lower the vehicle.





8. Adjust the front toe.
