Isuzu Truck
>>
2005
>>
Ascender 4WD L6-4.2L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
>>
Case and Associated Parts
Case and Associated Parts
Case and Associated Parts

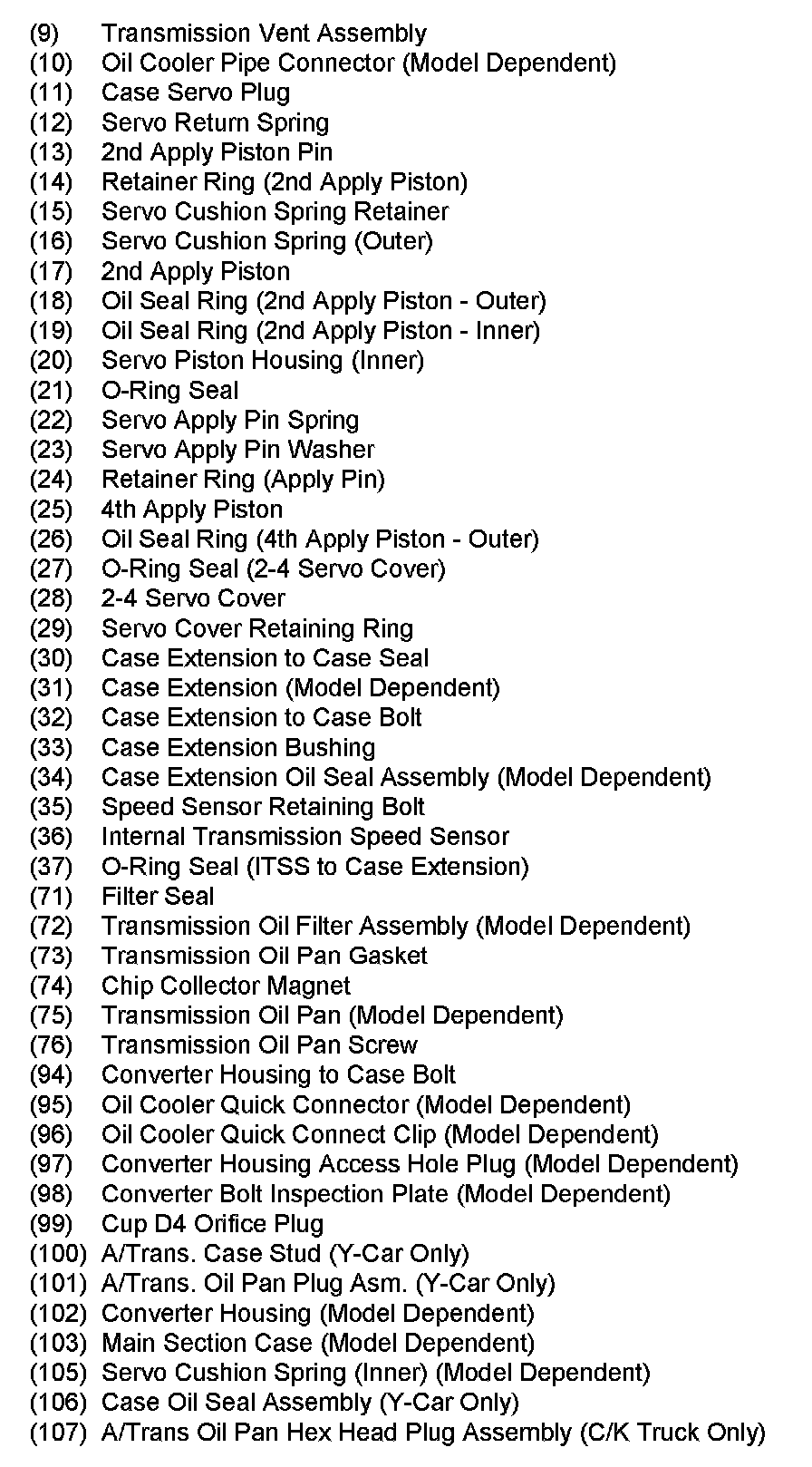

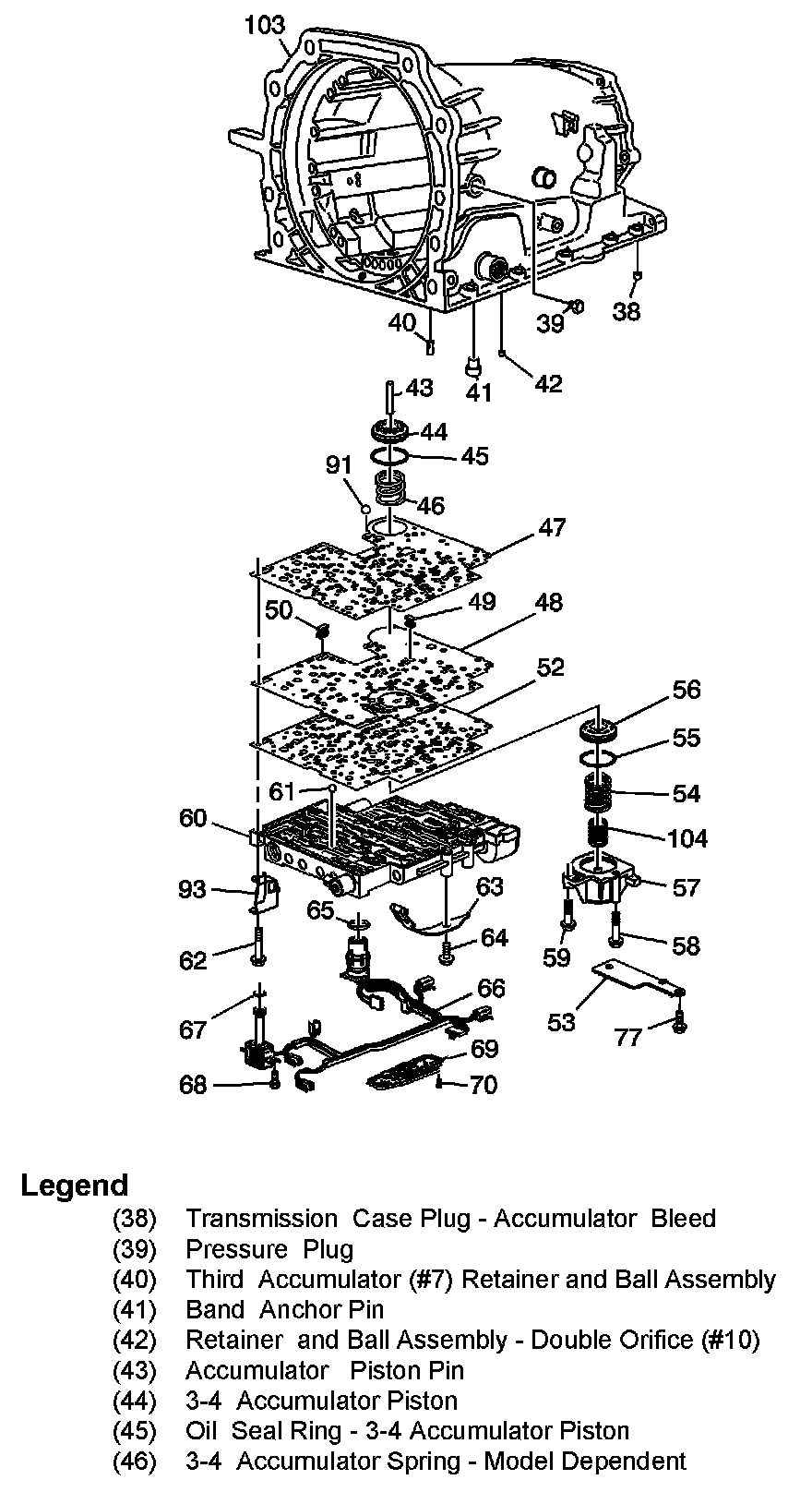

Case and Associated Parts (1 of 2):
Case and Associated Parts (1 of 2):

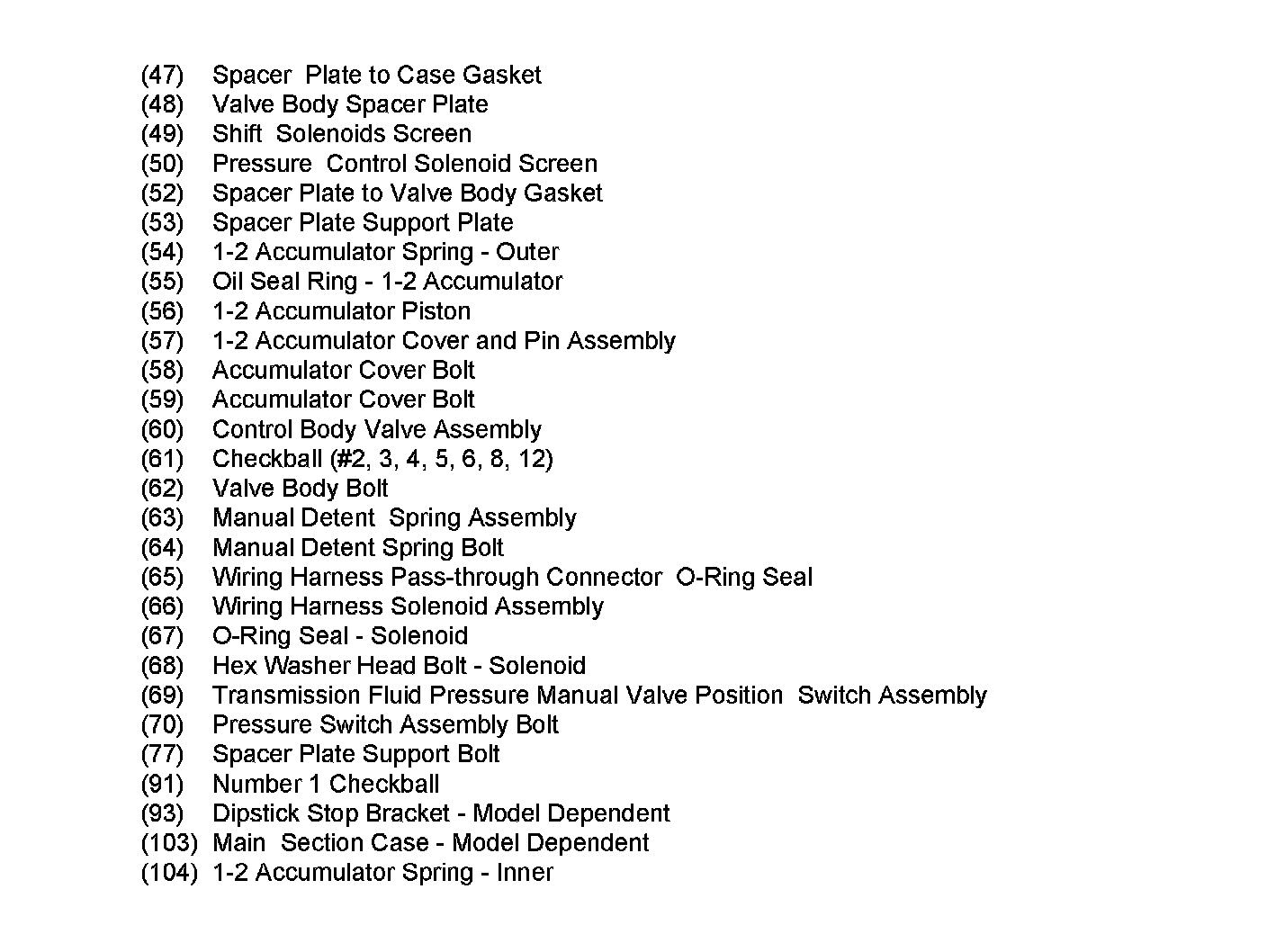

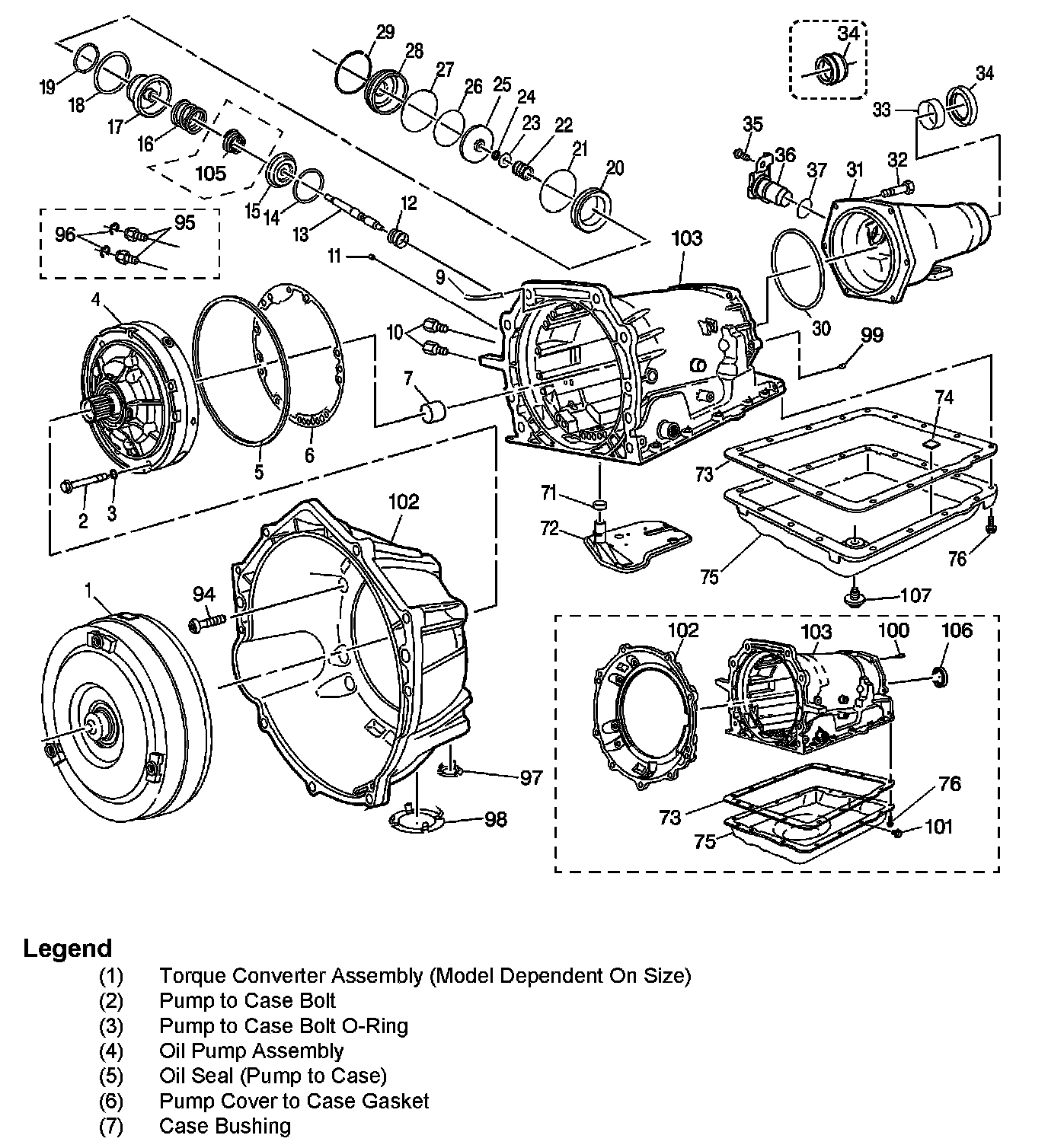

Case and Associated Parts (2 of 2):
Case and Associated Parts (2 of 2):
