Intermediate Shaft Bearing Assembly Oil Seal Replacement
Intermediate Shaft Bearing Assembly Oil Seal ReplacementTools Required
^ J2619-01 Slide Hammer with Adapter
^ J29369-2 Bushing and Bearing Remover (2-3 inch)
^ J45225 Axle Seal Installer
^ J45359 Axle Seal Installer
^ J6125-B Slide Hammer
^ J8092 Universal Driver Handle % in - 10
Removal Procedure
1. Raise the vehicle.
2. Remove the right wheel drive shaft.

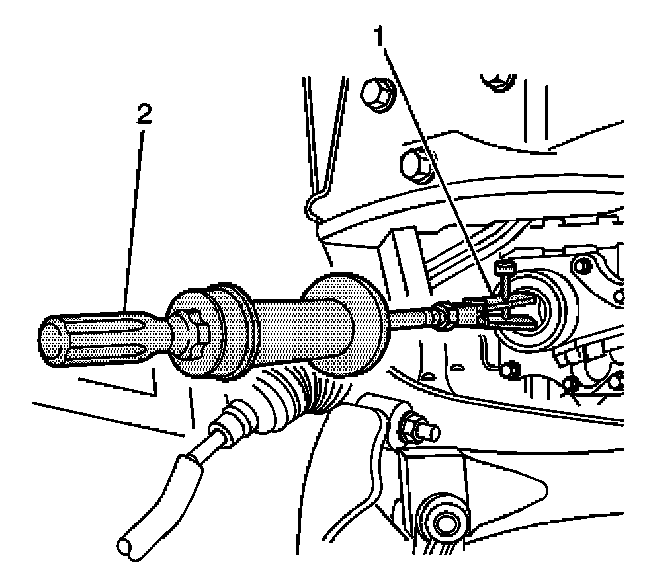

3. Install the J29369-2 (1) and the J6125-B (2) into the outboard, wheel drive shaft side, oil seal as shown.
4. Remove the outboard, wheel drive shaft side, inner shaft seal by pulling on the J6125-B (2).
5. To replace the inboard, oil pan side side, inner shaft seal, remove the intermediate shaft bearing assembly.
6. Install the intermediate shaft bearing assembly into a vise. Place shop towels in the vise in order to protect the intermediate shaft bearing assembly.

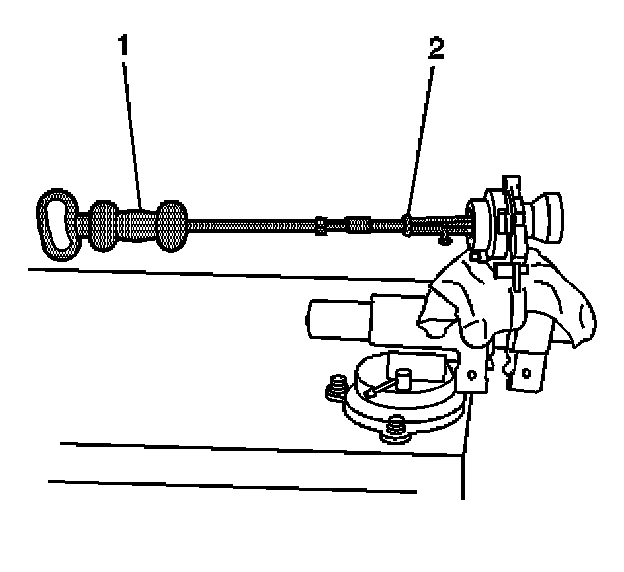

7. Install the J29369-2 (2) and the J2619-01 (1) into the inboard, oil pan side, oil seal as shown.
8. Remove the inboard, oil pan side, seal by pulling on the J2619-01 W.
Installation Procedure

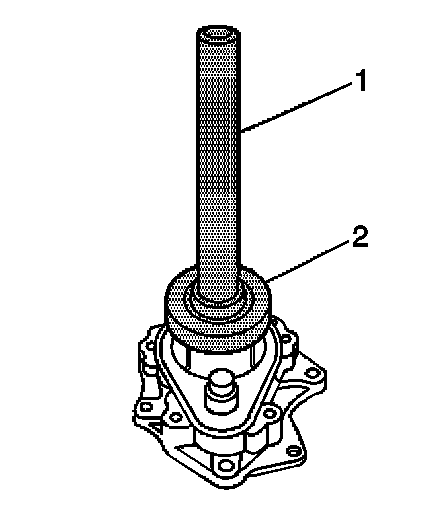

1. Install the new inboard, oil pan side, inner shaft seal on top of the seal bore.
2. Install the new seal using the J45225 (2) and the J8092(1).
3. Install the intermediate shaft bearing assembly.
Notice: The outboard intermediate shaft bearing assembly seal must be installed 0.9 - 1.1 mm (0.035 - 0.043 inch) below the surface of the intermediate shaft bearing assembly housing bore. If the seal is not installed properly, damage to the seal may occur.
4. Install the new oil seal using the J45359 (2) and the J8092(1).
5. Install the right wheel drive shaft.
6. Lower the vehicle.
