Differential Carrier Assy Oil Seal and/or Bearing Replacement

Differential Carrier Assembly Oil Seal and/or Bearing Replacement

Tools Required
^ J2619-01 Slide Hammer with Adapter
^ J29369-1 Bushing and Bearing Remover
^ J29369-2 Bushing and Bearing Remover (2-3 inch)
^ J45232 Differential Bearing Adjuster Needle Bearing Installer-LH
^ J45233 Differential Bearing Adjuster Needle Bearing Installer-RH
^ J45225 Axle Seal Installer
^ J6125-B Slide Hammer

Removal Procedure

Important: The seals used in the differential carrier assembly have built in tabs that are used to retain the position of the differential side bearing adjusters. When removing the seal, do not twist or rotate the seal or the preload on the differential case side bearings may be affected.

1. Raise the vehicle.
2. Drain the lubricant from the differential carrier assembly.
3. Remove the left wheel drive shaft.





4. Install the J6125-B (2) and the J29369-2 (1) onto the backside of the seal as shown.
5. Remove the seal by pulling on the J6125-B (1).
6. Place an alignment mark between the differential bearing adjuster and the differential carrier assembly case.
7. Install the J6125-B and the J29369-2 onto the backside of the bearing cage.
8. Remove the bearing by pulling on the J6125-B.
9. Remove the differential carrier assembly.

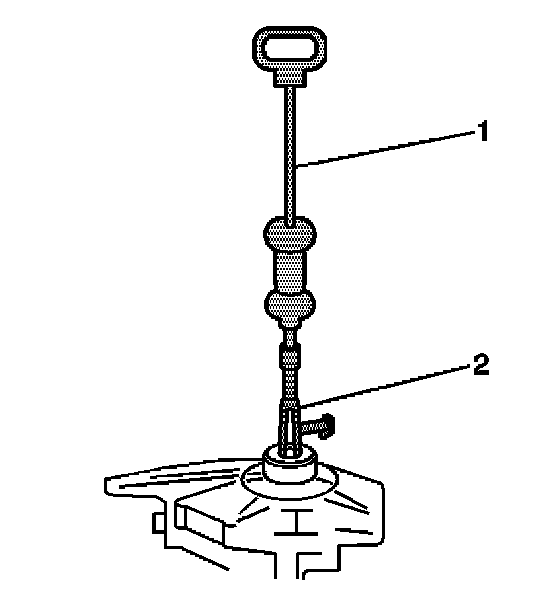

10. Install the J29369-1 (2) and the J2619-01 (1) onto the backside of the seal as shown.
11. Remove the seal by pulling on the J2619-01 (1).
12. Place an alignment mark between the differential bearing adjuster and the differential carrier assembly case.
13. Install the J6125-B and the J29369-2 onto the backside of the bearing cage.
14. Remove the bearing by pulling on the J6125-B.

Installation Procedure

Important: The seals used in the differential carrier assembly have built in tabs that are used to retain the position of the differential side bearing adjusters. When installing the seal, it is not necessary to align the tabs to the slots on the differential side bearing adjuster. Two of the tabs on the seal will automatically align themselves with the slots on the differential side bearing adjuster when the seal is installed.

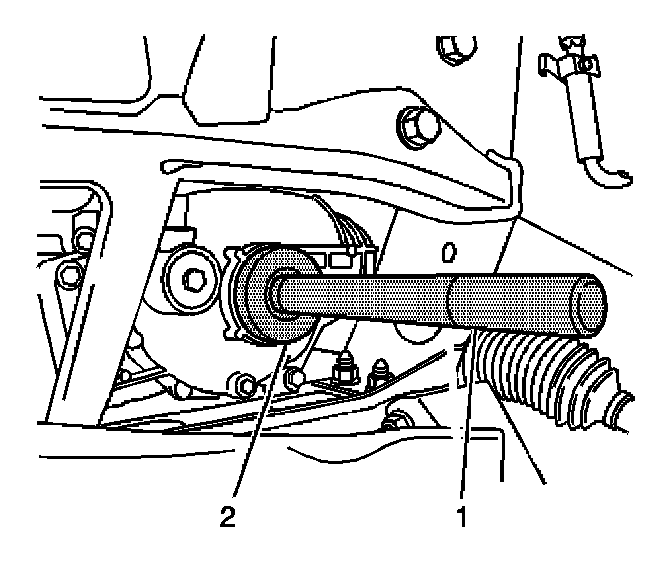

1. Install the bearing (print side out) using the J45233 (2) and the J8092 (1).
2. Inspect the alignment between the differential bearing adjuster and the differential carrier assembly case. If the line between the differential bearing adjuster and the differential carrier assembly case is not aligned, re-align the 2 components as necessary.





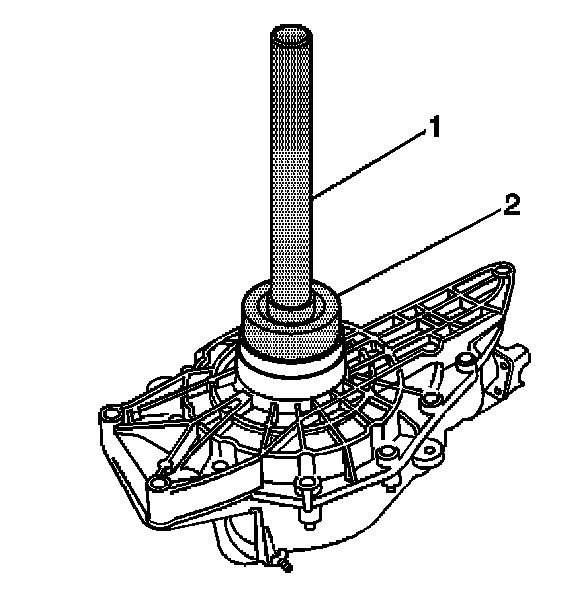

3. Install the new inner shaft seal using the J45225 (2) and the J8092(1).
4. Install the differential carrier assembly.

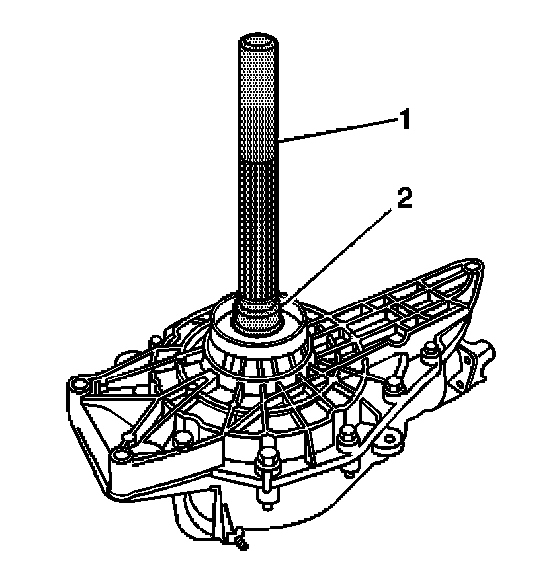

5. Install the bearing (print side out) using the J45232 (2) and the J8092 (1).
6. Inspect the alignment mark between the differential bearing adjuster and the differential carrier assembly case. If the line between the differential bearing adjuster and the differential carrier assembly case is not aligned, re-align the 2 components as necessary.





7. Install the new inner shaft seal using the J45225 (2) and the J8092 (1).
8. Install the left wheel drive shaft.
9. Fill the differential carrier assembly with axle lubricant. Use the proper lubricant.
10. Lower the vehicle.
