Transfer Case Output Shaft Seal Replacement - Front
Transfer Case Output Shaft Seal Replacement - FrontTools Required

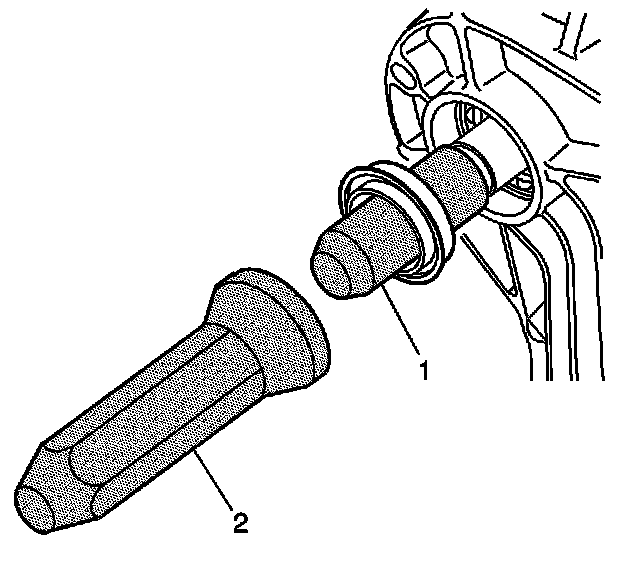

^ J45236 Output Shaft Seal Installer- Front
Removal Procedure
1. Raise the vehicle.
2. Remove the transfer case shield, if equipped.
3. Remove the front propeller shaft.

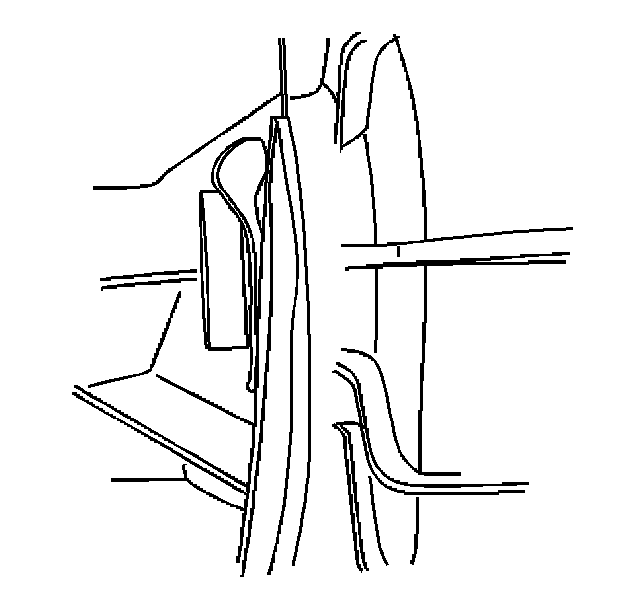

4. Remove the dust shield from the front output shaft.

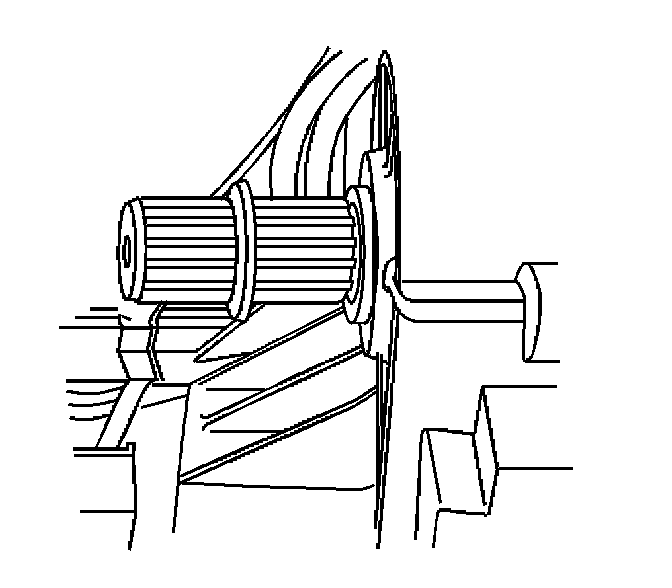

5. Lightly tap the screw driver around the edge of the front output shaft seal.

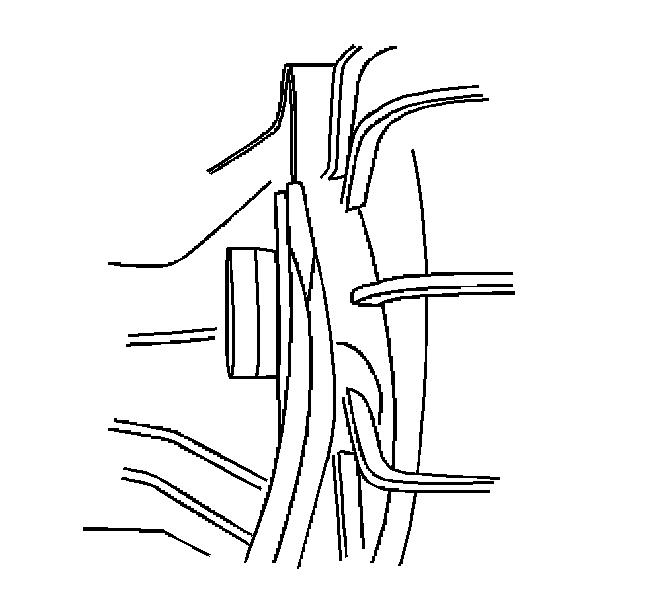

6. Pry the front out shaft seal from the transfer case.
7. Remove the front output shaft seal from the transfer case.
Installation Procedure

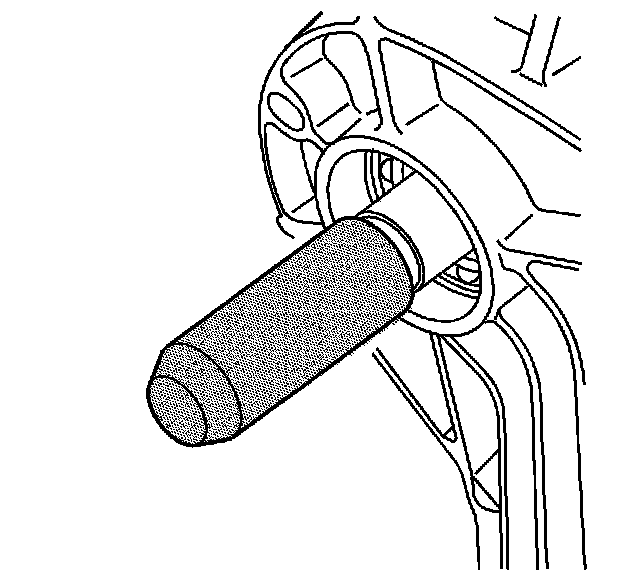

1. Install the J45236 on the front output shaft.

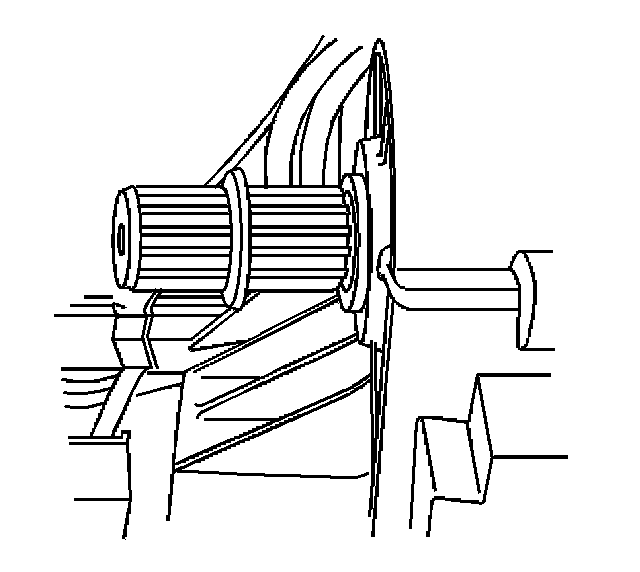

2. Align the front output shaft seal on the J45236-2(1).

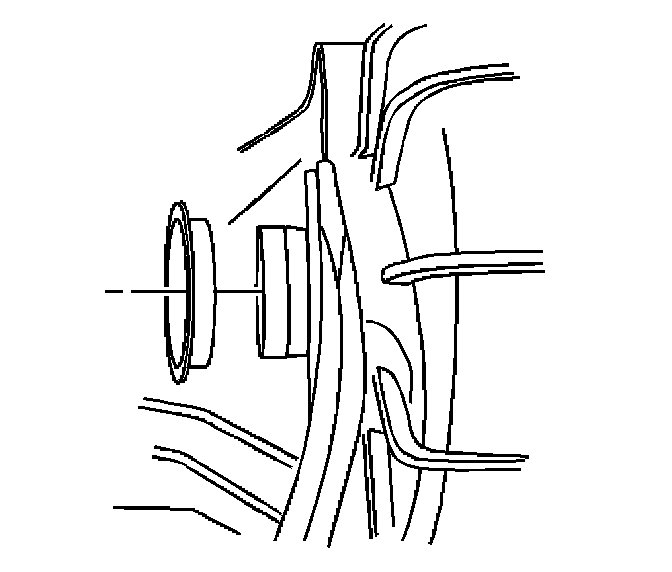

3. Using the J45236-1 (2), install the front output shaft seal.
4. Remove the J45236-1 and the J45236-2.
5. Install the dust shield on the front output shaft.
6. Install the front propeller shaft.
7. Inspect the transfer case fluid level.
8. Install the transfer case shield, if equipped.
9. Lower the vehicle.
